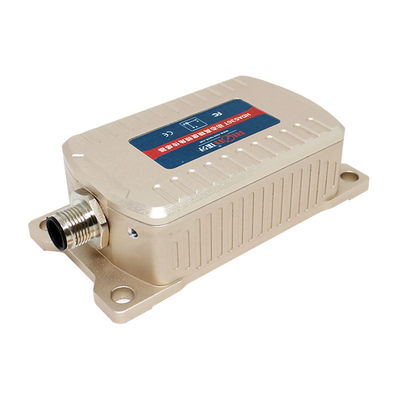

HDA436T,A new generation of digital MEMS dynamic tilt sensor launched by RION Technology. It can measure the attitude parameters (roll, pitch, and azimuth) of a moving carrier, and suitable for tilt angle measurement under motion or vibration.
HDA436T has a built-in high-precision acceleration and gyro sensor, and integrates the Carman filter algorithm, which can measure the real-time motion data of the carrier under motion or vibration. The signal output modes such as RS485 / 232 / TTL are optional, and the scalability is strong.
This product adopts non-contact measuring principle, which can output the current attitude and inclination in real time. It is simple to use and does not need to retrieve the relative changes of the two surfaces.
Internally integrated high-precision AD and high-precision gyro units to compensate for non-linear, orthogonal coupling, temperature drift and centrifugal acceleration in real time; greatly eliminate centrifugal errors caused by motion acceleration interference, improve product dynamic measurement accuracy; adapt to long-term complex movements Work in places and harsh environments.
The product is a dynamic and static dual-mode measurement sensor with strong resistance to external electromagnetic interference. It is an ideal choice for industrial automation control and military-civilian dual-use measurement posture.
▶ KEY FEATURES
★ Range (Roll angle ± 180 °, pitch angle ± 90 °, azimuth angle ± 180 °) ★ Dynamic accuracy: ± 0.3 ° ★ DC 9~6V wide voltage input ★ Wide temperature operation -40~+ 85 ℃
★ Resolution 0.01 ° ★ IP67 protection level
★ High anti-vibration performance> 2000g ★ Size: L72× W47× H22.5mm
▶ PRODUCT APPLICATION
★ Railway locomotive monitoring ★ Oil drilling equipment
★ Shield pipe jacking application ★ Geological equipment tilt monitoring
★ Underground drilling rig attitude navigation ★ Ship navigation attitude measurement ★ Shield pipe jacking application ★ Satellite communication vehicle attitude detection
★ Orientation measurement based on inclination angle
★ Various engineering machinery inclination measurement
||Roll ± 180 °, pitch ± 90 °, azimuth ± 180 ° (initial value at power-down is 0 °)
||X axis / Y axis / Z axis
|Static accuracy (RMS)
|Dynamic accuracy (RMS)
|Bias Instability (Allan)
|Zero point temp. coefficient
|Sensitivity temp. coefficient
|Power-on startup time
||According to EN61000 and GBT17626
||≥ 50000 hours / time
||100g @ 11ms,3 axial direction (half sinusoid)
||Standard without wiring, optional 2m M12 aviation plug with PVC unshielded cable
||152g (Without cable)
