▶ FEATURE
★ Horizontal azimuth and attitude angle output ★ Real-time angular rate output
★ Long life and strong stability ★ Forward axis acceleration
★ Compact and lightweight design ★ RS232/RS485 output optional
★ All solid state ★ Light weight ★ DC9~36V power supply
▶APPLICATION
★ Automated agricultural machinery ★ Precision agriculture
★ Combination Harvesters ★ Farming machine
▶ PRODUCT DESCRIPTION

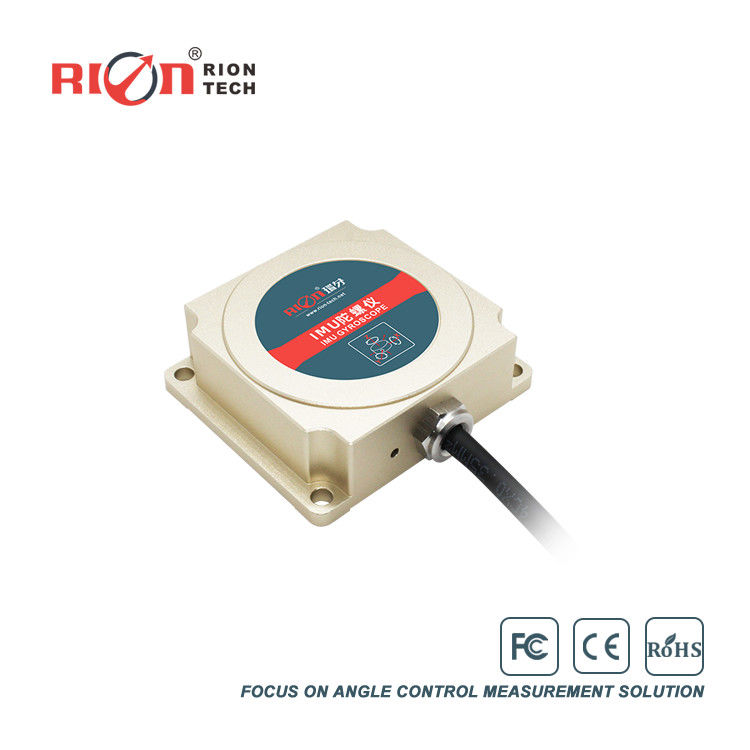

TL725D is a gyroscope IMU specialized in navigation applications for agricultural machinery automatic driving, with built-in industrial grade three-axis gyroscope and three-axis accelerometer. The product can still output smooth posture data under the high vibration characteristics of agricultural machinery. Developed based on the company's latest MEMS inertial measurement platform, through the dynamic attitude algorithm of the angular rate of the gyroscope, the real-time output of the object's dynamic inclination angle, horizontal azimuth angle, three-axis angular rate, three-axis acceleration and forward axial body acceleration data . This product is specially used for automated agricultural machinery, precise operation and efficiency, and is an essential component of a new generation of automated precision agricultural control.
| TL725D | PARAMETERS | |
| Three-axis attitude | Azimuth ±180°,Roll angle±180°,Pitch angle±90 | |
| Bandwidth | >100Hz | |
| Resolution | 0.01° | |
| Nonlinear | 0.1% of FS | |
| Gyro Range | 300°/s | |
| Zero bias instability of gyro (allan) | 4.0°/h | |
| Angle random walk coefficient (allan) | 0.25 °/sqrt(h) | |
| Accelerometer range | ±4g | |
| Acceleration resolution | 0.001g | |
| Acceleration accuracy | 1mg | |
| Startup time | 250ms | |
| Input voltage | +9~36V | |
| Current | 35mA(12V) | |
| Working temp | -40 ~ +80℃ | |
| Storage temp | -40 ~ +85℃ | |
| Vibration | 5g~10g | |
| Shock | 200g pk,2ms,½sine | |
| Working life | 10 Year | |
| Output frequency | 5Hz / 15Hz / 25Hz / 35Hz / 50Hz / 100Hz Settable | |
| Output signal | RS232 / RS485 / (Optional) | |
| MTBF | ≥50000 Hours/times | |
| Insulation resistance | ≥100MΩ | |
| Shockproof | 100g@11ms,3 Axial Direction (Half Sinusoid) | |
| Anti-vibration | 10grms,10～1000Hz | |
| Protection grade | IP67 | |
| Cable | Standard 1 m 4 pin shield wire | |
| Weight | 140g(without cable) | |
