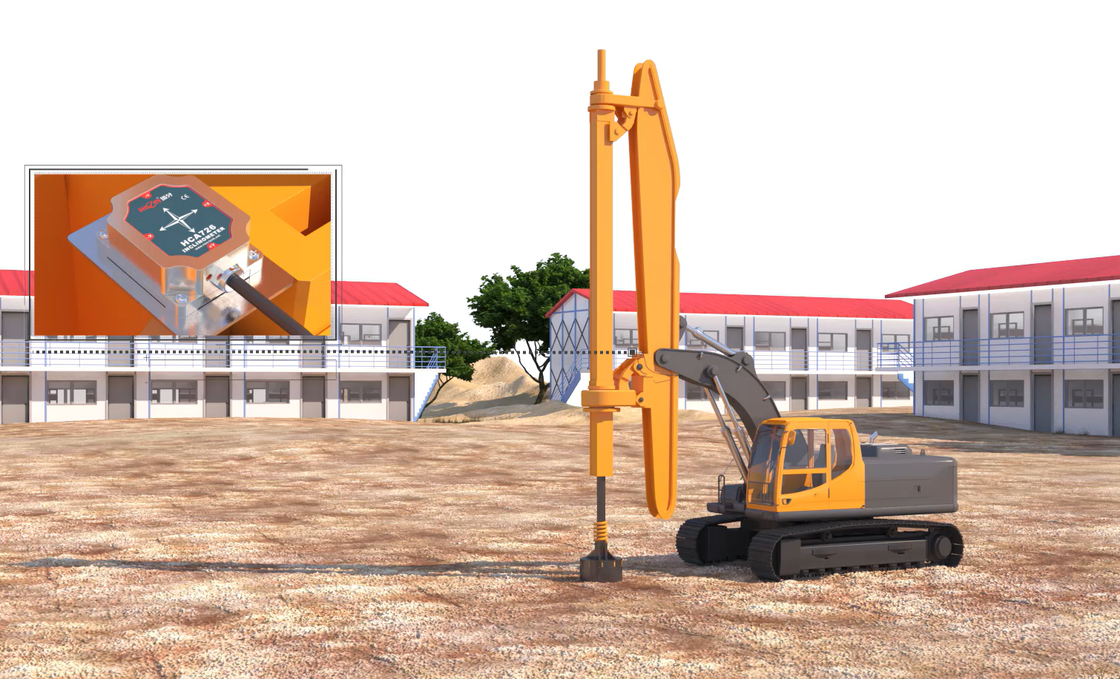

HCA716S/HCA726S High-Precision Inclinometer for Rotary Drilling Rig Verticality Measurement

Name: HCA716S/HCA726S High-Precision Inclinometer for Rotary Drilling Rig Verticality Measurement
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: HCA726
Price: 5.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Rion

Certification: CE, ISO,ROHS

Model Number: HCA726

Document: HCA716 HCA726 FULL TEMPERAT...OR.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $273.00/Pieces 1-9 Pieces

Packaging Details: packing carton

Delivery Time: 7

Payment Terms: T/T

Supply Ability: 5000/month

Get Best Price

Contact Now

Specifications

Description

Ratings & Reviews

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                          HCA716S inclinometer for structural monitoring, HCA726S tilt sensor for ancient buildings, Inclinometer with structural monitoring warranty


Communication Protocol:	68 Protocol / MODBUS RTU Protocol Optional	High Vibration Resistance:	> 100g
Interface:	TTL / RS232 / RS485 Optional	Response Frequency:	20Hz
Weight:	≤150g (including 1 Meter Cable)	Power Supply:	9~36v
Range:	±1 ~ ±180 °

Communication Protocol:	68 Protocol / MODBUS RTU Protocol Optional
High Vibration Resistance:	> 100g
Interface:	TTL / RS232 / RS485 Optional
Response Frequency:	20Hz
Weight:	≤150g (including 1 Meter Cable)
Power Supply:	9~36v
Range:	±1 ~ ±180 °

Description

HCA716S/HCA726S High-Precision Inclinometer for Rotary Drilling Rig Verticality Measurement

APPLICATION

Monitoring of bridges and large lands
Mining machinery, oil drilling equipment
Medical equipment angle control
Railway gauge ruler and gauge leveling
Underground drilling rig attitude navigation
Geological equipment tilt monitoring
Monitoring of ancient buildings and dilapidated buildings

PRODUCTION INSTALLATION NOTES

Please follow the correct way to install tilt sensor, incorrect installation can cause measurement errors, with particular attention to the "surface", "line":

1) The Sensor mounting surface and the measured surface must be fixed closely, smoothly, stability,if mounting surface uneven likely to cause the sensor to measure the angle error.

2) The sensor axis and the measured axis must be parallel ,the two axes do not produce the angle as much as possible.

PRODUCT FEATURES

Single/dual Axis Tilt sensor
Measuring Range :±1~±180° optional
Accuracy: refer to the technical data
Wide voltage input: DC9~36V
Wide temperature working: -40~+85℃
Resolution: 0.001°
IP67 protection class
Highly anti-vibration performance >100g
Direct lead cable interface
Small size : 54*46*20.5mm(customized)

GENERAL DESCRIPTION

HCA716S/HCA726S is a compact high-precision single/dual-axis inclinometer with full-temperature compensation, RS485/RS232 interfaces and a measurement range up to ±180°. With 0.01° full-scale accuracy, it provides stable and reliable tilt measurement for ancient building, historic wall and industrial structural monitoring.

SPECIFICATION

HCA716/726-C1		CONDITION	PARAMETER					UNIT
Measure range			±10	±30	±60	±90	±180	°
Measure axis			X Y	X Y	X Y	X Y	Vertical X axis	axis
Resolution			0.001	0.001	0.001	0.001	0.001	°
Measure accuracy	MAXE	Room temp.	0.008	0.01	0.01	0.02	0.02	°
Measure accuracy	RMSE	Room temp.	0.004	0.005	0.005	0.006	0.006	°
Long temp. stability			<0.02					°
Zero Temp.coefficient		-40~85℃	±0.0005					°/℃
Sensitivity temp-coeffi		-40~85℃	≤0.01					%/℃
Power on time			0.5					S
Response frequency			20					Hz
Interface		CANopen
EMC		According to EN61000 and GBT17626
MTBF		≥98000 Hours/times
Insulation Resistance		≥100M
Shockproof		100g@11ms, 3 Axial Direction (Half Sinusoid)
Anti-vibration		10grms / 10~1000Hz
Protection grade		IP67
Cables		Standard 1M length / wear proof / grease proofing / wide temperature, Shielded cables 4*0.2mm2
Weight		≤150g (including 1 meter cable)
Resolution: Refers to the sensor in measuring range to detect and identify the smallest changed value. MAXE: refers to the biggest error of the product within the range and at multiple angle points. RMSE: refers to the root mean square difference between the measured value and the actual angle of the product within the range and for multiple times (more than 16 times). Zero Temperature Drift Coefficient: the change rate of the indication value relative to normal temperature within the rated operating temperature range of the sensor at the zero degree. Sensitivity Temperature Drift Coefficient: The percentage change rate with temperature of the full-scale indication relative to the full-scale indication at room temperature of the sensor in its rated operating temperature range.

ELECTRICAL CONNECTION

LINE COLOR FUNCTION

BLACK

WHITE

GREEN

RED

GND

Power Negative

CAN_L

CAN_H

DC9~36V

Power Positive

FAQ – Rotary Drilling Rig Verticality Monitoring

1. What is an inclinometer used for in a rotary drilling rig?

An inclinometer is used to measure the inclination of a rotary drilling rig or its structural components relative to the horizontal plane. The measurement data can support drilling rig verticality monitoring and equipment alignment.

2. Can HCA716S/HCA726S be used for rotary drilling rig verticality monitoring?

Yes. HCA716S/HCA726S is a high-precision single-axis or dual-axis inclinometer designed for industrial tilt measurement. It can be integrated into a rotary drilling rig monitoring system to measure equipment inclination.

3. What is the accuracy of the HCA716S/HCA726S inclinometer?

HCA716S/HCA726S provides a resolution of 0.001° and a stated full-scale accuracy of 0.01°. The actual measurement performance depends on the selected range, installation conditions and application requirements.

4. What measurement range is suitable for drilling rig tilt monitoring?

HCA716S/HCA726S supports optional measurement ranges from ±1° to ±180°. The appropriate range should be selected according to the drilling rig's tilt monitoring requirements and the expected inclination during operation.

5. Can the inclinometer monitor drilling rig mast inclination?

Yes. When installed on a suitable reference surface of the drilling rig mast or related structure, the inclinometer can measure inclination changes. The installation position and axis direction should be determined according to the equipment design and monitoring system.
