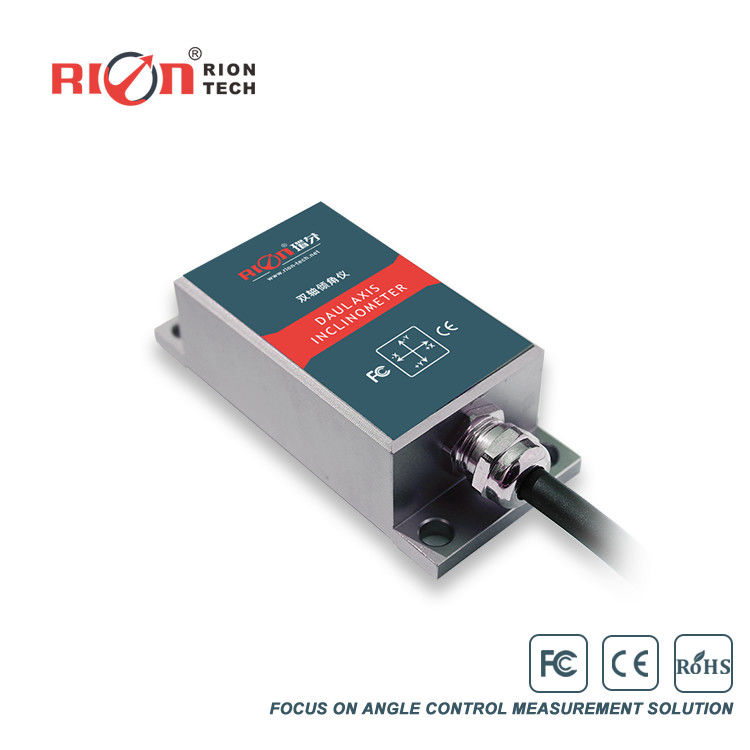

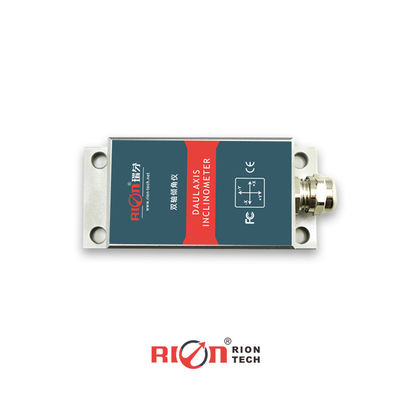

SCA126T Tilt Sensor Inclinometer Tilt Angle Meter RS232 RS422 Output
▶ PRODUCTION
SCA116T & SCA126T is the MODBUS output inclination sensor launched by RION Technology for industrial field control. It uses RS485 hardware differential bus to transmit data. Built-in high-precision 16bit A / D differential converter, through the 5th order filtering algorithm, can measure the tilt and pitch angle of the sensor output relative to the horizontal plane. built-in high-precision digital temperature sensorI, the temperature drift of the sensor can be corrected according to the change of the built-in temperature sensor to ensure the high repeatability of the product in low temperature and high temperature environments. The output response frequency standard can be up to 18Hz. If a higher response frequency is needed, our company can customize it according to the user. The product belongs to a real industrial grade product, with reliable and stable performance, good scalability, and multiple output options. Suitable for various harsh industrial control environments.
▶ FEATURES
★ Single / dual axis inclination measurement ★ Range ±1～±90 ° optional
★ Two communication protocols are optional ★ DC 9～36V wide voltage input
★ Wide temperature operation -40～+ 85 ℃ ★ Resolution 0.01 °
★ IP67 protection level ★ High anti-vibration performance> 2000g
★ Direct lead interface
▶ APPLICATION
★ Satellite antenna searching
★ Railway locomotive monitoring
★ Oil drilling equipment
★ Radar vehicle platform detection
★ Attitude navigation of underground drilling rig
★ Geological equipment tilt monitoring
★ Shield jacking application
★ Ship navigation attitude measurement
★ Various construction machinery inclination measurement
★ Direction measurement based on the inclination angle
★ Attitude detection of the satellite communication vehicle
▶ PERFORMANCE PARAMETERS
| SCA116T/126T | CONDITION | PARAMETER | UNIT | |||
| Measure range | ±10 | ±30 | ±60 | ±90 | ° | |
| Measure axis | X Y | X Y | X Y | X Y | axis | |
| Resolution | 0.01 | 0.01 | 0.01 | 0.01 | ° | |
| Measure accuracy | @25℃ | 0.02 | 0.03 | 0.05 | 0.06 | ° |
| Long term.stability | 0.05 | 0.05 | 0.05 | 0.05 | ° | |
| Zero Temp.coefficient | -40～85℃ | ±0.006 | ±0.006 | ±0.006 | ±0.006 | °/℃ |
| Sensitivity temp-coeffi | -40～85℃ | ≤100 | ≤100 | ≤100 | ≤100 | ppm/℃ |
| Power on time | 0.5 | 0.5 | 0.5 | 0.5 | S | |
| Response time | 0.02 | 0.02 | 0.02 | 0.02 | s | |
| Output rate | 5Hz,15Hz,35Hz,50Hz Optional | |||||
| communication protocol | MODBUS / ROIN 68 Optional | |||||
| EMC | According to EN61000 and GBT17626c | |||||
| MTBF | ≥50000 hours/times | |||||
| Insulation Resistance | ≥100MΩ | |||||
| Shockproof | 100g@11ms,3 Axial Direction (Half Sinusoid) | |||||
| Anti-vibration | 10grms,10～1000Hz | |||||
| Protection grade | IP67 | |||||
| Cables | Standard as 1-meter length, wear-resistant, oil-proof, wide temperature, shielded cable 4 * 0.4mm2 | |||||
| Weight | 165g(exclude cable) | |||||
* This performance parameter only lists ± 10 °, ± 30 °, ± 60 °, ± 90 ° series as a reference, for other measurement ranges, please refer to the most adjacent parameters.
▶ ELECTRICAL PARAMETERS
| PARAMETERS | CONDITION | MIN | TYPICAL | MAX | UNIT |
| Power supply voltage | Standard | 9 | 12,24 | 36 | V |
| Optional | 5 | V | |||
| Working current | 5V | 42 | mA | ||
| 12V | 26 | mA | |||
| 24 | 17 | mA | |||
| Working temp. | -40 | +85 | ℃ | ||
| Store temp. | -40 | +85 | ℃ |
