HCA716S/HCA726S Inclinometer for Ancient Building Structural Monitoring

Name: HCA716S/HCA726S Inclinometer for Ancient Building Structural Monitoring
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: HCA726
Price: 5.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Rion

Certification: CE, ISO,ROHS

Model Number: HCA726

Document: HCA716 HCA726 FULL TEMPERAT...OR.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $273.00/Pieces 1-9 Pieces

Packaging Details: packing carton

Delivery Time: 7

Payment Terms: T/T

Supply Ability: 5000/month

Get Best Price

Contact Now

Specifications

Description

Ratings & Reviews

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                          ancient building inclinometer for structural monitoring, tilt sensor inclinometer HCA716S HCA726S, structural monitoring inclinometer with warranty


Response Frequency:	20Hz	High Vibration Resistance:	> 100g
Range:	±1 ~ ±180 °	Weight:	≤150g (including 1 Meter Cable)
Interface:	TTL / RS232 / RS485 Optional	Power Supply:	9~36v
Communication Protocol:	68 Protocol / MODBUS RTU Protocol Optional

Response Frequency:	20Hz
High Vibration Resistance:	> 100g
Range:	±1 ~ ±180 °
Weight:	≤150g (including 1 Meter Cable)
Interface:	TTL / RS232 / RS485 Optional
Power Supply:	9~36v
Communication Protocol:	68 Protocol / MODBUS RTU Protocol Optional

Description

HCA716S/HCA726S Inclinometer for Ancient Building Structural Monitoring

▶ APPLICATION

Monitoring of bridges and large lands
Mining machinery, oil drilling equipment
Medical equipment angle control
Railway gauge ruler and gauge leveling
Underground drilling rig attitude navigation
Geological equipment tilt monitoring

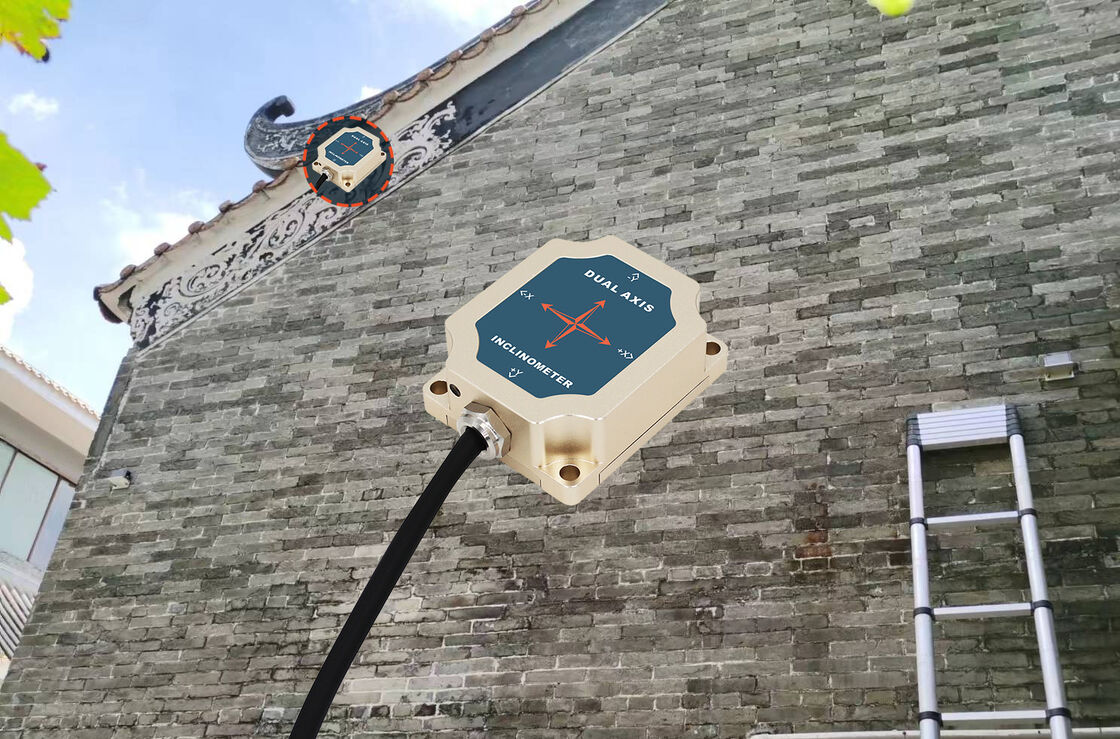

Monitoring of ancient buildings and dilapidated buildings

HCA716S/HCA726S Inclinometer for Ancient Building Structural Monitoring

▶ WORKING PRINCIPLE

Adopt the import of core control unit, using the capacitive micro pendulum principle and the earth gravity principle, when the the inclination unit is tilted, the Earth's gravity on the corresponding pendulum will produce a component of gravity, corresponding to the electric capacity will change, by enlarge the amount of electric capacity , filtering and after conversion then get the inclination.

HCA716S/HCA726S Inclinometer for Ancient Building Structural Monitoring

▶ PRODUCT FEATURES

Single/dual Axis Tilt sensor
Measuring Range :±1~±180° optional
Accuracy: refer to the technical data
Wide voltage input: DC9~36V
Wide temperature working: -40~+85℃
Resolution: 0.001°
IP67 protection class
Highly anti-vibration performance >100g
Direct lead cable interface
Small size : 54×46×20.5mm(customized)

▶ GENERAL DESCRIPTION

HCA716S/HCA726S is a compact high-precision single/dual-axis inclinometer with full-temperature compensation, RS485/RS232 interfaces and a measurement range up to ±180°. With 0.01° full-scale accuracy, it provides stable and reliable tilt measurement for ancient building, historic wall and industrial structural monitoring.

▶ SPECIFICATION

HCA716/726-C1		CONDITION	PARAMETER					UNIT
Measure range			±10	±30	±60	±90	±180	°
Measure axis			X Y	X Y	X Y	X Y	Vertical X axis	axis
Resolution			0.001	0.001	0.001	0.001	0.001	°
Measure accuracy	MAXE	Room temp.	0.008	0.01	0.01	0.02	0.02	°
	RMSE	Room temp.	0.004	0.005	0.005	0.006	0.006	°
Long temp. stability			<0.02					°
Zero Temp.coefficient		-40~85℃	±0.0005					°/℃
Sensitivity temp-coeffi		-40~85℃	≤0.01					%/℃
Power on time			0.5					S
Response frequency			20					Hz
Interface		CANopen
EMC		According to EN61000 and GBT17626
MTBF		≥98000 Hours/times
Insulation Resistance		≥100M
Shockproof		100g@11ms, 3 Axial Direction (Half Sinusoid)
Anti-vibration		10grms / 10~1000Hz
Protection grade		IP67
Cables		Standard 1M length / wear proof / grease proofing / wide temperature, Shielded cables 4*0.2mm2
Weight		≤150g (including 1 meter cable)
Resolution: Refers to the sensor in measuring range to detect and identify the smallest changed value. MAXE: refers to the biggest error of the product within the range and at multiple angle points. RMSE: refers to the root mean square difference between the measured value and the actual angle of the product within the range and for multiple times (more than 16 times). Zero Temperature Drift Coefficient: the change rate of the indication value relative to normal temperature within the rated operating temperature range of the sensor at the zero degree. Sensitivity Temperature Drift Coefficient: The percentage change rate with temperature of the full-scale indication relative to the full-scale indication at room temperature of the sensor in its rated operating temperature range.

▶ MECHANICAL PARAMETERS

Connector: 1m Direct Leading Cable ( Can Be Customized)
Protection level: IP67
Shell material: aluminum alloy shield oxidation
Installation: Four M4 screws

HCA716S/HCA726S Inclinometer for Ancient Building Structural Monitoring

▶ ELECTRICAL CONNECTION

LINE COLOR FUNCTION

BLACK

WHITE

GREEN

RED

GND

Power Negative

CAN_L

CAN_H

DC9~36V

Power Positive

HCA716S/HCA726S Inclinometer for Ancient Building Structural Monitoring

FAQ

Q1: What is the HCA716S/HCA726S inclinometer?

HCA716S/HCA726S is a high-precision industrial inclinometer for single-axis or dual-axis tilt measurement. It is available for applications requiring measurement ranges from ±1° to ±180°.

Q2: What is the measurement range of HCA716S/HCA726S?

The HCA716S/HCA726S supports optional measurement ranges from ±1° to ±180°, depending on the selected configuration.

Q3: What is the resolution of the HCA716S/HCA726S?

The inclinometer provides a resolution of 0.001°.

Q4: Does HCA716S/HCA726S support RS485?

Yes. The HCA716S/HCA726S supports RS485 and RS232 serial communication interfaces.

Q5: Is HCA716S/HCA726S suitable for outdoor industrial applications?

Yes. The sensor features IP67 protection and operates from -40°C to +85°C, making it suitable for many demanding outdoor and industrial environments.
