SMI835 series three-axis digital tilt sensor display collecting tilt sensor data

Name: SMI835 series three-axis digital tilt sensor display collecting tilt sensor data
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: SMI835
Price: 170 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: RION

Certification: CE, FCC

Model Number: SMI835

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: US$170 /pcs

Packaging Details: carton box

Delivery Time: 5-10 days

Payment Terms: T/T or Paypal

Supply Ability: 30000pcs per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Power Supply:	DC9-36V	Transmission Distance:	RS485: 500m
Resolution:	0.01°/0.001°	Wide Temperature Operation:	-25~+80°C
Protection Class:	IP54	Size:	L117×W77×H32mm

Power Supply:	DC9-36V
Transmission Distance:	RS485: 500m
Resolution:	0.01°/0.001°
Wide Temperature Operation:	-25~+80°C
Protection Class:	IP54
Size:	L117×W77×H32mm

Description

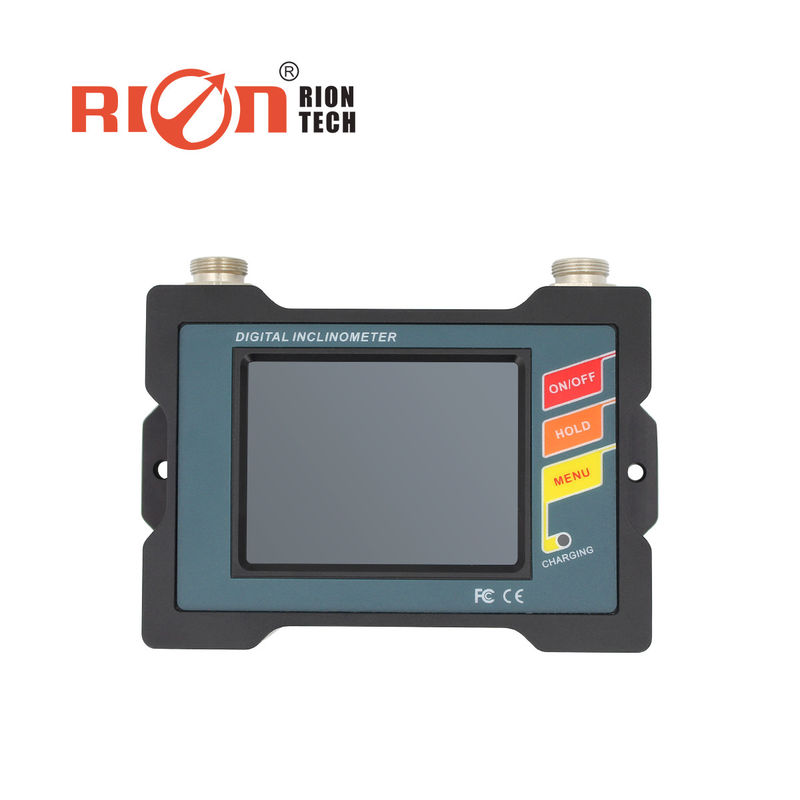

SMI835 series three-axis digital tilt sensor display collecting tilt sensor data

SMI8 series digital tilt sensor display collecting tilt sensor data 2.8 inch color display

SMI835 series three-axis digital tilt sensor display collecting tilt sensor data 0

The SMI8 series digital tilt sensor display can be matched with all our series of sensor products, including inclination sensor, accelerometer, compass, gyroscope, attitude and other products for data transmission and display. The monitor adopts industrial wide temperature digital screen, with PC membrane buttons, powerful functions, can set the zero point of the sensor, can accept customer function keys, panel color, third-party sensor access collection scheme customization. The monitor adopts DC9~36V external power supply.

Monitor and sensor transmission can use RS485 and other ways, can be transmitted over long distances, monitor all-metal design, portable and easy to install, especially suitable for harsh industrial sites for real-time monitoring operations.

▶ KEY FEATURES

★ collecting tilt sensor data

★ Transmission distance: RS485: 500m

★ 2.8 inch color display

★ Resolution:0.01°/0.001°

★ DC 9~36V wide voltage input

★ Wide temperature operation -25~+80°C

★ Aviation head plug and unplug

★ IP54 protection class

★ High vibration resistance> 200g

▶ WIRING

Tilt sensor interface pin definition

SMI835 series three-axis digital tilt sensor display collecting tilt sensor data 1

External power supply interface pin definition

SMI835 series three-axis digital tilt sensor display collecting tilt sensor data 2

(1) Tilt sensor interface: connect tilt sensor, select the standard tilt sensor resolution of 0.01, high-precision tilt sensor resolution of 0.001.

(2) Metal shell: anodized aluminum metal shell, hard and durable.

(3) External power supply interface: DC9~36V power supply.

(4) 64-color display: data display area.

(5) Power on and off button: power on/off button.

(6) Mounting hole: two M4 screws. Easy to install, convenient and fast.

(7) Clear button: press the button, beep, switch the zero mode, the top of the screen shows ABS as absolute zero state, REL is relative zero state..
