single dual axis clinometers for platform levelling high resolution clinos
Technical data
 DMI610 |
PARAMETERS | |
| Angle measure range | ±90° | ±30° |
| Measure axis | Single axis | Dual axis |
| Best accuracy | <0.02°(RMS)(Full range) | <0.005°(RMS)(Full range) |
| Angle measure resolution | 0.001° | 0.001° |
| Repeatability | 0.004° | 0.004° |
| Measurement mode | radian, angle, mm/m three modes can be set | |
| LCD | 64 true colors night vision display screen | |
| LCD visible area size | L60.5*W45mm | |
| Working temperature | -10℃~+70℃ | |
| Working humidity | 85%RH | |
| Power supply | 1.5V | |
| Ideal working time | 6Hours | |
| Shock resistance | 10g@11ms,3 Axial Direction (Half Sinusoid) | |
| Shock impact | 10grms,10～100Hz | |
| Weight | 600g | |
| Waterproof grade | IP65 | |
| Material | Anodic oxidation of aluminum alloy | |
| Size | L115*W95*H32mm | |
▶ FEATURES
★ Best accuracy:<0.02° ★ Repeatability:0.02°
★ Maximum measure range:±90° ★ Data store function
★ Absolute/Relative measurement can switch ★ Both sides and bottom can measure
★ Three surface datum strong magnetic installation ★ Working Temperature : -10°～ +70℃
★ Auto-angle interleaved compensation function ★ Auto temperature drift compensation
★ User can calibrate ZERO by himself ★ Night vision fours colors screen
★ Three kinds of measurement mode selectable (radian, angle, mm/m) ★ Angle resolution:0.001°
▶ APPLICATION
★ Building construction ★ Automobile four-wheel testing ★ Road slope

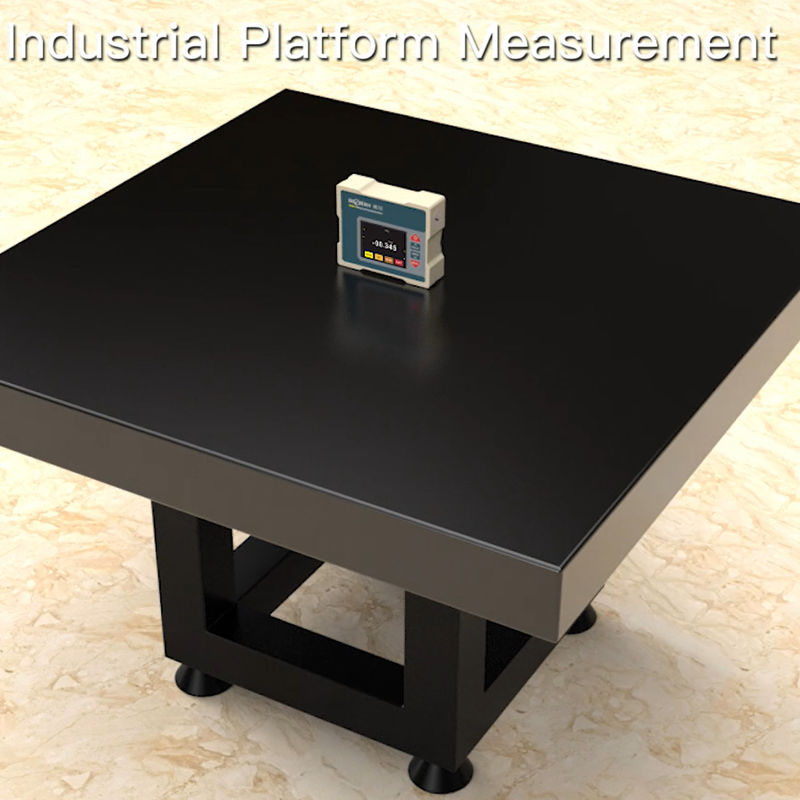

★ Machinery installation ★ Piping installation ★ Industrial platform
★ Turntable testing ★ Pan unit angle detection ★ Production jig
★ Medical instruments
BATTERY INSTALLATION DIAGRAM
PRODUCT DIMENSION
