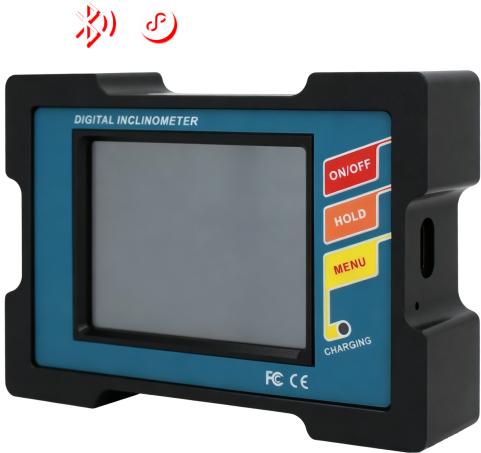

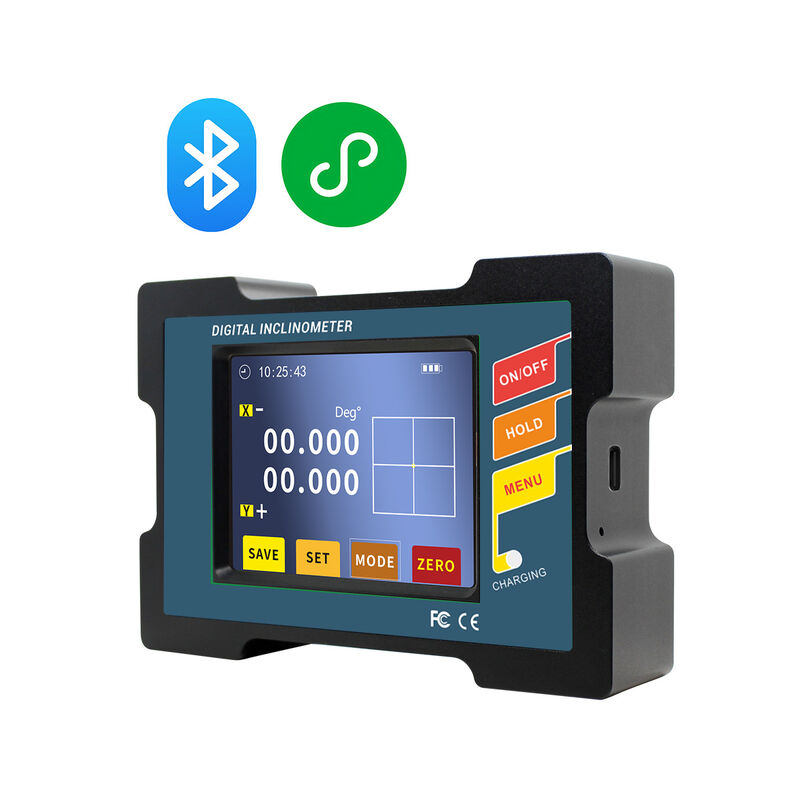

DMI820-BL Digital Inclinometer – Bluetooth for Industrial Angle Measurement

The DMI820-BL is an electronic level designed for angle control and measurement in various industrial settings. Its core technology utilizes micromechanical control principles and a dual-core measurement unit. During measurement, the Y-axis compensates for the X-axis. Employing Ruifen's patented interpolation and temperature compensation model algorithms, it leverages the absolute computational advantages of micromechanical electronics to ensure long-term stability and repeatability. It features a built-in BLE5.2 Bluetooth module. Dual-axis measurement with a range of ±30°, a resolution of 0.001°, a maximum accuracy of <0.005° across the entire range, fast response, and stable data. The product is specially designed with strong magnetic adsorption for mounting on the side and bottom, allowing for measurement from both reference points, providing significant convenience. This product boasts data storage capabilities, three selectable measurement modes (angle, degrees/minutes/seconds, mm/m), strong expandability, practical applicability, industrial reliability, and a strong cost-performance ratio, giving it a highly competitive edge in the international market.

• Optimal Accuracy: <0.005°
• Repeatability: 0.003°
• Angular Resolution: 0.001°
• Maximum Measurement Range: ±30°
• Switchable Absolute/Relative Measurement
• Data Storage Function
• Measuring from the Side and Bottom
• Dual-Reference Strong Magnetic Mounting
• Operating Temperature: -10℃ to +70℃
• Automatic Angle Interleaving Compensation
• Alarm Angle Setting
• Built-in Rechargeable Industrial Battery
• Night Vision Four-Color Screen
• Dual Unit Switching (Angle or Length)
• 3 Selectable Measurement Modes
• Selectable Filtering Frequency
• IP54 Protection Rating

• Building construction
• Automobile four-wheel testing
• Road slope
• Machinery installation
• Piping installation
• Industrial platform
• Turntable testing
• Pan unit angle detection
• Production fixtures
• Medical instruments

Users can complete device network configuration and link handshake by searching for the WeChat mini-program "RION Technology+", and then query and save the tilt angle data in real time. This provides a lightweight mobile data support platform for equipment operation and maintenance. For detailed operation steps, please refer to the mini-program's operation instruction
