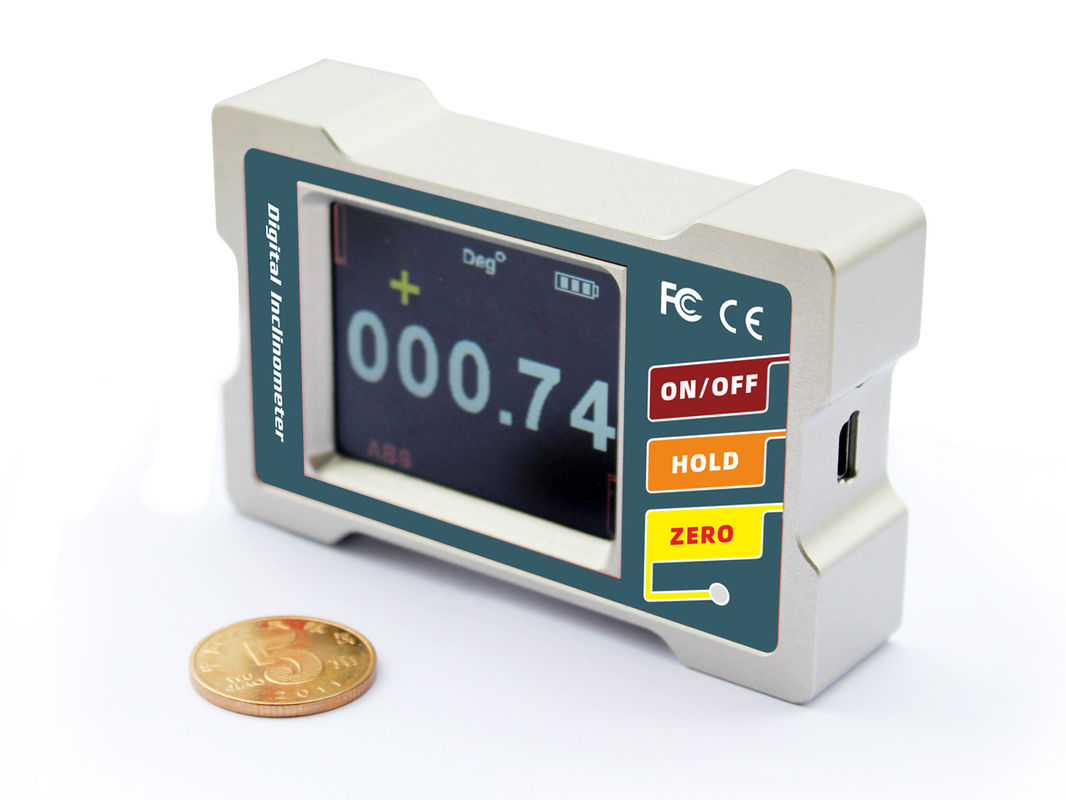

Magnetic Base Digital Angle Finder Box Single Axis RS485 180deg Rion Inclinometer

Magnetic Base Digital Angle Finder Box Single Axis RS485 180deg Rion Inclinometer
Features Gallery Product Description Request A Quote
Material: Metal
Size: L83 X W53 X H19.2mm
Weight: 125g
Waterproof: IP54
Installation Method: Strong Magnet
Working Temp.: -10~70 Celsius Degree
Power Supply: 3.7v Rechargeable Lithium Battery
Shock Impact: 10grms,10-100Hz
Screen: 4 True Colors Night Version Screen
Port: Shenzhen
High Light:

180deg digital angle finder box


digital angle finder box one axis


RS485 rion Inclinometer

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: RION
Certification: CE
Model Number: DMI410/420-90
Payment & Shipping Terms
Packaging Details: 1pcs/box,10pcs/ctn
Delivery Time: 5-10 work days
Payment Terms: T/T, Paypal
Supply Ability: 30000 Set/Sets per Month
Product Description

DMI410 single-axis 180deg measurement range Digital Angle Finder Box Magnetic Base 2 Axis Digital Inclinometer


DMI410&DMI420 is a digital display inclinometer which took RION company three years to develop professional for various industry angle control and measuring.The core of this product is using the micro-mechanical control principle, dual-core measurement unit, can use the Y-axis to compensate X-axis during the measurement process,a and then to use RION patent interleaved and temperature compensation model algorithm to play absolute operation advantages of the micro-mechanical electronic principles,to ensure that the instruments measurement with the long-term stability and repeatability. MI410 single axis ±180° measurement, DMI420 dual axis ±90° measurement,resolution 0.01 °,accuracy <0.05 degree full-scale,fast response, stable data, products specially designed for the sides and bottom with magnetic adsorption installation, both sides of the benchmark can be measured and using normally,very convenient to use,This product series has strong scalability, convenient & practical application and industrial reliability, has absolute cost advantage and has an absolute competitive advantage in the international market !



★ Auto-angle interleaved compensation function ★ Auto temperature drift compensation

★ User can calibrate by himself ★ Built-in recharge industry battaries

★ Night vision fours colors screen ★ IP54 protection class

★ Angle/length dual unit switch ★ 100g High anti-impact



★ Building construction ★ Automobile four-wheel testing ★ Road slope ★ Machinery installation ★ Piping installation ★ Industrial platform

★ Turntable testing ★ Cloud deck angle detection ★ Production jig



PARAMETERSMagnetic Base Digital Angle Finder Box Single Axis RS485 180deg Rion Inclinometer 0 DMI410 DMI420
Angle measure range ±180 ° ±90 °
Length measure range 0~±999.9mm/m 0~±999.9mm/m
Measure axis Single axis Dual axis
Angle measure accuracy 0.05 °(full range) 0.05 °(full range)
Angle measure resolution 0.01° 0.01°
Length measure accuracy 0.9mm/m(full range) 0.17mm/m(full range)
Length measure resolution 0.17mm/m 0.1mm/m
LCD visible area size L40*W32mm
Working temperature -10℃~ +70℃
Working humidity 85℃
Power supply 3.7V Charging Lithium battery
Ideal charging time 3h
Battery continuous working time 8h(±0.5)
Data output signal Standard 5Pin USB connector
Anti-vibration 10g@11ms,3 Axial Direction (Half Sinusoid)
Impact resistance 10grms,10~100Hz
Weight 125g
Waterproof level IP54
Material Metal aluminum
Size L83*W53*H19.2mm






Item No. Order description
DMI410 Standard single axis digital display inclinometer /measure range ±180°(length 0~±999.9mm/m)
DMI420 Standard Dual axis digital display inclinometer /measure range ±90°(length 0~±999.9mm/m)


Product Functions:

Magnetic Base Digital Angle Finder Box Single Axis RS485 180deg Rion Inclinometer 1
