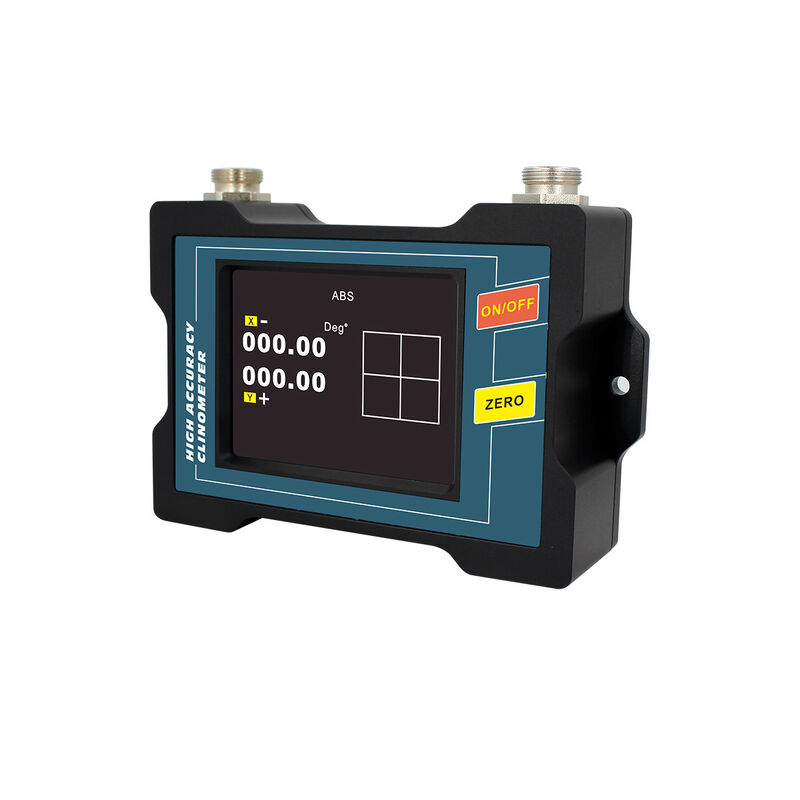

DMI815/825 High-Accuracy Digital Inclinometer for Construction and Road Slope Measurement

Name: DMI815/825 High-Accuracy Digital Inclinometer for Construction and Road Slope Measurement
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: DMI815/825
Price: 438.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: RION

Certification: CE, FCC , ROHS

Model Number: DMI815/825

Document: DMI815 DMI825 DIGITAL DISPL...ER.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1Pieces

Price: $438.00/Pieces

Packaging Details: Carton

Delivery Time: 5~8 work days

Payment Terms: T/T

Supply Ability: 3000/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      high-accuracy digital inclinometer, construction slope measurement inclinometer, road slope measurement inclinometer


Measured Accuracy:	< 0.005 °	Angle Resolution:	0.001 °
Measurement Range:	± 30°	LCD Screen:	64-color True Color Luminous Display
Waterproof Grade:	IP54	Size:	L117W75H27mm

Measured Accuracy:	< 0.005 °
Angle Resolution:	0.001 °
Measurement Range:	± 30°
LCD Screen:	64-color True Color Luminous Display
Waterproof Grade:	IP54
Size:	L117W75H27mm

Description

DMI815/825 High-Accuracy Digital Inclinometer for Construction and Road Slope Measurement

DMI815 DMI825 DIGITAL DISPLAY INCLINOMETER.pdf

APPLICATION

Building construction
Production fixture
Vehicle four-wheel detection
Mechanical installation
Pipeline installation
Industrial platform
PTZ angle detection
Turntable detection
Medical instrument
Road slope

FEATURES

Measured accuracy: < 0.005 °
Angle resolution: 0.001 °
Filter frequency optional
Measurement range: ± 30°
Absolute/relative measurement can be switched
With data storage function
Automatic angle interleaving compensation function
Fixed installation can be measured
Working temperature -10℃~ + 70℃
Angle/length double unit switching
Night vision four-color screen
Customers can calibrate the zero point by themselves
Alarm angle can be set
3 measurement modes (angle, degree, minute and second, mm/m)

SPECIFICATIONS

PARAMETER	DMI815				Unit
Measure axis	Single axis	Single axis	Dual axis	Dual axis	Axis
Angle measurement range	±15°	±30°	±15°	±30°	°
Angle measurement accuracy (full range)	<0.005	<0.01	<0.005	<0.01	°
Angular measurement resolution	0.001	0.001	0.001	0.001	°
Millimeter/meter measuring range	267	577	267	577	mm/m
Millimeter/meter measurement accuracy	0.1	0.2	0.1	0.2	mm/m
Millimeter/meter measurement resolution	0.02	0.02	0.02	0.02	mm/m
Repeatability	0.003	0.003	0.003	0.003	°
3 measurement modes available	Three modes of angle, degree, minute, second and millimeter/meter can be set.				/
LCD screen	64-color true color luminous display				/
LCD viewable area size	L57.6*W43.2				mm
Operating temperature	-10℃～ +70℃				℃
Operating humidity	85				%RH
Power source	3.7 V rechargeable lithium battery				V
Ideal charging time	5				Hour
Continuous working time of battery	11				Hour
Data output signal	USB1.1 (Virtual Serial Device)				/
Equipped with upper computer software	VC application software				/
Connector	Standard USB connector, rechargeable function				/
Anti-vibration	10g @ 11ms, triaxial (half sine wave)				g
Impact resistance	10grms, 10～100Hz				g
Waterproof grade	IP54				/
Material	Aluminum alloy anodizing				/
Size	L117W75H27mm				mm
Weight	300				g

FAQ

Q1: Can the DMI815/825 compensate for cross-axis errors?

The DMI815/825 uses Y-axis compensation for the X-axis, together with interpolation and temperature compensation algorithms, to improve measurement stability and accuracy.

Q2: Does the DMI815/825 support data storage?

Yes. The DMI815/825 includes a data storage function, allowing users to save measurement data for convenient review and use.

Q3: Can the DMI815/825 switch between absolute and relative measurement?

Yes. The instrument supports switching between absolute and relative measurement modes, allowing users to measure angles relative to a reference or establish a local zero point.

Q4: Can users calibrate the zero point themselves?

Yes. The DMI815/825 allows users to calibrate the zero point themselves, making it easier to establish a reference for specific installation and measurement tasks.

Q5: What are the main applications of the DMI815/825?

The DMI815/825 is suitable for:

Building construction and installation
Precision machinery installation
Pipeline alignment and installation
Industrial platform leveling
Vehicle four-wheel alignment
Road slope measurement
Turntable and PTZ angle detection
Production fixtures and medical instruments
