Product Details
Place of Origin: Guangdong, China
Brand Name: RION
Certification: CE
Model Number: DMI420-90
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $248.00/Sets
Packaging Details: 1pcs/box,10pcs/ctn
Delivery Time: 5-10 work days
Payment Terms: T/T, Paypal
Supply Ability: 30000 Set/Sets per Month
Name: |
Machine Tool Level Sensor |
Measure Axis: |
2 Axes |
Angle Measure Accuracy: |
0.05 °（full Range） |
Waterproof: |
IP54 |
Angle Measure Resolution: |
0.01° |
Power Supply: |
3.7v Rechargeable Lithium Battery |
Shock Impact: |
10grms,10-100Hz |
Weight: |
≤140g |
Name: |
Machine Tool Level Sensor |
Measure Axis: |
2 Axes |
Angle Measure Accuracy: |
0.05 °（full Range） |
Waterproof: |
IP54 |
Angle Measure Resolution: |
0.01° |
Power Supply: |
3.7v Rechargeable Lithium Battery |
Shock Impact: |
10grms,10-100Hz |
Weight: |
≤140g |

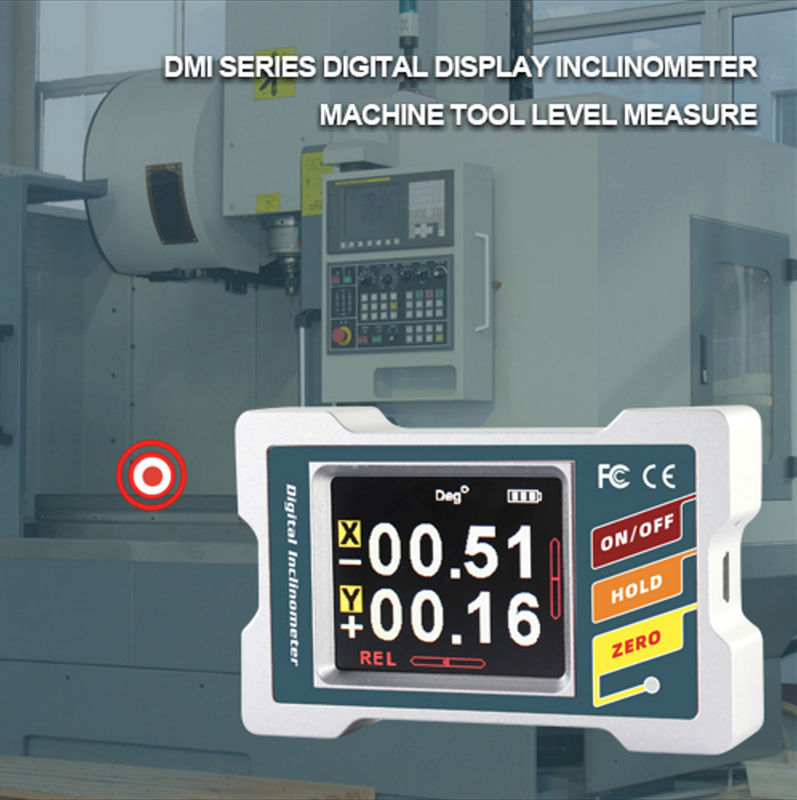

Machine tool level measure sensor clinometers measure level for platform
Specifications
| PARAMETERS | DMI410 DMI420 | |
| Angle measure range | ±180 ° | ±90 ° |
| Length measure range | 0~±999.9mm/m | 0~±999.9mm/m |
| Measure axis | Single axis | Dual axis |
| Angle measure accuracy | 0.05 °(full range) | 0.05 °(full range) |
| Angle measure resolution | 0.01° | 0.01° |
| Length measure accuracy | 0.9mm/m(full range) | 0.17mm/m(full range) |
| Length measure resolution | 0.17mm/m | 0.1mm/m |
| LCD visible area size | L40*W32mm | |
| Working temperature | -10℃～ +70℃ | |
| Working humidity | 85℃ | |
| Power supply | 3.7V Charging Lithium battery | |
| Ideal charging time | 3h | |
| Battery continuous working time | 8h(±0.5) | |
| Data output signal | Standard 5Pin USB connector | |
| Anti-vibration | 10g@11ms,3 Axial Direction (Half Sinusoid) | |
| Impact resistance | 10grms,10～100Hz | |
| Weight | ≤140g | |
| Waterproof level | IP54 | |
| Material | Metal aluminum | |
| Size | L83*W53*H19.2mm | |
▶ APPLICATION
★ Building construction
★ Automobile four-wheel testing
★ Road slope
★ Machinery installation
★ Piping installation
★ Industrial platform
★ Turntable testing
★ Cloud deck angle detection
★ Production jig
▶ DIMENSION
▶ MEASURING DIRECTION
