Fluxgate Waterproof IP54 Digital Angle Finder Box single-dual axis auto switch,2 Axis Digital Inclinometer
▶ GENERAL DESCRIPTION

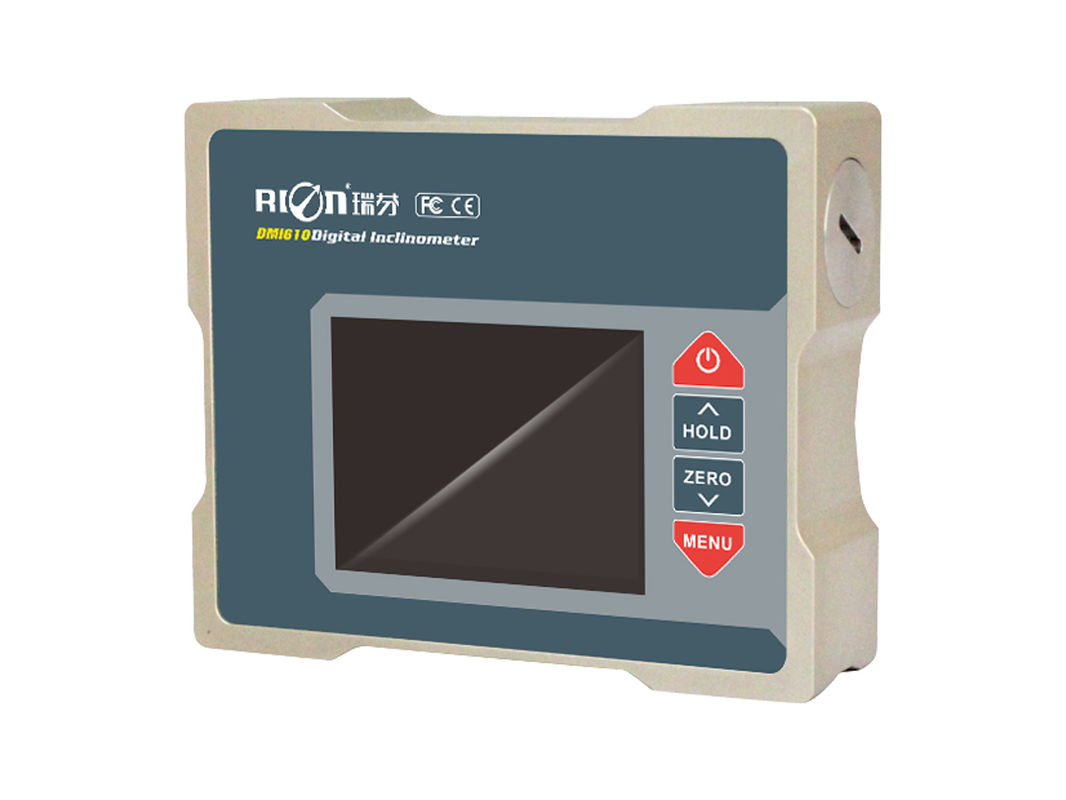

DMI610 is a digital display inclinometer for various industry angle controling and measuring.
The core of this product use micro mechanical control principle, using RION patent interleaved temperature compensation model algorithm, play micro electronic mechanical principle of absolute operation advantage, to ensure the long-term stability and repeatability of measuring instrument. DMI610 single axis maximum range of up to + 90 ° , resolution 0.002 ° , the best accuracy <0.02° (in full measuring range), fast response speed, stable data , specially designed side and bottom the strong magnetic adsorption type installation, three datum can be measured using normally, bring great convenience to customers, DMI610 has the function of data storage, 3 measurement modes (radian, angle, mm/m) optional, strong expansibility, convenient application, industrial reliability, and has the absolute competitive price advantage in the international market have absolute competitive advantage!
▶ FEATURES
★ Best accuracy:<0.02° ★ Repeatability:0.02°
★ Maximum measure range:±90° ★ Data store function
★ Absolute/Relative measurement can switch ★ Both sides and bottom can measure
★ Three surface datum strong magnetic installation ★ Working Temperature : -10°～ +70℃
★ Auto-angle interleaved compensation function ★ Auto temperature drift compensation
★ User can calibrate ZERO by himself ★ Night vision fours colors screen
★ Three kinds of measurement mode selectable (radian, angle, mm/m) ★ Angle resolution:0.001°
▶ APPLICATION
★ Building construction ★ Automobile four-wheel testing ★ Road slope
★ Machinery installation ★ Piping installation ★ Industrial platform
★ Turntable testing ★ Pan unit angle detection ★ Production jig
★ Medical instruments
Technical data
| DMI610 |
PARAMETERS | |
| Angle measure range | ±90° | ±30° |
| Measure axis | Single axis | Dual axis |
| Best accuracy | <0.02°(RMS)(Full range) | <0.005°(RMS)(Full range) |
| Angle measure resolution | 0.001° | 0.001° |
| Repeatability | 0.004° | 0.004° |
| Measurement mode | radian, angle, mm/m three modes can be set | |
| LCD | 64 true colors night vision display screen | |
| LCD visible area size | L60.5*W45mm | |
| Working temperature | -10℃~+70℃ | |
| Working humidity | 85%RH | |
| Power supply | 1.5V | |
| Ideal working time | 6Hours | |
| Shock resistance | 10g@11ms,3 Axial Direction (Half Sinusoid) | |
| Shock impact | 10grms,10～100Hz | |
| Weight | 600g | |
| Waterproof grade | IP65 | |
| Material | Anodic oxidation of aluminum alloy | |
| Size | L115*W95*H32mm | |
