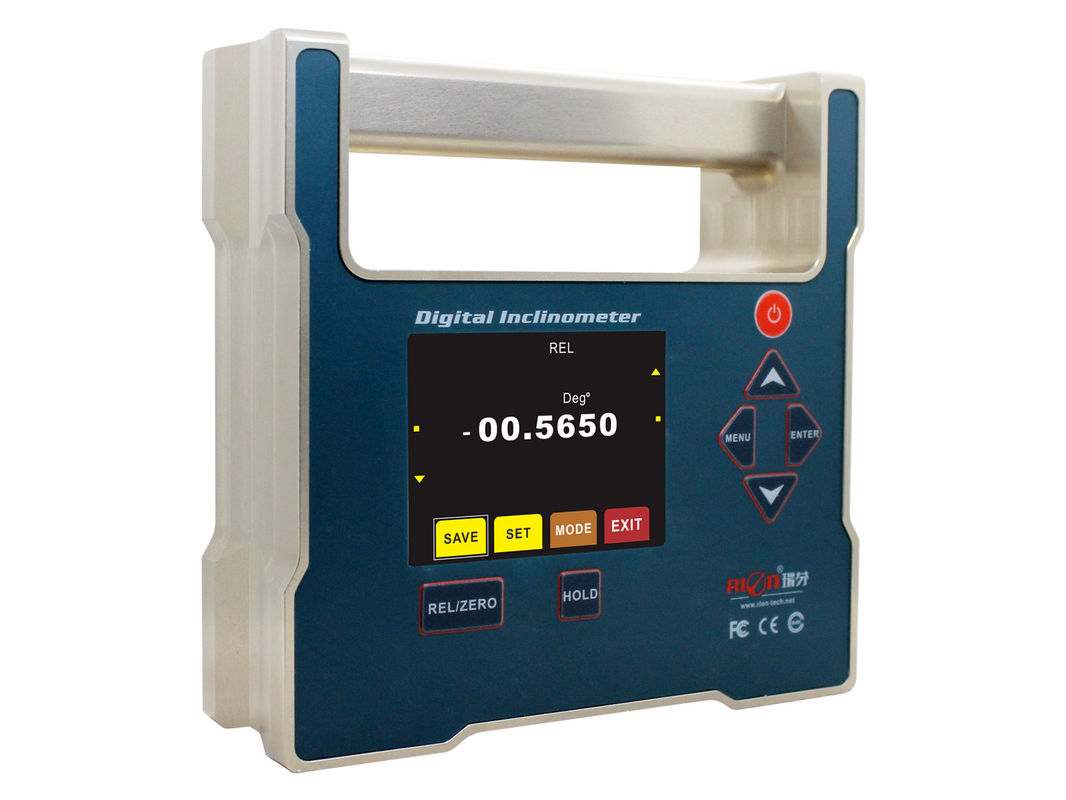

DMI850 RION High Accuracy 0.002deg Digital Inclinometer Level Meter Portable
▶ PRODUCT DESCRIPTION
DMI850 is one Single axis Digital Inclinometer developed by RION company based on high precise angle measurement platform, it adopts the quartz pendulum slice of the earth's gravity induction component to solve the object level tilt angle. The built-in 32 bit microprocessor and collocation 32 bit high precision analog-to-digital converter, can highly subdivision sampling for the front weak current current and signal ratio of inclination , can meet the highest level accuracy of 0.001 degrees, the resolution is up to 0.0005 degrees. It can perform on-site data playback and chart analysis, and is the best instrument for high-precision platform leveling and measurement.
▶ KEY FEATURES
★ Best accuracy:<0.002° ★ angular resolution:0.0005°
★ IP54 protection class ★ Maximum measurement range:±30°
★ Absolute / relative measurement switchable ★ data storage function
★ Both side and bottom can be measured ★ working temperature -10℃～ +70℃
★ Double benchmark strong magnet installation ★ Alarm angle can be set
★ Automatic angle interpolation compensation function ★ Night vision four color screen
★ Customers can calibrate the zero point by themselves
★ Angle or length double unit switch
★ 2 kinds of measurement mode selectable
▶ APPLICATION RANGE
★ Building construction ★ Automotive four-wheel inspection
★ Mechanical installation ★ Pipe installation ★ Industrial platform ★ Road slope
★ Pan-tilt angle detection ★ Turntable detection ★ Production fixture ★ Medical instruments
▶ PARAMETER
 DMI850 |
PARAMETER | unit |
| Measurement Range | ±30 | ° |
| Measuring Axis | Single-axis | |
| Best Accuracy | <0.002 (＜5°),<0.003 (5°-30°) | °(RMS) |
| Resolution | 0.0005 | ° |
| Measurement Mode | Two modes can be set: degree, mm / m | / |
| Lcd | 64 color true color luminous display | / |
| Lcd Visible Size | L60*W45 | mm |
| Operating Temperature | -10°～ +70℃ | °/℃ |
| Working Humidity | 85 | %RH |
| Power Supply | 2A No.5 battery | / |
| Battery Continuous Working Time | 6 | h |
| Anti-Vibration | 10g @ 11ms, triaxial and same (half sine wave) | / |
| Impact Resistance | 10grms,10～100Hz | / |
| Weight | 1200 | g |
| Protect Class | IP54 | / |
| Material | Anodizing of aluminum alloy | / |
| Size | L140*W140*H45mm | mm |
