DMI410 Waterproof Digital Inclinometer Cloud Deck Tool 2 Axis Angle Meter

Product Details

Place of Origin: China

Brand Name: RION

Certification: CE

Model Number: DMI410/420-90

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $248/Pieces

Packaging Details: digital inclinometer in each wooden box with sponge inside , 20pcs /ctn

Delivery Time: 5-10 work days

Payment Terms: T/T, Paypal

Supply Ability: 1000 Piece/Pieces per Week digital inclinometer in warehouse

Get Best Price
Contact Now
Specifications
Highlight:

rion two Axis Digital Inclinometer

,

waterproof Two Axis Digital Inclinometer

,

MI410 angle meter digital

Inclinometer Real Accuracy:
0.05°
Pro 360 Digital Level:
Read-out With Fractions
Measuring Range:
360 Degrees
Working Temperature:
-20°~ +65℃
Protection Class:
IP54
°/mm Dual Units Switch Function:
Night Vision Fours Colors Screen
Absolute/Relative Measurement Can Switch:
Auto-angle Interleaved Compensation Function
Port:
USB
Inclinometer Real Accuracy:
0.05°
Pro 360 Digital Level:
Read-out With Fractions
Measuring Range:
360 Degrees
Working Temperature:
-20°~ +65℃
Protection Class:
IP54
°/mm Dual Units Switch Function:
Night Vision Fours Colors Screen
Absolute/Relative Measurement Can Switch:
Auto-angle Interleaved Compensation Function
Port:
USB
Description

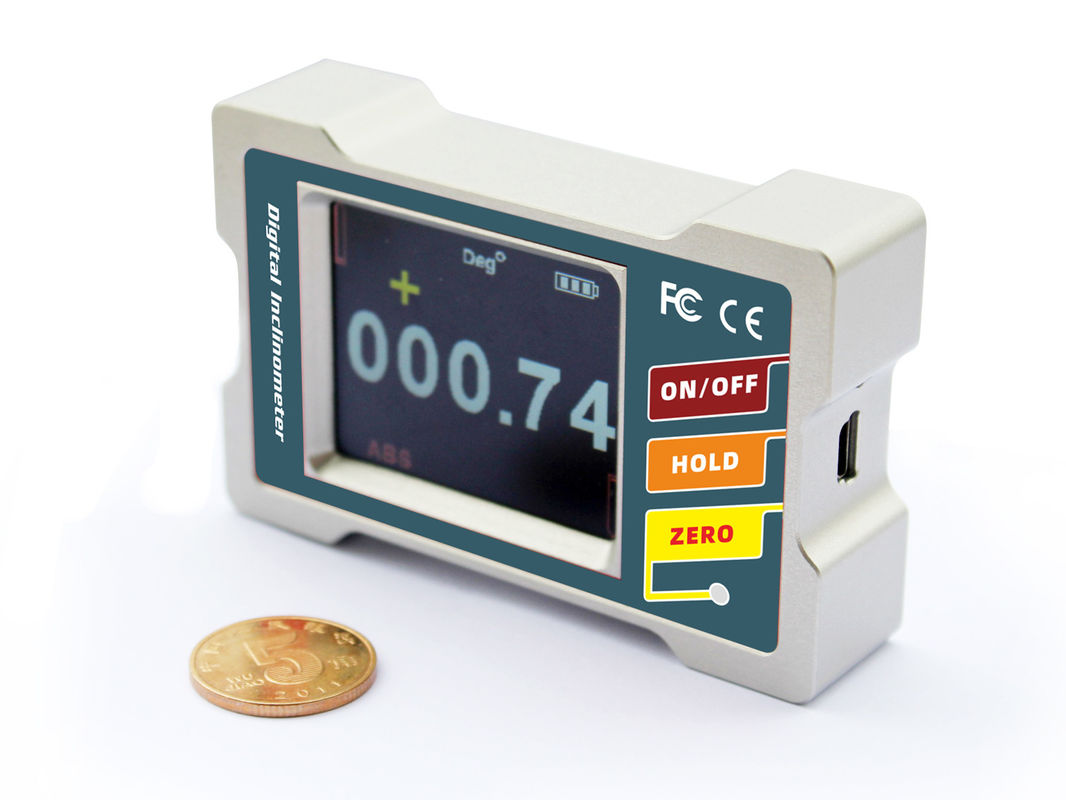

DMI410 Waterproof Digital Inclinometer Cloud Deck Tool 2 Axis Angle Meter

DMI410 Waterproof Digital Inclinometer Cloud Deck Tool 2 Axis Angle Meter



PRODUCT DESCRIPTION

DMI410&DMI420 is a digital display inclinometer which took RION company three years to develop professional for various industry angle control and measuring.The core of this product is using the micro-mechanical control principle, dual-core measurement unit, can use the Y-axis to compensate X-axis during the measurement process,a and then to use RION patent interleaved and temperature compensation model algorithm to play absolute operation advantages of the micro-mechanical electronic principles,to ensure that the instruments measurement with the long-term stability and repeatability. MI410 single axis ±180° measurement, DMI420 dual axis ±90° measurement,resolution 0.01 °,accuracy <0.05 degree full-scale,fast response, stable data, products specially designed for the sides and bottom with magnetic adsorption installation, both sides of the benchmark can be measured and using normally,very convenient to use,This product series has strong scalability, convenient & practical application and industrial reliability, has absolute cost advantage and has an absolute competitive advantage in the international market !



KEY FEATURES

★ Auto-angle interleaved compensation function

★ Auto temperature drift compensation

★ User can calibrate by himself

★ Built-in recharge industry battaries

★ Night vision fours colors screen

★ IP54 protection class

★ Angle/length dual unit switch

★ 100g High anti-impact



APPLICATION

★ Building construction ★ Automobile four-wheel testing ★ Road slope ★ Machinery installation ★ Piping installation ★ Industrial platform

★ Turntable testing ★ Cloud deck angle detection ★ Production jig




TECHNICAL DATA

PARAMETERS DMI410 DMI420
Angle measure range ±180 ° ±90 °
Length measure range 0~±999.9mm/m 0~±999.9mm/m
Measure axis Single axis Dual axis
Angle measure accuracy 0.05 °(full range) 0.05 °(full range)
Angle measure resolution 0.01° 0.01°
Length measure accuracy 0.9mm/m(full range) 0.17mm/m(full range)
Length measure resolution 0.17mm/m 0.1mm/m
LCD visible area size L40*W32mm
Working temperature -10℃~ +70℃
Working humidity 85℃
Power supply 3.7V Charging Lithium battery
Ideal charging time 3h
Battery continuous working time 8h(±0.5)
Data output signal Standard 5Pin USB connector
Anti-vibration 10g@11ms,3 Axial Direction (Half Sinusoid)
Impact resistance 10grms,10~100Hz
Weight 125g
Waterproof level IP54
Material Metal aluminum
Size L83*W53*H19.2mm









ORDER INFORMATION

Item No. Order description
DMI410 Standard single axis digital display inclinometer /measure range ±180°(length 0~±999.9mm/m)
DMI420 Standard Dual axis digital display inclinometer /measure range ±90°(length 0~±999.9mm/m)



DMI410 Waterproof  Digital Inclinometer Cloud Deck Tool  2 Axis Angle Meter 0

DMI410 Waterproof  Digital Inclinometer Cloud Deck Tool  2 Axis Angle Meter 1


Order Process :

Before order pls contact us for confirm detailed informaiton such as model ,price ,lead time ...etc .



Payment ways :

T/T, WU or Paypal;



Delivery methods & Time :

DHL takes 3-5days ,  Fedex takes 2-7 days , UPS takes 3-7day , EMS takes 10-25days ;



Quality Policy :

We gurantee 1 year in free charge .



Storage :

Note usually we don't make any items in stock , samples customize time need around 3-7days .
