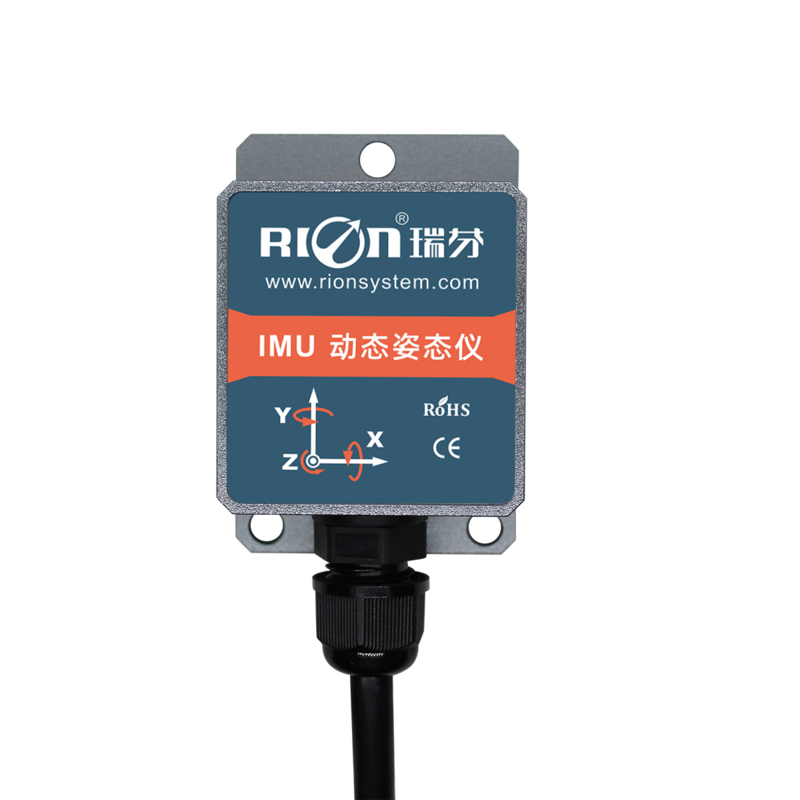

TL720D-CAN2.0A/B COMPACT HIGH-PRECISION GYROSCOPE FOR INDUSTRIAL & AGRICULTURAL USE

Name: TL720D-CAN2.0A/B COMPACT HIGH-PRECISION GYROSCOPE FOR INDUSTRIAL & AGRICULTURAL USE
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: TL720D-CAN2.0A/B
Price: 33.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: RION

Certification: ISO

Model Number: TL720D-CAN2.0A/B

Document: TL720D CANBUS IMU DYNAMIC A...OR.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $65/Pieces >=1 Pieces

Packaging Details: Carton

Delivery Time: 7 days for samples

Payment Terms: T/T,Paypal

Supply Ability: 5000 Piece/Pieces per Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              DRIFT STABILITY MEMS Gyroscope Sensor, SHIPS MEMS Gyroscope Sensor, Mems Gyroscope Sensor For Ships


Heading Measure Axis:	Z Axis Heading Angle (±180)°	Position Accuracy:	<2mm/m (According To The Angle Conversion)
Bandwidth:	>100Hz	Output Rate:	1Hz~100Hz Can Set
Output Signal:	CAN2.0A / CAN2.0B(optional )	Anti-vibration:	10grms / 10~1000Hz
Protection Grade:	IP67	Weight:	≤135g (including 1 Meter Standard Cable)

Heading Measure Axis:	Z Axis Heading Angle (±180)°
Position Accuracy:	<2mm/m (According To The Angle Conversion)
Bandwidth:	>100Hz
Output Rate:	1Hz~100Hz Can Set
Output Signal:	CAN2.0A / CAN2.0B(optional )
Anti-vibration:	10grms / 10~1000Hz
Protection Grade:	IP67
Weight:	≤135g (including 1 Meter Standard Cable)

Description

TL720D-CAN2.0A/B COMPACT HIGH-PRECISION GYROSCOPE FOR INDUSTRIAL & AGRICULTURAL USE

TL720D-CAN2.0A/B COMPACT HIGH-PRECISION GYROSCOPE FOR INDUSTRIAL & AGRICULTURAL USE

▶ KEY FEATURES

★ Real-time azimuth output

★ Strong vibration resistance
★ Compact & lightweight

★ Long life & high stability
★ Wide voltage input (DC 9–36V)

★ Cost-effective design
★ CAN2.0A/CAN2.0B optional

★ All-solid-state construction

▶ APPLICATION

★ Automated agricultural machinery

★ Precision agriculture
★ Forklift trucks & cultivators

★ AGV and industrial vehicles

▶ GENERAL DESCRIPTION

TL720D is a high-precision gyroscope built on the latest MEMS inertial measurement platform. By applying a dynamic attitude algorithm to the gyroscope’s angular rate and forward-axis acceleration, it provides real-time horizontal azimuth output. With integrated inertial navigation and multi-model data fusion, it effectively minimizes short-term gyro drift. Designed for automated agricultural machinery, AGVs, and forklifts, it enhances navigation accuracy and efficiency, making it an essential component for next-generation precision agriculture and industrial automation.

Detailed Data

TL720D-C2/C3		PARAMETERS
Heading measure axis		Z axis heading angle (±180)°
Bandwidth		>100Hz
Position accuracy		<2mm/m (According to the angle conversion)
Nonlinear		0.1% of FS
Accelerometer	Accelerometer range	±4g
	Acceleration resolution	0.001g
	Acceleration accuracy	5mg
	Bias instability (allan)	0.05mg
	Speed random walk coefficient(allan)	0.015m/s/sqrt(h)
	Bias stability(10s average)	0.15mg
Gyro	Max Gyro Range	±250°/s
	Angle random walk coefficient(allan)	0.30°/sqrt(h)
	Bias stability(10s smooth)	10°/h
Startup time		AGV application: 5 ~ 6s
		AGM application: 1.5s
Input voltage		9~36VDC / 5VDC(optional )
Working current		30mA(12V)
Working temp		-40℃ ~ +80℃
Storage temp		-40℃ ~ +85℃
Vibration		5g~10g
Impact		200g pk,2ms,½sine
Working life		10 years
Output rate		1Hz~100Hz can set
Output signal		CAN2.0A / CAN2.0B(optional )
MTBF		≥98000Hours / times
Insulation resistance		≥100 MΩ
Shockproof		100g@11ms / 3 Axial Direction (Half Sinusoid)
Anti-vibration		10grms / 10~1000Hz
Protection grade		IP67
Weight		≤135g (including 1 meter standard cable)

TL720D-CAN2.0A/B COMPACT HIGH-PRECISION GYROSCOPE FOR INDUSTRIAL & AGRICULTURAL USE 1

TL720D-CAN2.0A/B COMPACT HIGH-PRECISION GYROSCOPE FOR INDUSTRIAL & AGRICULTURAL USE 2

TL720D-CAN2.0A/B COMPACT HIGH-PRECISION GYROSCOPE FOR INDUSTRIAL & AGRICULTURAL USE 3
