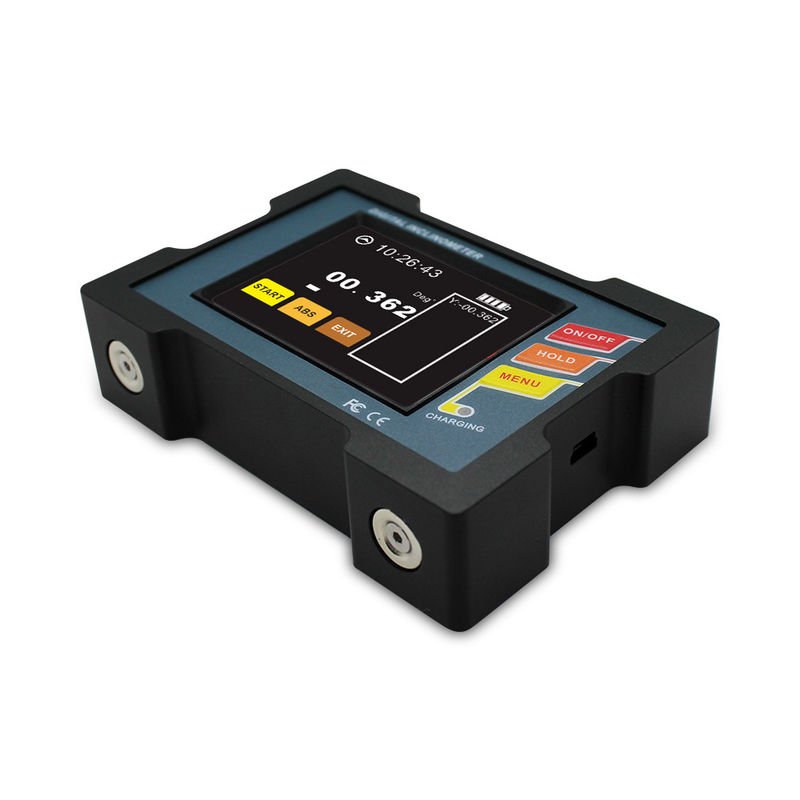

RION Touch Screen Bluetooth Single axis Digital Inclinometer With Magnetic Base
▶ FEATURES
★ Best accuracy:<0.03°
★ Repeatability:0.03°
★ Angle resolution:0.001°
★ Maximum measure range:±46°
★ User can set the alarm value by himself
★ Data store function
★ Absolute/Relative measurement can switch
★ Double benchmark strong magnet installation
★ Working Temperature : -10°～ +70℃
★ Automatic angle cross compensation
★ User can calibrate ZERO by himself
★ Built-in rechargable industry batteries
★ Night vision fours colors screen
★ IP54 protection grade
★ °/mm/m Dual units switch function
★ Three kinds of measurement mode selectable (radian, angle, mm)
▶ APPLICATION
★ Building construction
★ Automobile four-wheel testing
★ Road slope
★ Machinery installation
★ Piping installation
★ Pan tilt angle monitoring
★ Turntable monitoring
★ medical instruments
DMI810-46-BT development professional for all kinds of industrial equipment platform Angle through bluetooth reading measurement data of a digital tilt, dual-core measurement unit, temperature compensation in the process of measurement, play the absolute operation advantage of micro mechanical and electronic principle, ensure the long-term stability and repeatability.
 DMI810-46-BT |
Parameters | Unit |
| Measure axis | single axis | axis |
| Angle measure range | ±46 | ° |
| Angle measure accuracy ( full measure range ) | <0.03 | ° |
| Angle measure resolution | 0.001 | ° |
| mm/m measure range | 1035 | mm/m |
| mm/m measure accuracy | 0.5 | mm/m |
| mm/m measure resolution | 0.02 | mm/m |
| Repeatability | 0.03 | ° |
| Measure mode |
Angle,Degree/Minute/Second,Mm/m Three modes can be set |
|
|
Working Temperature |
-10℃～ +70℃ | |
|
Working Humidity |
85%RH | |
| Power supply | 3.7V Charging Lithium Battery | |
|
Ideal Charging Time |
5 hours | |
|
Battery Continuous Working Tim |
11小时( Non bluetooth ) | |
| Data output signal | USB2.0 (Virtual serial device) and Bluetooth read transmission | |
| Match with PC software | VC programm software | |
| Connect plug in |
Standard Usb Connector, Rechargeable |
|
|
Shock Resistance |
10g@11ms,3 Axial Direction (Half Sinusoid) |
|
|
Shock Impact |
10grms,10～100Hz | |
|
Waterproof Grade |
IP54 | |
| Material |
Aluminum Alloy Anodizing |
|
| LCD screen |
64 True Colors Night Vision Display Screen |
|
| LCD Visible Area Size | L57.6*W43.2mm | |
| Bluetooth size | L24.57×W11×H67.07mm | |
| Bluetooth weight | ≤40g | |
| Digital inclinometer size | L109×W77×H27mm | |
| Digital inclinometer weight | ≤350g | |
