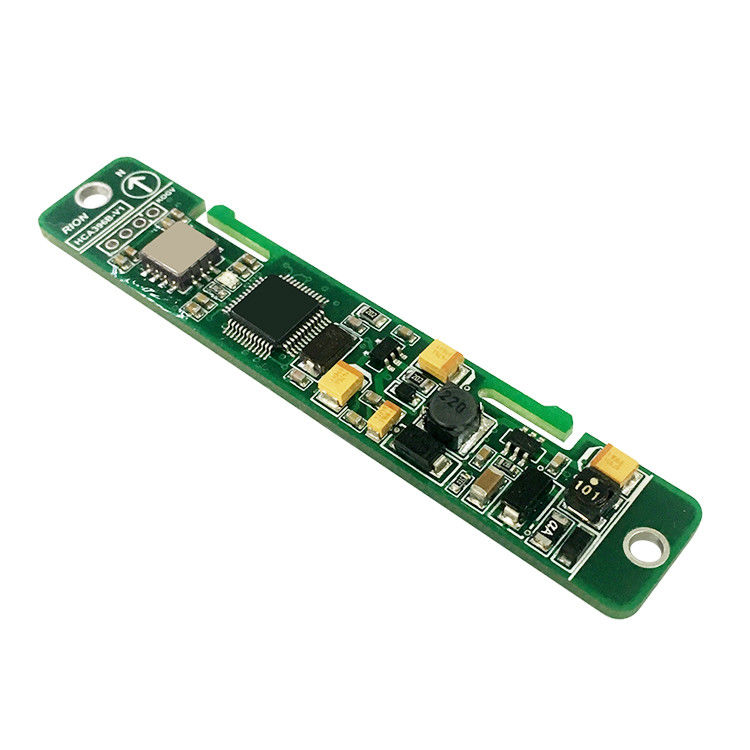

HCA396B 2 AXIS HIGH ACCURACY INCLINOMETER SENSOR MODULE RANGE: ±90°

Name: HCA396B 2 AXIS HIGH ACCURACY INCLINOMETER SENSOR MODULE RANGE: ±90°
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: HCA396B
Price: 45 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: Rion

Certification: CE, ISO

Model Number: HCA396B

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: US$45

Packaging Details: 1pcs/box with sponge inside, 100pcs/ctn

Delivery Time: 7 days for samples

Payment Terms: T/T,Paypal

Supply Ability: 3000 Piece/Pieces per Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              TL720D IMU Gyroscope Sensor, Tiller IMU Gyroscope Sensor, Combine Harvester IMU Gyroscope Sensor


Range:	±90°	Measure Axis:	X,Y
Resolution:	0.001°	Measure Accuracy:	0.01°
Output Signal:	RS485/RS232/TTL	Electromagnetic Compatibility:	According To EN61000 And GBT17626
Vibration Resistant:	10grms、10～1000Hz	Weight:	5g

Range:	±90°
Measure Axis:	X,Y
Resolution:	0.001°
Measure Accuracy:	0.01°
Output Signal:	RS485/RS232/TTL
Electromagnetic Compatibility:	According To EN61000 And GBT17626
Vibration Resistant:	10grms、10～1000Hz
Weight:	5g

Description

HCA396B 2 AXIS HIGH ACCURACY INCLINOMETER SENSOR MODULE RANGE: ±90°

THCA396B 2 AXIS HIGH ACCURACY INCLINOMETER SENSOR MODULE RANGE: ±90°

▶ PRODUCTION

HCA396B is a three-axis high-precision inclinometer sensor developed by RION, which is used in industrial engineering industries such as foundation pit inclination, monitoring, and bridge inspection. Inheriting the stability of the HCA series, the accuracy is effectively improved, the temperature drift performance is superior, and the long-term stability is less than 0.001 degrees. At the same time, through the 5th-order filtering algorithm, the roll angle and pitch angle of the sensor can be solved by the 3-axis gravity compound operation. Each product is trimmed within the factory by a multi-faceted turntable to correct the three-axis cross-axis error to ensure minimal impact between the measuring axes in a large range of applications. The product has built-in RS485 interface, and the interface integrates the warranty circuit to ensure that it will not affect the 485 bus. The power supply also uses multi-stage voltage regulation and overvoltage and overcurrent protection circuits. The products are truly industrial grade products with reliable performance and good expandability, suitable for use in a variety of harsh industrial control environments.

▶ MAIN FEATURE

★ 2 axis inclination measure

★ range: ±90°

★ size:L81.5×W15.2×H8.65mm

★ DC 9~14v power supply

★ working temp.: -40~+85℃

★ resolution: 0.001°

▶ APPLICATION

★ Railway locomotive monitoring

★ Bridge inspection

★ Shield pipe jacking application

★ Geological equipment tilt monitoring

★ Oil drilling equipment inspection

★ Various engineering machinery inclination measurement

▶ SPECIFICATION

HCA396B	CONDITION	PARAMETERS	UNIT
Range		±90	°
Measure axis		X,Y
Resolution		0.001	°
Measure accuracy	@25℃	0.01	°
Long-term stability		0.01	°
Zero temp. coefficient	-40～85℃	±0.0002	°/℃
Sensitivity temp. coefficient	-40～85℃	≤50	ppm/℃
Power-on startup time		1	S
Response bandwidth		5	Hz
output signal	RS485/RS232/TTL
Electromagnetic compatibility	According to EN61000 and GBT17626
MTBF	≥50000 h/time
Insulation resistance	≥100 Megohm
Impact resistance	100g@11ms,Triaxial and identical (half sine wave)
Vibration resistant	10grms,10～1000Hz
Weight	5g
