HCA726S HIGH ACCURACY CAN2.0 INCLINOMETER WITH FULL TEMP-COMPENSATION
HCA716 HCA726 digital output inclinometer pitch ro...
▶ PRODUCT DESCRIPTION

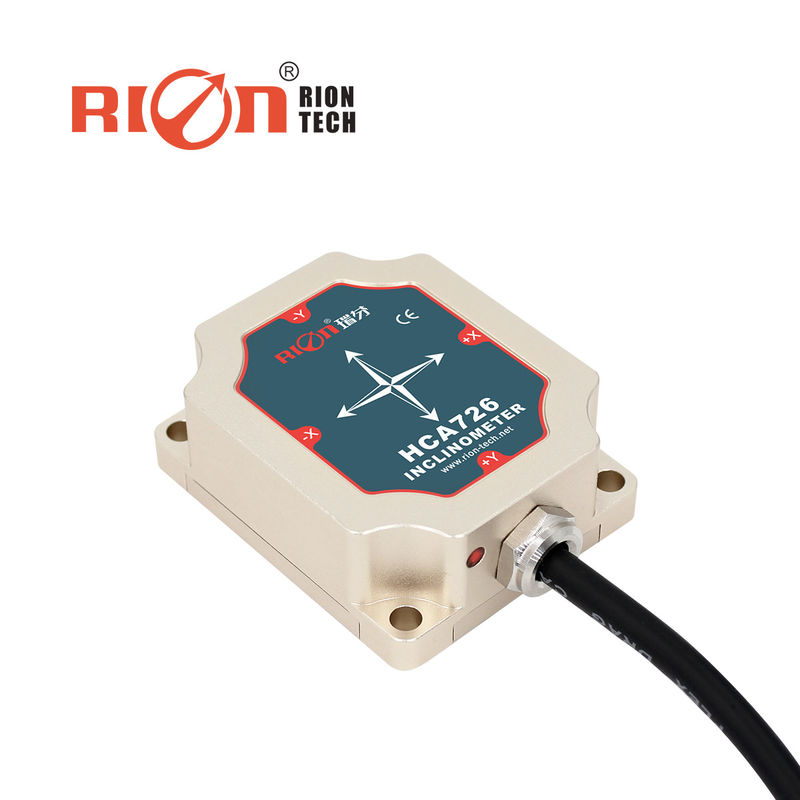

HCA716S / HCA726S is a small volume high-precision single / dual-axis inclinometer developed by RION Technology for industrial field control. It adopts CAN2.0A/B serial access interface. Built-in high-precision 24bit A / D differential converter, through the 5th order filtering algorithm, can measure the tilt and pitch angle of the sensor output relative to the horizontal plane. The product integrates the latest technology main MEMS tilting unit, the measuring range up to ± 180 °, and the full-scale accuracy is 0.01 °, which can easily achieve dual-axis and single-axis tilt measurement. The product belongs to a real industrial grade product, with reliable and stable performance, good scalability, and multiple output options. It is suitable for the application of monitoring of ancient buildings, dilapidated buildings, ancient walls, etc., and large-scale high-precision measurement in industrial sites.
▶ PRODUCT FEATURES
★ Single/dual Axis Inclinometer ★ Measuring Range :±1～±180° optional
★ Accuracy: refer to the technical data ★ Wide voltage input: DC9～36V
★ Wide temperature working: -40～+85℃ ★ Resolution: 0.001°
★ IP67 protection class ★ Highly anti-vibration performance >100g
★ Direct lead cable interface ★ Small size : 54×46×20.5mm(customized)
▶ APPLICATION
★ Monitoring of ancient buildings and dilapidated buildings ★ Monitoring of bridges and large lands
★ Leveling of construction vehicles ★ Mining machinery, oil drilling equipment
★ Medical equipment angle control ★ Railway gauge ruler and gauge leveling
★ Underground drilling rig attitude navigation ★ Geological equipment tilt monitoring
★ Elevation angle measurement of directional satellite communication antenna
▶ SPECIFICATION
 HCA716/726-C2/C3 |
CONDITION | PARAMETER | UNIT | |||||
| Measure range | ±10 | ±30 | ±60 | ±90 | ±180 | ° | ||
| Measure axis | X Y | X Y | X Y | X Y | Vertical X axis | axis | ||
| Resolution | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 | ° | ||
| Measure accuracy | MAXE | Room temp. | 0.008 | 0.01 | 0.01 | 0.02 | 0.02 | ° |
| RMSE | Room temp. | 0.004 | 0.005 | 0.005 | 0.006 | 0.006 | ° | |
| Long temp. stability | <0.02 | <0.02 | <0.02 | <0.02 | <0.02 | ° | ||
| Zero Temp.coefficient | -40～85℃ | ±0.0005 | ±0.0005 | ±0.0005 | ±0.0005 | ±0.0005 | °/℃ | |
| Sensitivity temp-coeffi | -40～85℃ | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 | %/℃ | |
| Power on time | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | S | ||
| Response frequency | 20 | 20 | 20 | 20 | 20 | Hz | ||
| Interface | CAN2.0A/CAN2.0B | |||||||
| EMC | According to EN61000 and GBT17626 | |||||||
| MTBF | ≥98000 Hours/times | |||||||
| Insulation Resistance | ≥100M | |||||||
| Shockproof | 100g@11ms,3 Axial Direction (Half Sinusoid) | |||||||
| Anti-vibration | 10grms,10～1000Hz | |||||||
| Protection grade | IP67 | |||||||
| Cables |
Standard 1M length,wearproof,grease proofing,wide temperature, Shielded cables 4*0.2mm2 |
|||||||
| Weight | ≤150g (including 1 meter cable) | |||||||
