Model Number: HCA520/HCA528
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 335 USD/pcs
Packaging Details: carton
Delivery Time: 7 word days
Payment Terms: T/T, PayPal
Supply Ability: 500 pcs/month
Measure Range: |
±30° |
Measure Axis: |
Pitch And Roll |
Resolution: |
0.001° |
Measure Accuracy: |
0.005° |
Long Term Stability: |
0.01° |
Zero Temp.coefficient: |
±0.002°/℃ |
Size: |
L90 × W59 × H34mm |
Measure Range: |
±30° |
Measure Axis: |
Pitch And Roll |
Resolution: |
0.001° |
Measure Accuracy: |
0.005° |
Long Term Stability: |
0.01° |
Zero Temp.coefficient: |
±0.002°/℃ |
Size: |
L90 × W59 × H34mm |

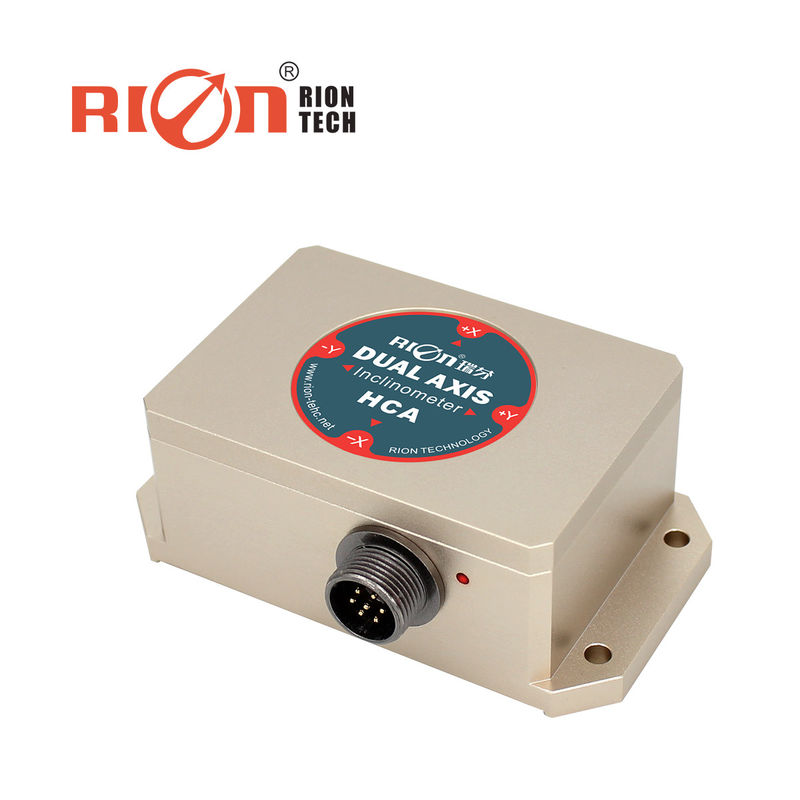

Aluminum Case High Accuracy Voltage Inclinometer Vehicle leveling Slope Meter Tilt Monitoring Sensor
▶ TECHNICAL DATA
| HCA520T | CONDITION | PARAMETERS | UNIT | |
| Measure range | ±10 | ±30 | ° | |
| Zero output | 0° output | 2.5 | 2.5 | V |
| Measure axis | X / XY | X / XY | AXIS | |
| Resolution | 0.001 | 0.001 | ° | |
| Measure accuracy | @25℃ | 0.005 | 0.01 | ° |
| Zero Temp.coefficient | -40～85℃ | ±0.0005 | ±0.0008 | °/℃ |
| Sensitivity temp-coeffi | -40～85℃ | ≤100 | ≤100 | ppm/℃ |
| Power on time | 0.5 | 0.5 | S | |
| Response time | 0.02 | 0.02 | s | |
| Response frequency | 20Hz | |||
| output signal | 0~5V | |||
| EMC | According to EN61000 and GBT17626 | |||
| MTBF | ≥50000hours/times | |||
| Insulation Resistance | ≥100MΩ | |||
| Shockproof | 100g@11ms,3 Axial Direction (Half Sinusoid) | |||
| Anti-vibration | 10grms,10～1000Hz | |||
| Protection grade | IP67 | |||
| Cables | Standard 1 meter length, wear-resistant, wide temperature, shielded cable 4 * 0.4mm2 aviation connector | |||
| Weight | 190g(without cable) | |||
* This parameter only list ± 10 °, ± 30 ° series for reference. For other measurement ranges, please refer to the nearest neighbor parameter.
▶ FEATURES
★ Single / dual axis inclination measurement
★ Range ± 1～± 90° optional
★ Accuracy: Refer to technical data
★ Wide voltage input 9～36V
★ Output mode 0～5V
★ Wide temperature operation -40 ℃～+ 85 ℃
★ IP67 protection
★ High vibration resistance> 2000g
★ High resolution 0.001 °
★ Small size L90 × W59 × H34mm
▶ APPLICATION
★ Equipment vehicle leveling
★ Bridge and Dam monitoring
★ High-altitude platform safety protection
★ Angle control of medical equipment
★ Attitude navigation of underground drilling rig
★ Leveling of railway gauge and gauge
★ Direction measurement based on tilt angle
★ Tilt monitoring of geological equipment
★ Mining machinery, oil drilling equipment
★ Equipment level control
★ Alignment control , curve control
★ Pitch angle measurement of directional satellite communication antenna
ELECTRICAL CONNECTION
SINGLE AXIS CABLE WIRE CONNECTION
| Wire Color function | RED | WHITE | GREEN | BLACK | GRAY |
|
DC9~36V Power supply positive |
Out X X axis output voltage |
NC |
GND Power negative |
Signal ground |
