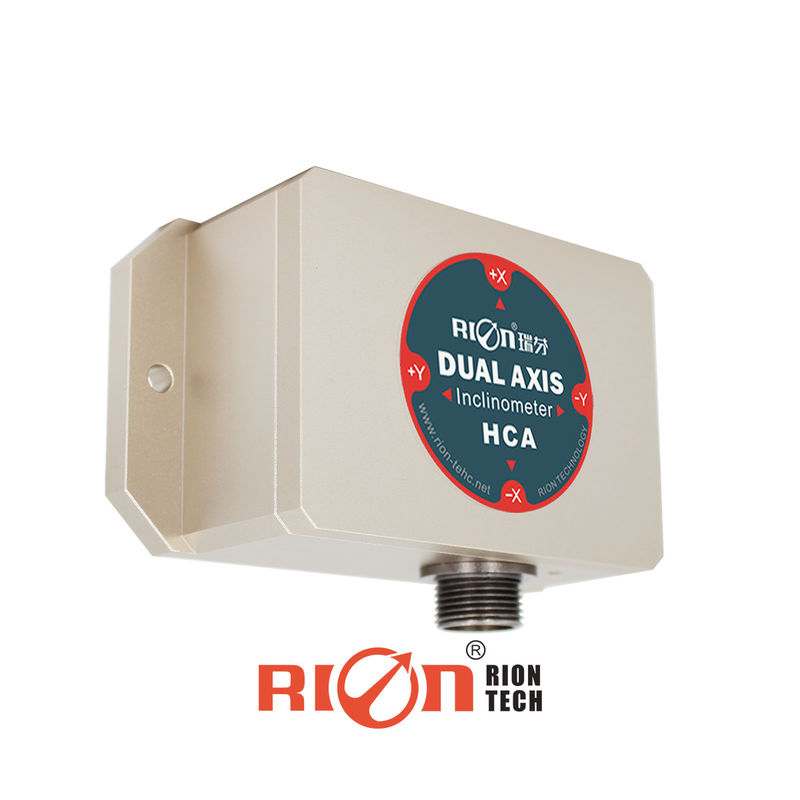

RION Current 4-20mA MEMS Inclinometer High Precision Angle Finder Instrument
Click here below for download the full datasheet of HCA528T-N
HCA518T HCA528T-N HIGH PRECISION CURRENTY TYPE INC...
▶ FEATURES
★ Single / dual axis inclination measurement
★ Range ±1～±60 ° optional
★ Accuracy: Refer to technical data
★ Wide voltage input 11.5～36V
★ Output mode 4~20mA
★ Wide temperature operation -40～+ 85 ℃
★ IP67 protection
★ High vibration resistance> 2000g
★ High resolution 0.001 °
★ Small size L90mm × W59mm × H34mm (customizable)
▶ APPLICATION
★ Equipment vehicle leveling
★ Bridge and Dam monitoring
★ High-altitude platform safety protection
★ Angle control of medical equipment
★ Attitude navigation of underground drilling rig
★ Leveling of railway gauge and gauge
★ Direction measurement based on tilt angle
★ Tilt monitoring of geological equipment
★ Mining machinery, oil drilling equipment
★ Equipment level control
★Alignment control , curve control
★ Pitch angle measurement of directional satellite communication antenna
▶ TECHNICAL DATA
| HCA518T/HCA528T-N | CONDITION | PARAMETERS | UNIT | ||||
| Measure range | ±10 | ±30 | ±60 | ±90 | ° | ||
| Measure axis | X/XY | X/XY | X/XY | X/XY | axis | ||
| Zero output | 0° output | 12 | 12 | 12 | 12 | mA | |
| Resolution | 0.001 | 0.001 | 0.001 | 0.001 | ° | ||
| Measure accuracy | MAXE | Room temp. | 0.005 | 0.01 | 0.02 | 0.03 | ° |
| RMSE | Room temp. | 0.003 | 0.003 | 0.005 | 0.008 | ° | |
| Zero Temp. coefficient | -40～85℃ | 0.0005 | 0.0005 | 0.0005 | 0.0005 | °/℃ | |
| Sensitivity temp. coefficient | -40～85℃ | ≤100 | ≤100 | ≤100 | ≤100 | ppm/℃ | |
| Power on time | 0.5 | 0.5 | 0.5 | 0.5 | S | ||
| Sensitivity temp. coefficient | 20Hz | ||||||
| EMC | According to EN61000 and GBT17626 | ||||||
| MTBF | ≥50000 hours/times | ||||||
| Insulation Resistance | ≥100MΩ | ||||||
| Shockproof | 100g@11ms,3 Axial Direction (Half Sinusoid) | ||||||
| Anti-vibration | 10grms,10～1000Hz | ||||||
| Protection glass | IP67 | ||||||
| Cables | Standard configuration: 2m length, wear-resistant, wide temperature, shielded cable 7P * 6.8mm aviation connector, cable weight ≤110g | ||||||
| Weight | ≤250g(Excluding cable) | ||||||
▶ MECHANICAL PARAMETERS
○ Connector: aviation connector
(1m Direct Leading Cable can Be Customized)
○ Protection level: IP67
○ Shell material: aluminum alloy shield oxidation
○ Installation: Three M4 screws
