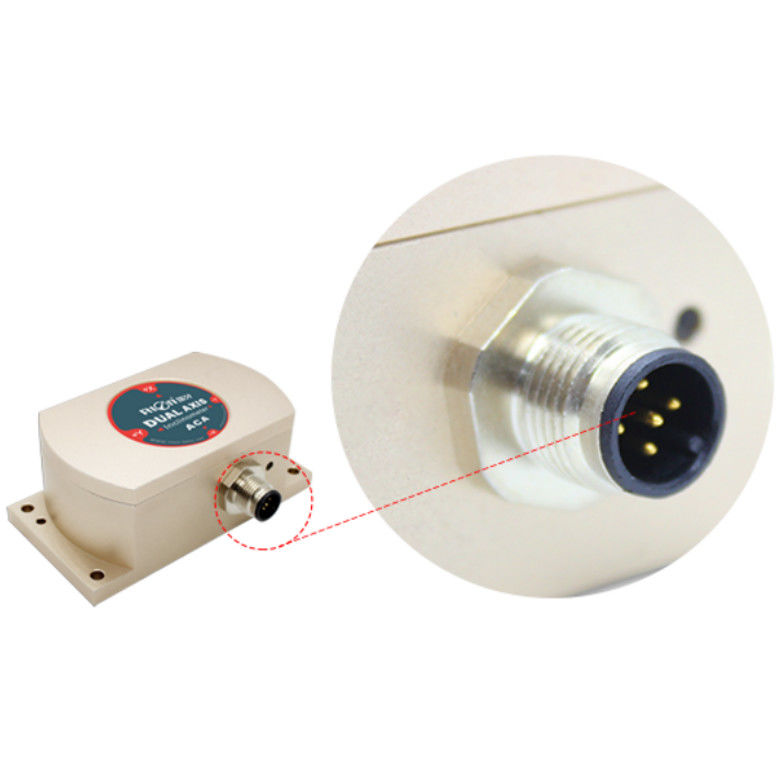

Auto Angle Control Tilt Level Sensor , Medical Instruments Tilt Angle Meter

Product Details

Place of Origin: China

Brand Name: RION

Certification: CE, ISO

Model Number: ACA826T-5-232

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiable

Packaging Details: Carton

Delivery Time: 10 days

Payment Terms: T/T, PayPal

Supply Ability: 1000/month

Get Best Price
Contact Now
Specifications
Highlight:

RS232 Tilt Level Sensor

,

TTL Tilt Level Sensor

,

IP67 Tilt Angle Meter

Resolution:
0.0005°
Measure Accuracy:
0.002°
Long Term Stability:
0.01°
Zero Temp Coefficient:
±0.0002°/℃
Protection:
IP67
Output:
RS232/RS485/RS422/TTL
Resolution:
0.0005°
Measure Accuracy:
0.002°
Long Term Stability:
0.01°
Zero Temp Coefficient:
±0.0002°/℃
Protection:
IP67
Output:
RS232/RS485/RS422/TTL
Description
Auto Angle Control Tilt Level Sensor , Medical Instruments Tilt Angle Meter

Tilt Level Sensor For Medical Instruments Tilt Angle Measure Auto Angle Control



TECHNICAL DATA

ACA826T CONDITIONS PARAMETERS UNIT
Measure range   ±03 ±10 ±15 ±30 °
Measure axis   X/XY X/XY X/XY X/XY axis
Resolution   0.0005 0.0005 0.0005 0.0005 °
Measure accuracy @25℃ 0.002 0.003 0.005 0.01 °
Long term stability   0.01 0.01 0.02 0.02
Zero temp coefficient -40~85° ±0.0002 ±0.0002 ±0.0002 ±0.0002 °/℃
Sensitivity temp coefficient -40~85° ≤50 ≤50 ≤50 ≤50 ppm/℃
Power on time   0.5 0.5 0.5 0.5 S
Response time   0.02 0.02 0.02 0.02 S
Output rate 5Hz,15Hz,35Hz,50Hz Can be setting
Ouput signal RS232/RS485/RS422/TTL
EMC According to EN61000 and GBT17626
MTBF ≥50000hours/times
Insulation Resistance ≥100M
Shockproof 100g@11ms,Times/Axis(half sinusoid)
Anti-vibration 10grms,10~1000Hz
Protection grade IP67
Cables

Standard 1M length,wearproof,wide temperature,

Shielded cables4*0.4mm2 air-plug connector

Weight 235g(without cable )

*This performance parameters only cover the measurement ranges of ±03°, ±10°,±15°, and ±30°. For other measurement ranges, please refer to the nearest parameters.



APPLICATION

  • Engineering vehicles automatic leveling
  • Bridge & dam detection
  • Laser equipment position
  • Medical facilities angle control
  • Underground drill posture navigation
  • Railway gauging rule , gauge equipment leveling
  • Precise machine tool level control
  • Geological equipment inclined monitoring

Auto Angle Control Tilt Level Sensor , Medical Instruments Tilt Angle Meter 0



▶ ELECTRONIC CHARACTERISTICS



PARAMETERS  CONDITIONS MIN STANDARD MAX UNIT
Power supply standard 9 12,24 36 V
customized   Other voltage   V
Working current 12V   40   mA
24V   22   mA
Working temperature   -40   +85
Store temperature   -40   +85





▶ Dimension

Auto Angle Control Tilt Level Sensor , Medical Instruments Tilt Angle Meter 1
