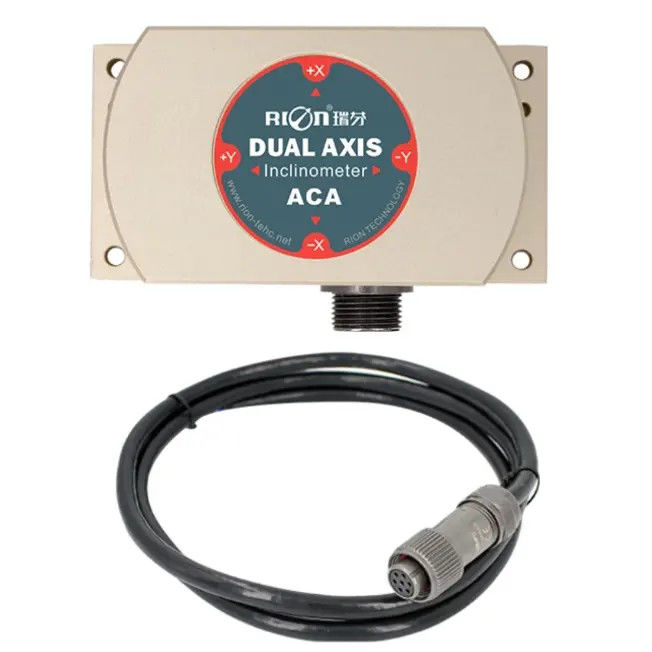

ACA826T High Accuracy MODBUS inclinometer Dual / Single AxisTilt Sensor

Product Details

Place of Origin: China

Brand Name: RION

Certification: CE, ISO

Model Number: ACA826T-MB

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 680

Packaging Details: Carton

Delivery Time: 10 days

Payment Terms: T/T, PayPal

Supply Ability: 1000/month

Get Best Price
Contact Now
Specifications
Highlight:

High Accuracy MODBUS Inclnometer

,

MODBUS Inclnometer Tilt Sensor

,

0.0007 Resolution MODBUS Inclnometer

Measure Range:
±1~30°
Measure Axis:
Dual Axis/single Axis
Resolution:
0.0005°
Measure Accuracy:
0.002°
Long Term Stability:
0.01°
Zero Temp Coefficient:
±0.0002°/℃
Protection:
IP67
Output:
RS232/RS485/RS422/TTL
Measure Range:
±1~30°
Measure Axis:
Dual Axis/single Axis
Resolution:
0.0005°
Measure Accuracy:
0.002°
Long Term Stability:
0.01°
Zero Temp Coefficient:
±0.0002°/℃
Protection:
IP67
Output:
RS232/RS485/RS422/TTL
Description
ACA826T High Accuracy MODBUS inclinometer Dual / Single AxisTilt Sensor

ACA826T High Accuracy MODBUS inclinometer Dual / Single AxisTilt Sensor



ACA826T High Accuracy MODBUS inclinometer Dual / Single AxisTilt Sensor 0



TECHNICAL DATA

ACA826T CONDITIONS PARAMETERS UNIT
Measure range   ±03 ±10 ±15 ±30 °
Measure axis   X/XY X/XY X/XY X/XY axis
Resolution   0.0005 0.0005 0.0005 0.0005 °
Measure accuracy @25℃ 0.002 0.003 0.005 0.01 °
Long term stability   0.01 0.01 0.02 0.02
Zero temp coefficient -40~85° ±0.0002 ±0.0002 ±0.0002 ±0.0002 °/℃
Sensitivity temp coefficient -40~85° ≤50 ≤50 ≤50 ≤50 ppm/℃
Power on time   0.5 0.5 0.5 0.5 S
Response time   0.02 0.02 0.02 0.02 S
Output rate 5Hz,15Hz,35Hz,50Hz Can be setting
Ouput signal RS232/RS485/RS422/TTL
EMC According to EN61000 and GBT17626
MTBF ≥50000hours/times
Insulation Resistance ≥100M
Shockproof 100g@11ms,Times/Axis(half sinusoid)
Anti-vibration 10grms,10~1000Hz
Protection grade IP67
Cables

Standard 1M length,wearproof,wide temperature,

Shielded cables4*0.4mm2 air-plug connector

Weight 235g(without cable )

*This performance parameters only cover the measurement ranges of ±03°, ±10°,±15°, and ±30°. For other measurement ranges, please refer to the nearest parameters.



ACA816T / ACA826T is a full-temperature compensated high-precision single / dual-axis MODBUS output inclinometer professionally developed by Ruifen Technology for high-precision level measurement and leveling. The high-resolution 0.0005 ° can completely replace the traditional high-precision level. . Digital signal transmission, supporting professional computer software, accurate data measurement and recording, output interface RS232, RS485, RS422, TTL optional. The characteristics of non-contact installation make the ACA816T / ACA826T have super strong system integration, easy installation, just fix the sensor on the surface of the measured object with screws, the horizontal angle of the object can be automatically calculated, simple to use. It has strong resistance to external electromagnetic interference and strong ability to withstand shock and vibration. It has a great competitive advantage among domestic counterparts.





APPLICATION

  • Engineering vehicles automatic leveling
  • Bridge & dam detection
  • Laser equipment position
  • Medical facilities angle control
  • Underground drill posture navigation
  • Railway gauging rule , gauge equipment leveling
  • Precise machine tool level control
  • Geological equipment inclined monitoring





▶ ELECTRONIC CHARACTERISTICS



PARAMETERS  CONDITIONS MIN STANDARD MAX UNIT
Power supply standard 9 12,24 36 V
customized   Other voltage   V
Working current 12V   40   mA
24V   22   mA
Working temperature   -40   +85
Store temperature   -40   +85







PRODUCT INSTALLATION DIRECTION



ACA826T High Accuracy MODBUS inclinometer Dual / Single AxisTilt Sensor 1



▶ Dimension

ACA826T High Accuracy MODBUS inclinometer Dual / Single AxisTilt Sensor 2
