Dual Axis Pitch Roll Angle Precise Tilt Angle Meter For Medical Equipment

Product Details

Place of Origin: China

Brand Name: RION

Certification: CE, ISO

Model Number: ACA628T-20

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiable

Packaging Details: Carton

Delivery Time: 10 days

Payment Terms: T/T, PayPal

Supply Ability: 1000/month

Get Best Price
Contact Now
Specifications
Highlight:

Pitch Roll Tilt Angle Meter

,

Tilt Angle Meter 36v

,

Roll Angle Tilt Sensor Inclinometer

Measure Range:
1~60°
Measure Axis:
Dual Axis
Resolution:
0.0007°
Temperature Drift:
0.0005°/℃
Long Term Stability:
0.01°~0.04°
Weight:
235g
Protection:
IP67
Power Supply:
9~36v
Measure Range:
1~60°
Measure Axis:
Dual Axis
Resolution:
0.0007°
Temperature Drift:
0.0005°/℃
Long Term Stability:
0.01°~0.04°
Weight:
235g
Protection:
IP67
Power Supply:
9~36v
Description

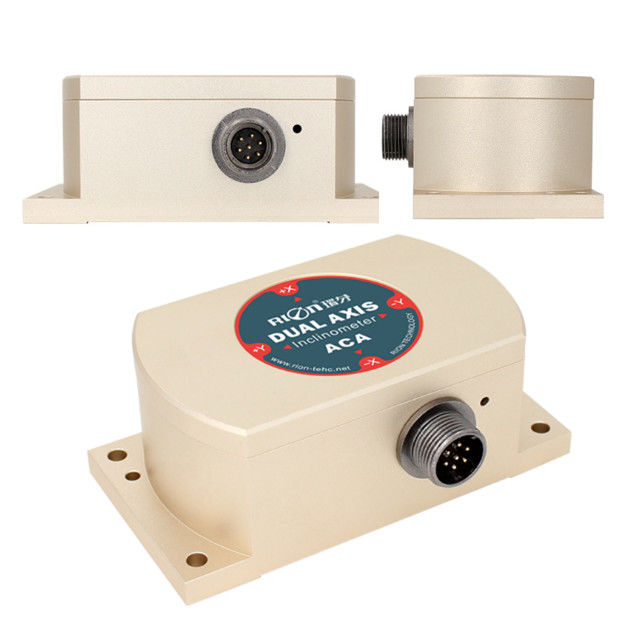

Dual Axis Pitch Roll Angle Precise Tilt Angle Meter For Medical Equipment

Precise Tilt Angle Measure For Medical Equipment Dual Axis Pitch Roll Angle For Medical Device



ACA628T-N is a high-precision dual-axis inclinometer with full temperature compensation and current output. it adopts a high-precision 24bit A/D differential converter to ensure the current output linearity of the product, so the user does not need to make the linearity correction. it is stable, reliable and easy to use. The system integrates a high-resolution temperature sensor, coworking with the MCU, processing secondary temperature compensation, by which the full temperature zero drift can be achieved at 0.0005°/℃, and the accuracy at room temperature can reach 0.003° for small measure range. it output by 4~20mA comparing with voltage output, it can transmit much longer distance as 2km. The feature of non-contact installation makes this product compatible for different systems. Just fix the sensor on the surface of the object to be measured with screws, and then it automatically calculate the inclination angle of the object. It is convenient to install, easy to operate, robust to resist interference and vibration, it has prominent advantage against its counterparts.



▶ TECHNICAL DATA

ACA618T/628T-N Conditions Parameters Unit
Measure range   ±10 ±30 ±60 ±90 °
Measure axis   X / XY X / XY X / XY X / XY axis
Zero output 0° output 12 12 12 12 mA
Resolution   0.0007 0.0007 0.0007 0.0007 °
Measure accuracy MAXE Room temp. 0.003 0.01 0.02 0.03 °
RMSE Room temp. 0.003 0.003 0.005 0.008 °
Zero Temp. coefficient -40~85℃ 0.0005 0.0005 0.0005 0.0005 °/℃
Sensitivity temp-coefficient -40~85℃ ≤50 ≤50 ≤50 ≤50 ppm/℃
Power on time   0.5 0.5 0.5 0.5 S
Response frequency 20Hz
EMC According to EN61000 and GBT17626
MTBF ≥98000 hours/times
Insulation Resistance ≥100MΩ
Shockproof 100g@11ms,3 axial direction (half sinusoid)
Anti-vibration 10grms,10~1000Hz
Protection grade IP67
Cables Standard configuration: 2m length, wear-resistant, wide temperature, shielded cable 7P * 6.8mm aviation connector, cable weight ≤200g
Weight ≤260g(without cable )



















































FEATURES

  • Single axis inclination measurement
  • Measure Range :±1~±60° optional
  • Resolution: 0.001°
  • Temperature drift ±0.0008°/℃
  • Highly anti-vibration performance >2000g
  • Wide voltage input: 9~36V
  • Wide temperature working: -40~+85℃
  • IP67 protection grade



APPLICATION

  • Engineering vehicles automatic leveling
  • Bridge & dam detection
  • Laser equipment position
  • Medical facilities angle control
  • Underground drill posture navigation
  • Railway gauging rule , gauge equipment leveling
  • Precise machine tool level control
  • Geological equipment inclined monitoring

Dual Axis Pitch Roll Angle Precise Tilt Angle Meter For Medical Equipment 0

▶ ELECTRICAL CONNECTION

SINGLE AXIS ELECTRICAL CONNECTION

Wire Color function RED WHITE GREEN BLACK GRAY

DC11.5~36V

Power supply positive

Out X

X axis

output current

NC

GND

Power supply negative

Signal GND



Dual Axis Pitch Roll Angle Precise Tilt Angle Meter For Medical Equipment 1



PRODUCT INSTALLATION DIRECTION





Dual Axis Pitch Roll Angle Precise Tilt Angle Meter For Medical Equipment 2



▶ Dimension

Dual Axis Pitch Roll Angle Precise Tilt Angle Meter For Medical Equipment 3
