Product Details
Place of Origin: China
Brand Name: RION
Certification: CE, ISO
Model Number: ACA628T-10
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Carton
Delivery Time: 10 days
Payment Terms: T/T, PayPal
Supply Ability: 1000/month
Measure Range: |
1~30° |
Measure Axis: |
Single Or Dual Axis |
Resolution: |
0.0007° |
Temperature Drift: |
0.0005°/℃ |
Long Term Stability: |
0.01°~0.04° |
Weight: |
235g |
Function: |
Precise Angle Measure |
Response Frequency: |
20Hz |
Measure Range: |
1~30° |
Measure Axis: |
Single Or Dual Axis |
Resolution: |
0.0007° |
Temperature Drift: |
0.0005°/℃ |
Long Term Stability: |
0.01°~0.04° |
Weight: |
235g |
Function: |
Precise Angle Measure |
Response Frequency: |
20Hz |

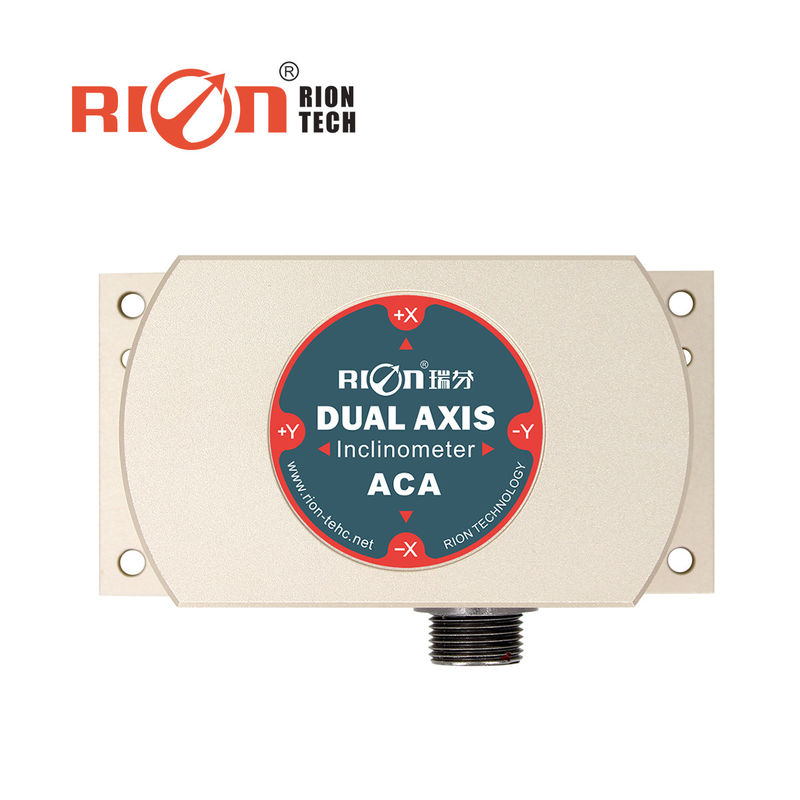

Precise Slope Sensor For Construction Inclination Monitor Analog Inclinometer Sensor For Bridge Tilt Measure
ACA618T/ACA628T-N is a high-precision single/dual-axis inclinometer with full temperature compensation and current output. it adopts a high-precision 24bit A/D differential converter to ensure the current output linearity of the product, so the user does not need to make the linearity correction. it is stable, reliable and easy to use. The system integrates a high-resolution temperature sensor, coworking with the MCU, processing secondary temperature compensation, by which the full temperature zero drift can be achieved at 0.0005°/℃, and the accuracy at room temperature can reach 0.003° for small measure range. it output by 4~20mA comparing with voltage output, it can transmit much longer distance as 2km. The feature of non-contact installation makes this product compatible for different systems. Just fix the sensor on the surface of the object to be measured with screws, and then it automatically calculate the inclination angle of the object. It is convenient to install, easy to operate, robust to resist interference and vibration, it has prominent advantage against its counterparts.
▶ FEATURES
★ Single/Dual-Axis Inclinometer
★ Measuring Range :±1~±90° optional
★ Wide voltage input: 11.5~36V
★ Wide temperature working: -40~+85℃
★ IP67 protection grade
★ Highly anti-vibration performance >2000g
★ High Resolution: 0.0007°
★ Temperature drift: 0.0005°/℃
▶ APPLICATION
★ Engineering vehicles automatic leveling
★ Bridge & dam detection
★ Laser equipment position
★ Medical facilities angle control
★ Underground drill posture navigation
★ Railway gauging rule , gauge equipment leveling
★ Precise machine tool level control
★ Geological equipment inclined monitoring
▶ TECHNICAL DATA
| ACA618T/628T-N | Conditions | Parameters | Unit | ||||
| Measure range | ±10 | ±30 | ±60 | ±90 | ° | ||
| Measure axis | X / XY | X / XY | X / XY | X / XY | axis | ||
| Zero output | 0° output | 12 | 12 | 12 | 12 | mA | |
| Resolution | 0.0007 | 0.0007 | 0.0007 | 0.0007 | ° | ||
| Measure accuracy | MAXE | Room temp. | 0.003 | 0.01 | 0.02 | 0.03 | ° |
| RMSE | Room temp. | 0.003 | 0.003 | 0.005 | 0.008 | ° | |
| Zero Temp. coefficient | -40～85℃ | 0.0005 | 0.0005 | 0.0005 | 0.0005 | °/℃ | |
| Sensitivity temp-coefficient | -40～85℃ | ≤50 | ≤50 | ≤50 | ≤50 | ppm/℃ | |
| Power on time | 0.5 | 0.5 | 0.5 | 0.5 | S | ||
| Response frequency | 20Hz | ||||||
| EMC | According to EN61000 and GBT17626 | ||||||
| MTBF | ≥98000 hours/times | ||||||
| Insulation Resistance | ≥100MΩ | ||||||
| Shockproof | 100g@11ms,3 axial direction (half sinusoid) | ||||||
| Anti-vibration | 10grms,10～1000Hz | ||||||
| Protection grade | IP67 | ||||||
| Cables | Standard configuration: 2m length, wear-resistant, wide temperature, shielded cable 7P * 6.8mm aviation connector, cable weight ≤200g | ||||||
| Weight | ≤260g(without cable ) | ||||||
▶ ELECTRICAL CONNECTION
SINGLE AXIS ELECTRICAL CONNECTION
| Wire Color function | RED | WHITE | GREEN | BLACK | GRAY |
|
DC11.5~36V Power supply positive |
Out X X axis output current |
NC |
GND Power supply negative |
Signal GND |
▶ Dimension
ACA618T ACA628T-N HIGH ACCURACY CURRENT INCLINOME...
