MEMS Angle Transducer 3 Axis Tilt Transducer Dynamic Anti-Vibration Inclination Transducer





▶ PRODUCT APPLICATION

★ Railway locomotive monitoring

★ Oil drilling equipment

★ Geological equipment tilt monitoring

★ Underground drilling rig attitude navigation

★ Ship navigation attitude measurement

★ Shield pipe jacking application

★ Satellite communication vehicle attitude detection

★ Orientation measurement based on inclination angle



PRODUCT DESCRIPTION

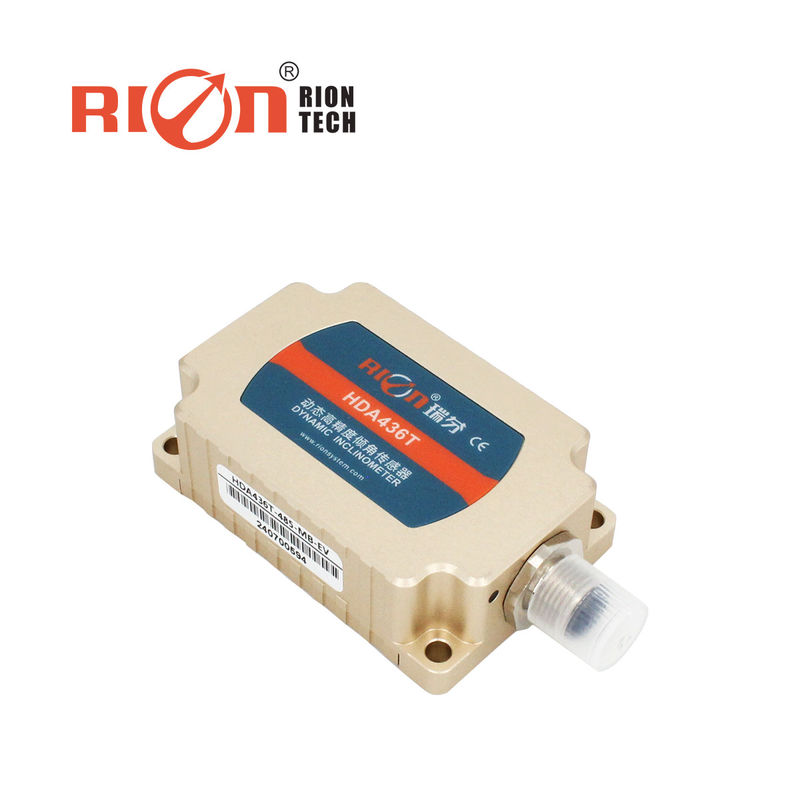

HDA436T/HDA437T A new generation of digital MEMS dynamic tilt sensor launched by RION Technology.

It can measure the attitude parameters (roll, pitch, and azimuth) of a moving carrier, and suitable for tilt angle measurement under motion or vibration.





MEMS Angle 3 Axis Tilt Dynamic Inclination Transducer Anti Vibration 0

Technical Data



HDA436T CONDITION INDEX
Measure range -

Roll ±180°, pitch ±90°, azimuth ±180°

(initial value at power-down is 0°)

Measure axis - X axis / Y axis / Z axis
Resolution - 0.01°
Static accuracy @25℃ ± 0.05°
Dynamic accuracy(RMS) @25℃ ± 0.1°
Gyro range - ±250°/s
Zero bias stability (10s mean) - 8.5°/h
Zero Bias Instability(allan) - 4.5°/h
Angle random walk coefficient(allan) - 0.25°/sqrt(h)
Acceleration range - ±8g
Bias stability(10s mean) - 0.02mg
Bias instability(allan) - 0.005mg
Speed random walk coefficient(allan) - 0.005m/s/sqrt(h)
Zero point temp. coefficient -40~85℃ ±0.01°/℃
Sensitivity temp. coefficient -40~85℃ ≤100ppm/℃
Power-on startup time 1S
Response time 0.01S
Output signal RS485/RS232/TTL
Electromagnetic compatibility According to EN61000 and GBT17626
MTBF ≥ 98000 hours / time
Insulation resistance ≥100 Megohm
Impact resistance 100g @ 11ms,3 axial direction (half sinusoid)
Anti-vibration 10grms,10~1000Hz
Waterproof level IP67
Cable Standard without wiring, optional 2m M12 aviation plug with PVC unshielded cable
Weight ≤165g (excluding cables)





INSTALLATION METHOD

MEMS Angle 3 Axis Tilt Dynamic Inclination Transducer Anti Vibration 1



▶ MECHANICAL PARAMETERS

○ Connector: M12 aviation plug 5P connector

○ Protection level: IP67

○ Shell material: frosted aluminum alloy

○ Installation: Four M4 screws

MEMS Angle 3 Axis Tilt Dynamic Inclination Transducer Anti Vibration 2
