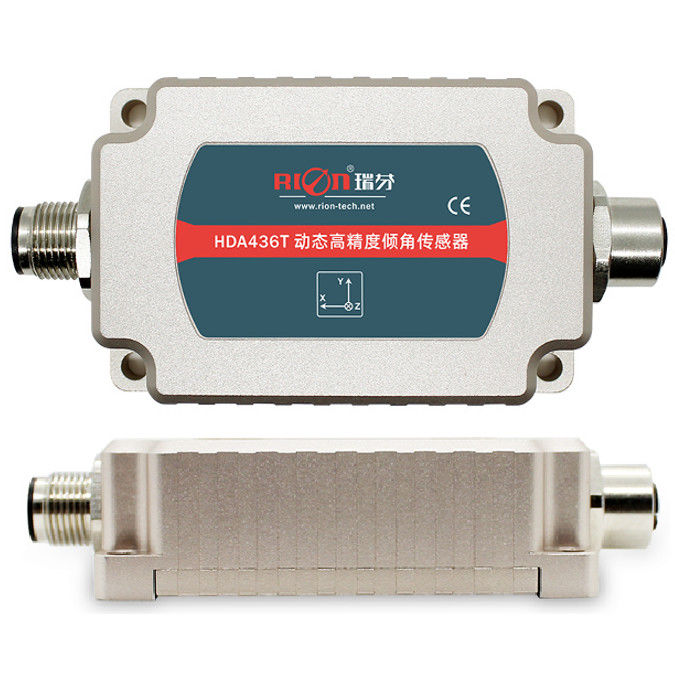

Digital MEMS Dynamic 3 Axis Tilt Angle Meter Pitch Roll For Crane / Excavator

Name: Digital MEMS Dynamic 3 Axis Tilt Angle Meter Pitch Roll For Crane / Excavator
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: HDA436T-232
Price: 5.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: Rion

Certification: CE

Model Number: HDA436T-232

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $100/Pieces 1-9 Pieces

Packaging Details: box

Delivery Time: 7

Payment Terms: T/T, PayPal

Supply Ability: 5000/month

Get Best Price

Contact Now

Specifications

Description

Ratings & Reviews

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              MEMS Tilt Angle Meter, Dynamic Tilt Angle Meter, Excavator MEMS Tilt Sensor


Power Supply:	9~36v	Dynamic Accuracy:	0.1deg
Resolution:	0.01deg	Static Accuracy:	0.05deg
Acceleration Range:	±8g	Gyro Range:	±250°/s
Response Time:	0.01S	Weight:	165g

Power Supply:	9~36v
Dynamic Accuracy:	0.1deg
Resolution:	0.01deg
Static Accuracy:	0.05deg
Acceleration Range:	±8g
Gyro Range:	±250°/s
Response Time:	0.01S
Weight:	165g

Description

Digital MEMS Dynamic 3 Axis Tilt Angle Meter Pitch Roll For Crane / Excavator

Digital MEMS Dynamic Tilt Sensor 3 Axis Tilt Angle Meter Pitch Roll Angle Sensor For Crane/Excavator

▶ PRODUCT APPLICATION

★ Railway locomotive monitoring

★ Oil drilling equipment

★ Shield pipe jacking application

★ Geological equipment tilt monitoring

★ Underground drilling rig attitude navigation

★ Ship navigation attitude measurement

★ Shield pipe jacking application

★ Satellite communication vehicle attitude detection

★ Orientation measurement based on inclination angle

★ Various engineering machinery inclination measurement

Technical Data

HDA436T		CONDITION	INDEX
Measure range		-	Roll ±180°, pitch ±90°, azimuth ±180° (initial value at power-down is 0°)
Measure axis		-	X axis / Y axis / Z axis
Resolution		-	0.01°
Static accuracy		@25℃	± 0.05°
Dynamic accuracy(RMS)		@25℃	± 0.1°
Gyro	range	-	±250°/s
	Zero bias stability (10s mean)	-	8.5°/h
	Zero Bias Instability(allan)	-	4.5°/h
	Angle random walk coefficient(allan)	-	0.25°/sqrt(h)
Acceleration	range	-	±8g
	Bias stability(10s mean)	-	0.02mg
	Bias instability(allan)	-	0.005mg
	Speed random walk coefficient(allan)	-	0.005m/s/sqrt(h)
Zero point temp. coefficient		-40～85℃	±0.01°/℃
Sensitivity temp. coefficient		-40～85℃	≤100ppm/℃
Power-on startup time		1S
Response time		0.01S
Output signal		RS485/RS232/TTL
Electromagnetic compatibility		According to EN61000 and GBT17626
MTBF		≥ 98000 hours / time
Insulation resistance		≥100 Megohm
Impact resistance		100g @ 11ms,3 axial direction (half sinusoid)
Anti-vibration		10grms,10～1000Hz
Waterproof level		IP67
Cable		Standard without wiring, optional 2m M12 aviation plug with PVC unshielded cable
Weight		≤165g (excluding cables)

INSTALLATION METHOD

Digital MEMS Dynamic 3 Axis Tilt Angle Meter Pitch Roll For Crane / Excavator 0
