SCA126W-Long Distance Wireless Inclinometer With Display Lora Wireless tilt sensor

Name: SCA126W-Long Distance Wireless Inclinometer With Display Lora Wireless tilt sensor
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: SCA126W-10
Price: 260 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: RION

Certification: CE, ISO

Model Number: SCA126W-10

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 260 USD/pcs

Packaging Details: Carton

Delivery Time: 10 days

Payment Terms: T/T, PayPal

Supply Ability: 1000/month

Get Best Price

Contact Now

Specifications

Description

Ratings & Reviews

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              90deg Wireless Inclinometer, IP67 Wireless Inclinometer, Anti Vibration Angle Inclinometer


Measure Range:	10~90deg	Measure Axis:	X/Y/XY
Resolution:	0.01°	Measure Accuracy:	0.02°
Long Term Stability:	0.05°	Weight:	220g
Zero Temperature Coefficient:	±0.006°/℃	Power Supply:	Li-battery

Measure Range:	10~90deg
Measure Axis:	X/Y/XY
Resolution:	0.01°
Measure Accuracy:	0.02°
Long Term Stability:	0.05°
Weight:	220g
Zero Temperature Coefficient:	±0.006°/℃
Power Supply:	Li-battery

Description

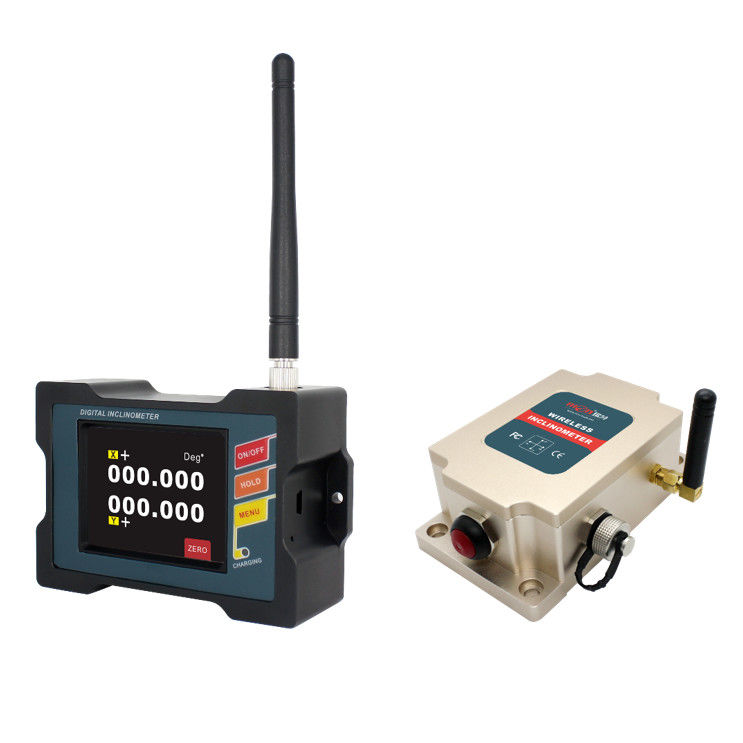

SCA126W-Long Distance Wireless Inclinometer With Display Lora Wireless tilt sensor

SCA126W-Long Distance Wireless Inclinometer With Display Lora Wireless tilt sensor

Features:

●Dual-Axis Inclinometer

●Measuring Range :±1～±90° optional

●Accuracy: refer to the technical data

●Wide voltage input: 9～36V

●Wide temperature working: -40～+85℃

●Resolution: 0.01°

●IP67 protection class ●Highly anti-vibration performance >2000g

●200M wireless transmission

●Small size : 97×50×48.5mm

●Output mode RS232/RS485/RS422 (optional)

Application:

●engineering mechanical measurement of dip angle

●oil-well drilling equipment

●Radar detection of vehicle platform

●Underground drill posture navigation

●Based on the angle direction measurement

●Satellite communications vehicle posture detection

●Shield pipe jacking application

●Ship’s navigation posture measurement

●Geological equipment inclined monitoring

SCA126W-Long Distance Wireless Inclinometer With Display Lora Wireless tilt sensor 0

▶ TECHNICAL DATA

Measuring rang		±10	±30	±60	±90	°
Measuring axis		X,Y	X,Y	X,Y	X,Y
Resolution		0.01	0.01	0.01	0.01	°
Absolute accuracy		0.02	0.05	0.08	0.1	°
Long term stability		0.05	0.05	0.05	0.05
Zero temperature coefficient	-40～85°	±0.006	±0.006	±0.006	±0.006	°/℃
Sensitivity temperature coefficient	-40～85°	≤100	≤100	≤100	≤100	ppm/℃
Power on time		0.5	0.5	0.5	0.5	S
Response time		0.05	0.05	0.05	0.05	S
Output rate	5Hz,15Hz,35Hz,50Hz can be setting
Output signal	RS232/RS485
EMC	According to EN61000 and GBT17626
MTBF	≥50000hours/times
Insulation Resistance	≥100M
Shockproof	100g@11ms,3Times/Axis(half sinusoid))
Anti-vibration	10grms,10～1000Hz
Protection glass	IP67
Cables	Standard 1M length,wearproof,grease proofing,wide temperature, Shielded cables 4*0.4mm2
Weight	220g(without cable)
