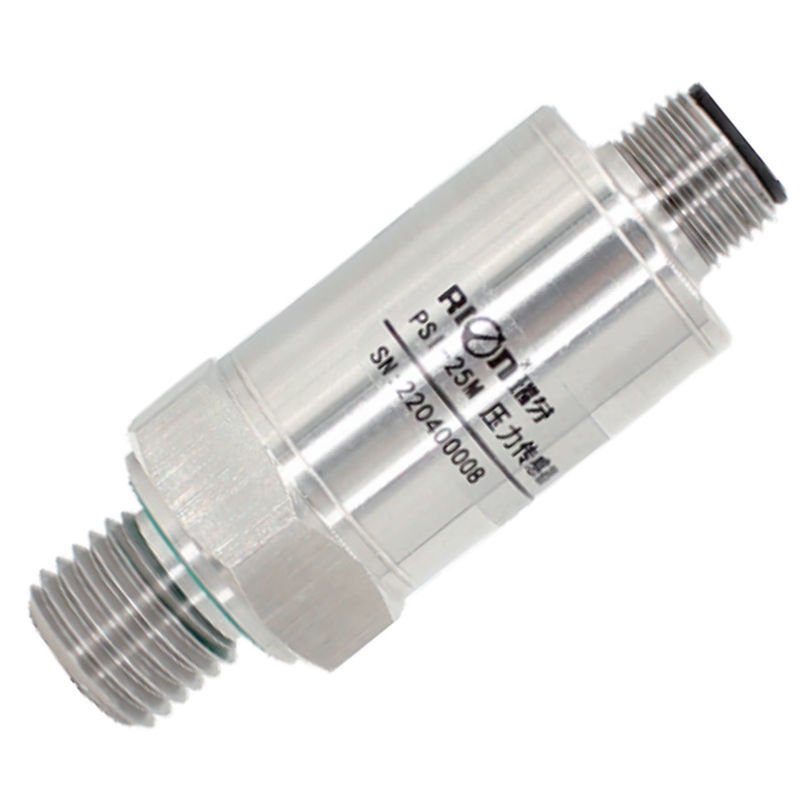

PSI-25M Dual Reverse Output Pressure Sensor, Anti Interference Low Drift

PSI-25M Dual Reverse Output Pressure Sensor, Anti Interference Low Drift

PSI-25M Pressure Sensor.pdf

Product introduction:

The PSI-25M is a high-performance sensor designed for measuring pressure in liquids and gases, specifically used in construction machinery, industrial equipment, shipbuilding, and other industries that require reliable pressure monitoring.

Key Features:

• Pressure Range: 0-25MPa
• Construction: 304 stainless steel housing, laser-welded for exceptional corrosion resistance and durability
• Pressure Measurement: Suitable for high-pressure environments
• Connector: Aviation-grade connector for secure and stable connections
• Protection Rating: IP67, providing full protection against dust and water ingress
• Dual Current Outputs: Two output options—one ranging from 20mA to 4mA, and the other from 4mA to 20mA—enabling flexible integration with various systems
• Long Transmission Range: Designed for long-distance signal transmission with high accuracy
• Precision: High accuracy with temperature compensation to reduce drift and ensure reliable readings
• Anti-Interference: Built with strong resistance to electrical interference for stable operation in noisy environments
• Electromagnetic Compatibility (EMC): Good resistance to electromagnetic interference for enhanced reliability
• Environmental Suitability: Robust and adaptable to operate effectively in harsh industrial conditions

The PSI-25M is an ideal solution for demanding industrial applications, offering high precision, corrosion resistance, and versatility in challenging environments.

Product Size:
