Range: 0~250Bar
Precision: ±0.5%FS(@25℃)
Output 1: 4~20mA
Output2: 20~4mA
Supply Voltage: 9~32Vdc
Precision: ±0.5%FS(@25℃)
High Light:

250Bar Pressure Measurement Sensor


32Vdc Pressure Measurement Sensor


9Vdc Liquid Pressure Meter

Basic Infomation
Place of Origin: CHINA
Brand Name: RION
Model Number: PSI-25M
Payment & Shipping Terms
Packaging Details: sponge and box
Delivery Time: 5 days for sample
Payment Terms: L/C, T/T
Supply Ability: 1000/month
Product Description

Pressure Measurement Sensor Low Price Pressure Sensor Liquid Pressure Meter Gas Pressure

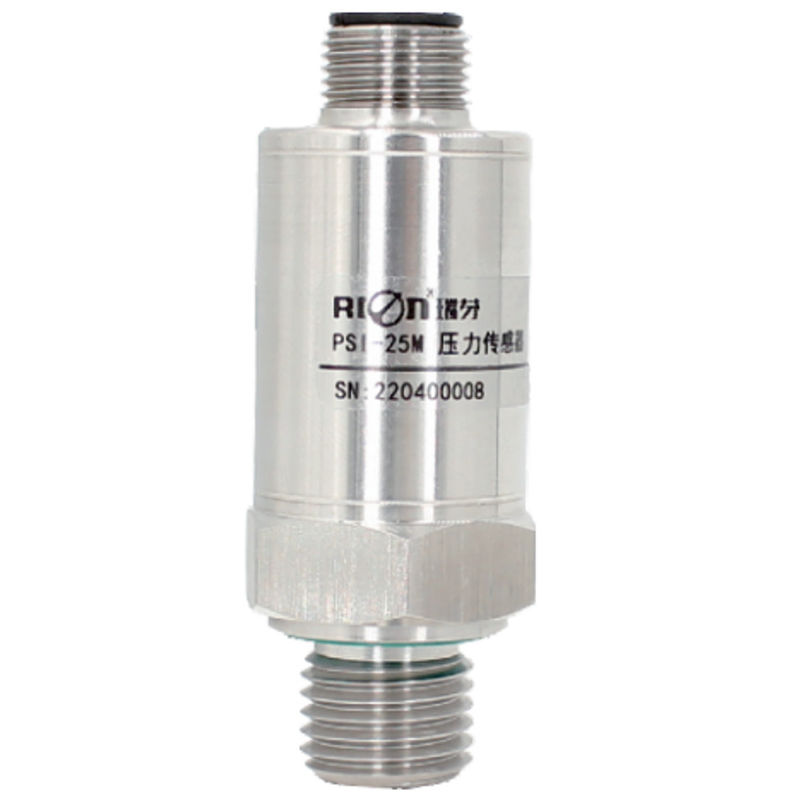

Product introduction:

PSI-25M is used for the pressure measurement of liquid and gas in construction machinery, industrial equipment, shipbuilding industry, and other industries requested for pressure monitor or measurement. Features: measuring range 0-25MPa, 304 stainless steel shell integrated by laser welding , strong corrosion resistance, high pressure measure range, aviation connector, IP67, two current output ways, long transmission distance, high precision, one way output 20mA to 4mA, the other output 4mA to 20mA, dual reverse output, strong anti-interference ability, with temperature compensation algorithm, low t e m p e r a t u r e d r i f t a n d h i g h e r a c c u r a c y, g o o d electromagnetic compatibi l ity and environmental adaptability.It suits for various complex and harsh industrial working condition


range 0~250Bar
Precision ±0.5%FS(@25℃)
  ±2%FS(@-40~20℃ @60~85℃)
Output 1 4~20mA
Output2 20~4mA
Supply voltage 9~32Vdc
Compensated temp. -20~60℃
Operating temp. -40~85℃
Size Ø24.5*H60.5mm
Weight ≤80g(cable not included)



Product Size:
