Geological Equipment Tilt Angle Sensor Alignment / Curve Control

1
MOQ
335 USD/pcs
Price
Geological Equipment Tilt Angle Sensor Alignment / Curve Control
Features Gallery Product Description Request A Quote
Features
Specifications
Measure Range: ±5~60°
Measure Axis: X,Y
Measure Accuracy: 0.005°
Long Term Stability: 0.01°
Zero Temp.coefficient: ±0.002°/℃
Size: L90 × W59 × H34mm
Power On Time: 0.5s
Zero Temp. Coefficient: 0.0005°/℃
High Light:

Curve Control Tilt Angle Sensor

,

ISO Tilt Angle Sensor

,

Geological Equipment Tilt Sensor Inclinometer

Basic Infomation
Place of Origin: China
Brand Name: RION
Certification: CE, ISO
Model Number: HCA510-50-N
Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 7 word days
Payment Terms: T/T, PayPal
Supply Ability: 500 pcs/month
Product Description

Tilt Monitoring Of Geological Equipment Tilt Angle Sensor Alignment Control Curve Control



FEATURES

★ Single / dual axis inclination measurement ★ Range ±1~±60 ° optional

★ Accuracy: Refer to technical data ★ Wide voltage input 11.5~36V

★ Output mode 4~20mA ★ Wide temperature operation -40~+ 85 ℃

★ IP67 protection ★ High vibration resistance> 2000g

★ High resolution 0.001 ° ★ Small size L90mm × W59mm × H34mm (customizable)



APPLICATION

★ Equipment vehicle leveling ★ Bridge and Dam monitoring

★ High-altitude platform safety protection ★ Angle control of medical equipment

★ Attitude navigation of underground drilling rig ★ Leveling of railway gauge and gauge

★ Direction measurement based on tilt angle ★ Tilt monitoring of geological equipment

★ Mining machinery, oil drilling equipment ★ Equipment level control

★Alignment control , curve control

★ Pitch angle measurement of directional satellite communication antenna





HCA518T/HCA528T-N is a high accuracy single /dual axis inclinometer, output adopt the standard industry electronic interface 4 ~ 20mA, can be long-distance transmission of up to 2000 meters. The product uses the latest MEMS high technology for production, made precise compensation and correction to temperature error and nonlinearity error, small measuring range and the highest accurate up to 0.003 ° (bigger measuring range index, please refer to product technical data),

HCA518T&HCA528T inclinometer use the dynamic zero test compensation technology to ensure product Quick Launch, high resolution ,stable data, good capacity to bear shock & vibration, built-in anti-RF, adopts anti-electromagnetic interference circuit to ensure that the output signal to a higher anti-interference ,in addition to this product is better than the similar market product on software technical data, on the reliability and stability the product is also using the high-end application-level MCU,three-proofing PCB board, imported cable, wide temperature shielded metal enclosure and other measures to improve product industrial level,to ensure the product can be long-term & safety extraordinary operation in harsh environments.





TECHNICAL DATA



HCA518T/HCA528T-N CONDITION PARAMETERS UNIT
Measure range   ±10 ±30 ±60 ±90 °
Measure axis   X/XY X/XY X/XY X/XY axis
Zero output 0° output 12 12 12 12 mA
Resolution   0.001 0.001 0.001 0.001 °
Measure accuracy MAXE Room temp. 0.005 0.01 0.02 0.03 °
RMSE Room temp. 0.003 0.003 0.005 0.008 °
Zero Temp. coefficient -40~85℃ 0.0005 0.0005 0.0005 0.0005 °/℃
Sensitivity temp. coefficient -40~85℃ ≤100 ≤100 ≤100 ≤100 ppm/℃
Power on time   0.5 0.5 0.5 0.5 S
Sensitivity temp. coefficient 20Hz
EMC According to EN61000 and GBT17626
MTBF ≥50000 hours/times
Insulation Resistance ≥100MΩ
Shockproof 100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration 10grms,10~1000Hz
Protection glass IP67
Cables Standard configuration: 2m length, wear-resistant, wide temperature, shielded cable 7P * 6.8mm aviation connector, cable weight ≤110g
Weight ≤250g(Excluding cable)



MECHANICAL PARAMETERS

○ Connector: aviation connector

 (1m Direct Leading Cable can Be Customized)

○ Protection level: IP67

○ Shell material: aluminum alloy shield oxidation



○ Installation: Three M4 screws

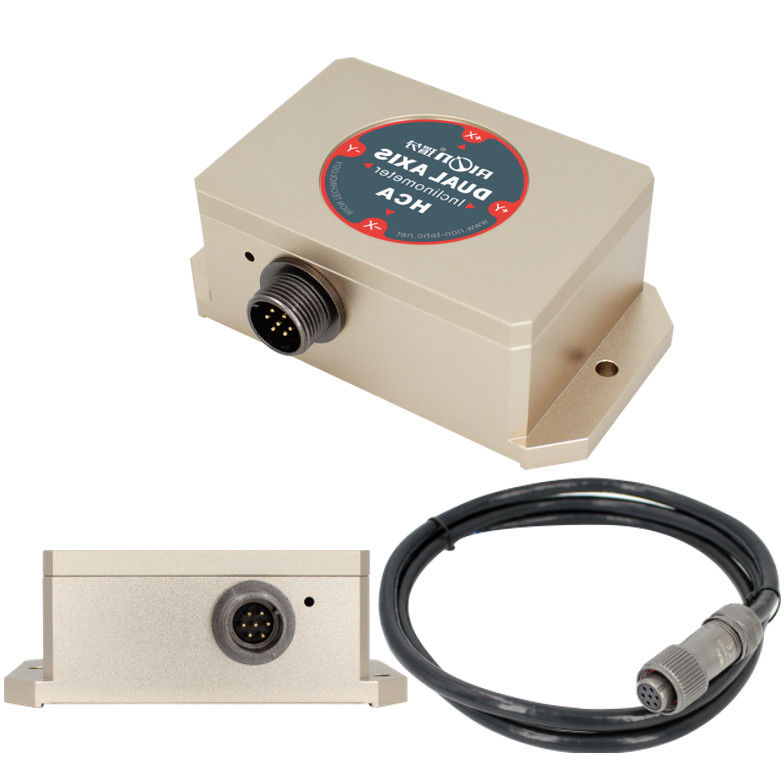

Geological Equipment Tilt Angle Sensor Alignment / Curve Control 0
