Ancient Structure Tilt Sensor Inclinometer
, 20ma MEMS Inclination Sensor
, 4ma High Accuracy Inclinometer
HCA510 Ancient Structure Inclination Sensor High Accuracy Measure Safety dip angle
HCA510 Ancient Structure Inclination Sensor High Accuracy Measure Safety dip angle

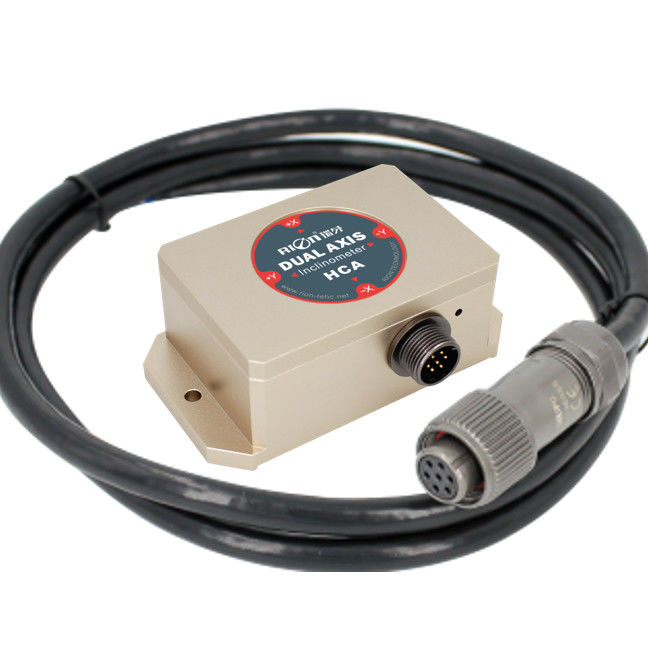

The HCA518T/HCA528T-N is a high-precision single/dual-axis inclinometer that features a standard industrial electronic output of 4~20mA, allowing for long-distance transmission up to 2000 meters. Utilizing the latest MEMS technology, it offers precise compensation and correction for temperature and nonlinearity errors, with a small measuring range and a maximum accuracy of up to 0.003° (for larger measuring range specifications, please refer to the product technical data).
The HCA518T and HCA528T inclinometers incorporate dynamic zero test compensation technology to ensure quick start-up, high resolution, and stable data, along with excellent shock and vibration resistance. The built-in anti-RF circuit enhances the output signal's resistance to interference. Additionally, this product outperforms similar market products in software technical specifications and reliability. It employs a high-end application-level MCU, a three-proof PCB, imported cables, and a wide-temperature shielded metal enclosure, all designed to improve industrial-level performance and ensure long-term and safe operation in harsh environments.
▶ APPLICATION
★ Equipment vehicle leveling
★ Bridge and Dam monitoring
★ High-altitude platform safety protection
★ Angle control of medical equipment
★ Attitude navigation of underground drilling rig
★ Leveling of railway gauge and gauge
★ Direction measurement based on tilt angle
★ Tilt monitoring of geological equipment
★ Mining machinery, oil drilling equipment
★ Equipment level control
★ Alignment control , curve control
★ Pitch angle measurement of directional satellite communication antenna
▶ TECHNICAL DATA
| HCA518T/HCA528T-N |
CONDITION |
PARAMETERS |
UNIT |
| Measure range |
|
±10 |
±30 |
±60 |
±90 |
° |
| Measure axis |
|
X/XY |
X/XY |
X/XY |
X/XY |
axis |
| Zero output |
0° output |
12 |
12 |
12 |
12 |
mA |
| Resolution |
|
0.001 |
0.001 |
0.001 |
0.001 |
° |
| Measure accuracy |
MAXE |
Room temp. |
0.005 |
0.01 |
0.02 |
0.03 |
° |
| RMSE |
Room temp. |
0.003 |
0.003 |
0.005 |
0.008 |
° |
| Zero Temp. coefficient |
-40～85℃ |
0.0005 |
0.0005 |
0.0005 |
0.0005 |
°/℃ |
| Sensitivity temp. coefficient |
-40～85℃ |
≤100 |
≤100 |
≤100 |
≤100 |
ppm/℃ |
| Power on time |
|
0.5 |
0.5 |
0.5 |
0.5 |
S |
| Sensitivity temp. coefficient |
20Hz |
| EMC |
According to EN61000 and GBT17626 |
| MTBF |
≥50000 hours/times |
| Insulation Resistance |
≥100MΩ |
| Shockproof |
100g@11ms,3 Axial Direction (Half Sinusoid) |
| Anti-vibration |
10grms,10～1000Hz |
| Protection glass |
IP67 |
| Cables |
Standard configuration: 2m length, wear-resistant, wide temperature, shielded cable 7P * 6.8mm aviation connector, cable weight ≤110g |
| Weight |
≤250g(Excluding cable) |
▶ FEATURES
★ Single / dual axis inclination measurement
★ Range ± 1～± 90° optional
★ Accuracy: Refer to technical data
★ Wide voltage input 9～36V
★ Output mode 0～5V
★ Wide temperature operation -40 ℃～+ 85 ℃
★ IP67 protection
★ High vibration resistance> 2000g
★ High resolution 0.001 °
★ Small size L90 × W59 × H34mm
