Level Measure High Precision Inclinometer Linear Angle For Building Dam
Features Gallery Product Description Request A Quote
Features
Specifications
Measure Range: 2~30°
Measure Axis: Single Or Dual Axis
Resolution: 0.0007°
Temperature Drift: 0.0005°/℃
Long Term Stability: 0.01°~0.04°
Weight: 235g
Function: Precise Angle Measure
High Light:

Dual Axis High Precision Inclinometer

,

Linear Angle High Precision Inclinometer

,

Tilt Sensor Inclinometer For Building

Basic Infomation
Place of Origin: China
Brand Name: RION
Certification: CE, ISO
Model Number: ACA628T-5
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 10 days
Payment Terms: T/T, PayPal
Supply Ability: 1000/month
Product Description

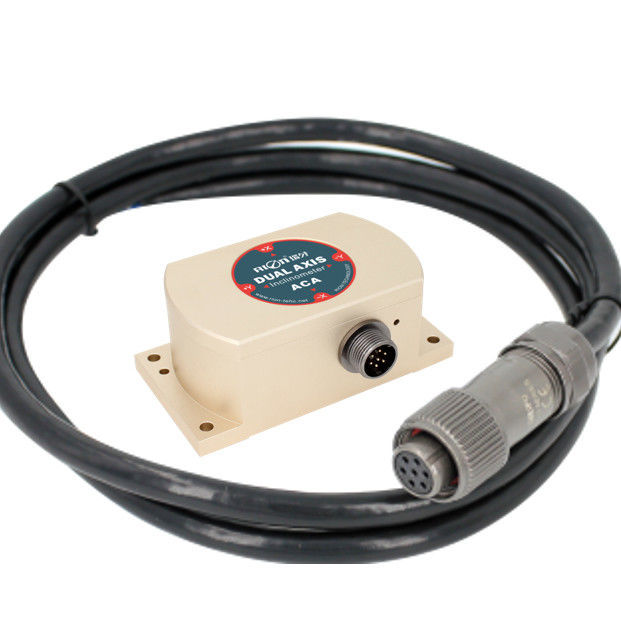

High Precision Inclinometer Level Measure Linear Angle Sensor Building Dam Inclination Angle Detection



APPLICATION

★ Engineering vehicles automatic leveling

★ Bridge & dam detection

★ Laser equipment position

★ Medical facilities angle control

★ Underground drill posture navigation

★ Railway gauging rule , gauge equipment leveling

★ Precise machine tool level control

★ Geological equipment inclined monitoring







▶ TECHNICAL DATA

ACA618T/628T-N Conditions Parameters Unit
Measure range   ±10 ±30 ±60 ±90 °
Measure axis   X / XY X / XY X / XY X / XY axis
Zero output 0° output 12 12 12 12 mA
Resolution   0.0007 0.0007 0.0007 0.0007 °
Measure accuracy MAXE Room temp. 0.003 0.01 0.02 0.03 °
RMSE Room temp. 0.003 0.003 0.005 0.008 °
Zero Temp. coefficient -40~85℃ 0.0005 0.0005 0.0005 0.0005 °/℃
Sensitivity temp-coefficient -40~85℃ ≤50 ≤50 ≤50 ≤50 ppm/℃
Power on time   0.5 0.5 0.5 0.5 S
Response frequency 20Hz
EMC According to EN61000 and GBT17626
MTBF ≥98000 hours/times
Insulation Resistance ≥100MΩ
Shockproof 100g@11ms,3 axial direction (half sinusoid)
Anti-vibration 10grms,10~1000Hz
Protection grade IP67
Cables Standard configuration: 2m length, wear-resistant, wide temperature, shielded cable 7P * 6.8mm aviation connector, cable weight ≤200g
Weight ≤260g(without cable )

















































▶ ELECTRICAL CONNECTION



Wire Color function RED WHITE GREEN BLACK GRAY

DC11.5~36V

Power supply positive

Out X

X axis

output current

NC

GND

Power supply negative

Signal GND



Level Measure High Precision Inclinometer Linear Angle For Building Dam 0



▶ Dimension

Level Measure High Precision Inclinometer Linear Angle For Building Dam 1



GENERAL DESCRIPTION

ACA618T/ACA628T-N is a high-precision single/dual-axis inclinometer with full temperature compensation and current output. it adopts a high-precision 24bit A/D differential converter to ensure the current output linearity of the product, so the user does not need to make the linearity correction. it is stable, reliable and easy to use. The system integrates a high-resolution temperature sensor, coworking with the MCU, processing secondary temperature compensation, by which the full temperature zero drift can be achieved at 0.0005°/℃, and the accuracy at room temperature can reach 0.003° for small measure range. it output by 4~20mA comparing with voltage output, it can transmit much longer distance as 2km. The feature of non-contact installation makes this product compatible for different systems. Just fix the sensor on the surface of the object to be measured with screws, and then it automatically calculate the inclination angle of the object. It is convenient to install, easy to operate, robust to resist interference and vibration, it has prominent advantage against its counterparts.
