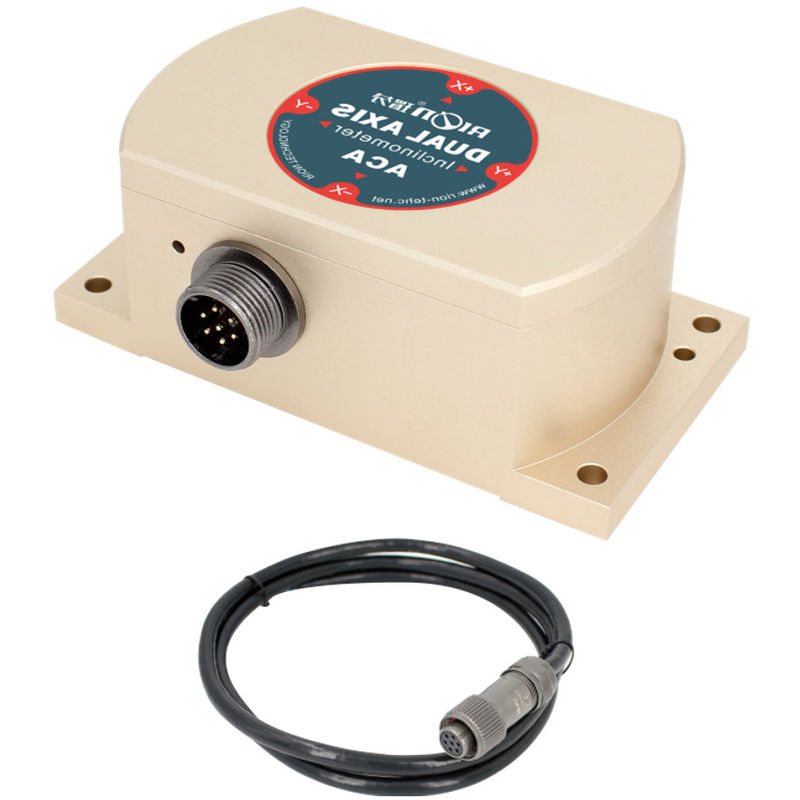

Building Tilt Measure Analog Inclinometer Sensor Drilling Level Measure Analog Tilt Sensor Precision Tilt Sensor
▶ APPLICATION
★ Engineering vehicles automatic leveling
★ Bridge & dam detection
★ Laser equipment position
★ Medical facilities angle control
★ Underground drill posture navigation
★ Railway gauging rule , gauge equipment leveling
★ Precise machine tool level control
★ Geological equipment inclined monitoring
▶ FEATURES
★ Single/Dual-Axis Inclinometer
★ Measuring Range :±1~±90° optional
★ Wide voltage input: 11.5~36V
★ Wide temperature working: -40~+85℃
★ IP67 protection grade
★ Highly anti-vibration performance >2000g
★ High Resolution: 0.0007°
★ Temperature drift: 0.0005°/℃
▶ TECHNICAL DATA
| ACA618T/628T-N | Conditions | Parameters | Unit | ||||
| Measure range | ±10 | ±30 | ±60 | ±90 | ° | ||
| Measure axis | X / XY | X / XY | X / XY | X / XY | axis | ||
| Zero output | 0° output | 12 | 12 | 12 | 12 | mA | |
| Resolution | 0.0007 | 0.0007 | 0.0007 | 0.0007 | ° | ||
| Measure accuracy | MAXE | Room temp. | 0.003 | 0.01 | 0.02 | 0.03 | ° |
| RMSE | Room temp. | 0.003 | 0.003 | 0.005 | 0.008 | ° | |
| Zero Temp. coefficient | -40～85℃ | 0.0005 | 0.0005 | 0.0005 | 0.0005 | °/℃ | |
| Sensitivity temp-coefficient | -40～85℃ | ≤50 | ≤50 | ≤50 | ≤50 | ppm/℃ | |
| Power on time | 0.5 | 0.5 | 0.5 | 0.5 | S | ||
| Response frequency | 20Hz | ||||||
| EMC | According to EN61000 and GBT17626 | ||||||
| MTBF | ≥98000 hours/times | ||||||
| Insulation Resistance | ≥100MΩ | ||||||
| Shockproof | 100g@11ms,3 axial direction (half sinusoid) | ||||||
| Anti-vibration | 10grms,10～1000Hz | ||||||
| Protection grade | IP67 | ||||||
| Cables | Standard configuration: 2m length, wear-resistant, wide temperature, shielded cable 7P * 6.8mm aviation connector, cable weight ≤200g | ||||||
| Weight | ≤260g(without cable ) | ||||||
▶ ELECTRICAL CONNECTION
| Wire Color function | RED | WHITE | GREEN | BLACK | GRAY |
|
DC11.5~36V Power supply positive |
Out X X axis output current |
NC |
GND Power supply negative |
Signal GND |
▶ Dimension
ACA618T ACA628T-N HIGH ACCURACY CURRENT INCLINOME...
