ACA616T&626 2 Axis Precise Inclinometer with Long Term Stability 0.01° for Building Inclination Monitoring

Name: ACA616T&626 2 Axis Precise Inclinometer with Long Term Stability 0.01° for Building Inclination Monitoring
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: ACA616T-5
Price: 594 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: RION

Certification: CE, ISO

Model Number: ACA616T-5

Document: ACA616T ACA626T CAN2.0A OUT...OR.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 594 USD/pcs

Packaging Details: Carton

Delivery Time: 10 days

Payment Terms: T/T,PayPal

Supply Ability: 1000/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      IP67 2 Axis Inclinometer, Dam 2 Axis Inclinometer, 20Hz Tilt Sensor Inclinometer


Measure Range:	5°	Measure Axis:	X Y
Sensitivity Temp-coeffi:	≤50ppm/℃	Power On Time:	0.5s
Long Term Stability:	0.01°	Response Frequency:	20Hz

Measure Range:	5°
Measure Axis:	X Y
Sensitivity Temp-coeffi:	≤50ppm/℃
Power On Time:	0.5s
Long Term Stability:	0.01°
Response Frequency:	20Hz

Description

ACA616T&626 2 Axis Precise Inclinometer with Long Term Stability 0.01° for Building Inclination Monitoring

ACA616T & 626 Building 2-Axis Inclinometer

Precise tilt sensor inclinometer for building inclination monitoring and structural measurement

Applications

Bridge and dam structural detection
Building inclination monitoring
Wind turbine angle measurement
Engineering vehicle automatic leveling
Laser equipment positioning
Medical facilities angle control

Technical Specifications

Parameter	±10°	±30°	±60°	Unit
Measurement Range	±10	±30	±60	°
Measurement Axis	X/XY	X/XY	X/XY	Axis
Resolution	0.001	0.001	0.001	°
Measurement Accuracy @25℃	0.003	0.01	0.02	°
Long Term Stability	0.01	0.02	0.03	°
Zero Temperature Coefficient (-40~+85℃)	±0.0004	±0.0004	±0.0004	°/℃
Sensitivity Temperature Coefficient (-40~+85℃)	≤100	≤100	≤100	ppm/℃
Power On Time	0.5	0.5	0.5	S
Response Time	0.02	0.02	0.02	S

Additional Technical Features

Interface Type: CAN 2.0A
EMC Compliance: EN61000 and GBT17626 standards
MTBF: ≥50,000 hours
Insulation Resistance: ≥100MΩ
Shock Resistance: 100g@11ms, 3 Axial Direction (Half Sinusoid)
Vibration Resistance: 10grms, 10～1000Hz
Protection Grade: IP67

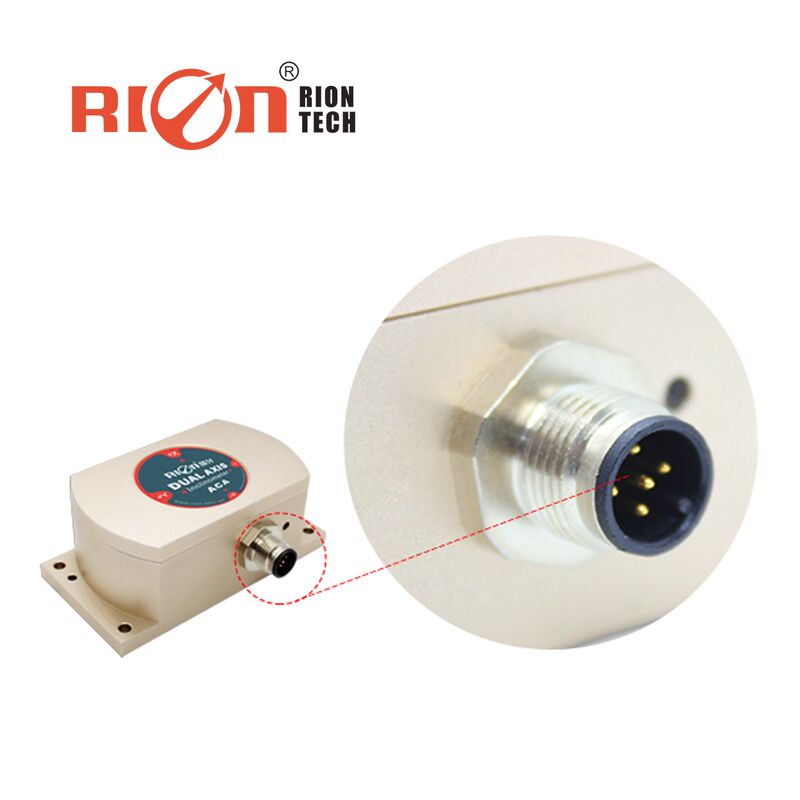

Cables: Standard 2m length, wear-resistant, wide temperature, shielded cable with 5P * 5.7mm aviation connector
Weight: 235g (without cable)

Product Overview

The ACA616T/ACA626T is a full temperature compensation high precision single/dual axis MODBUS digital output tilt sensor developed by RION Technology. Built on a high precision tilt platform, this sensor maintains excellent temperature stability across a wide operating range of -40°C to +85°C, ensuring high measurement accuracy for long-term field equipment monitoring and leveling applications.

The system incorporates a built-in high-precision 24-bit A/D differential converter and utilizes a fifth-order filtering algorithm to measure tilt and pitch angles relative to horizontal. Output interfaces include RS485, RS232, and TTL options. The non-contact installation design provides strong system integration capabilities - simply fix the sensor to the measured object's surface with screws to automatically calculate object attitude and inclination.

This inclinometer features robust resistance to external electromagnetic interference and exceptional shock and vibration tolerance, offering significant competitive advantages for industrial applications requiring high-end performance.
