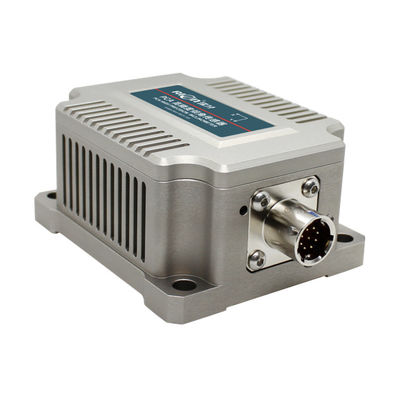

High Precision Tilt Sensor Inclinometer For Dam Deformation Monitor Sensor

$703.00/Pieces 1-9 Pieces
High Precision Tilt Sensor Inclinometer For Dam Deformation Monitor Sensor
Features Gallery Product Description Request A Quote
Name: Dam Deformation Monitor Sensor
Measure Range: ±60deg
Resolution: 0.0005 Degree
Accuracy: 0.001deg
Weight: <400g
Output: RS232, RS485, TTL, CAN
High Light:

RS232 Output Tilt Sensor Inclinometer


Tilt Sensor Inclinometer CAN2.0A


Dam Deformation High Precision Inclinometer Sensor

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: RION
Certification: CE, ISO
Model Number: PCA826-C
Payment & Shipping Terms
Packaging Details: 1pcs/box ,100pcs/ctn
Delivery Time: 7 days for samples
Payment Terms: T/T, Paypal
Supply Ability: 500/month
Product Description

High Precision Incline Angle Tilt Meter For Dam Deformation Inclination Monitor Sensor



PCA826T-CAN2.0A is a high-performance product developed by Rion Technology specially for the high-precision inclination measurement. Before leaving the factory, all products would have full temperature range calibration and compensation, and a two-week long-term stability test ensures compatibility under different working conditions and maintains the best performance indicators during the long-term test cycle. Built-in filtering algorithm makes the product have lower noise and higher response speed. It is CAN2.0A output. The characteristics of non-contact installation make PCA826T easy and convenient to install. You only need to mount the sensor on the surface of the object to be measured with screws, and the horizontal angle of the object can be automatically calculated, which is simple to use. Strong resistance to external electromagnetic interference, strong shock and vibration ability, widely used in satellite communication vehicles, special vehicles, radar antenna vehicles, wind turbines etc.



★ Biaxial tilt angle measurement

★ Range ±1~±60° optional

★ Horizontal/vertical optional

★ DC 9~36V wide voltage input

★ Wide temperature operation -40~+85℃

★ Resolution 0.0005°

★ IP67 protection grade

★ Size: L82×W70×H42mm

★ Output mode CAN2.0A



★ Wind power monitoring

★ Bridge and Dam monitoring

★ Ancient building monitoring

★ High-speed rail track monitoring

★ Ground satellite communication vehicles

★ Railway gauge ruler and gauge leveling

★ Satellite communication vehicle

★ Geological equipment tilt monitoring

★ Engineering vehicle leveling



Please install the tilt sensor according to the correct method. Incorrect installation will cause measurement errors. Pay special attention to one "surface" and two "line":

1) The sensor mounting surface and the surface to be measured must be fixed tightly, flat and stable, if installation surface is unevenness, it will cause the angle error.

2) The axis of the sensor and the axis to be measured must be parallel, and there should be no angle between the two axes as possible.

High Precision Tilt Sensor Inclinometer For Dam Deformation Monitor Sensor 0


Measure range   ±5 ±10 ±30 ±60 °
Measure axis   XY XY XY XY
Resolution   0.0005 0.0005 0.0005 0.0005 °
Measure accuracy @25℃ 0.001 0.002 0.003 0.005 °
Long-term stability   0.02 0.02 0.03 0.04 °
Zero temp coefficient -40~85℃ 0.0002 0.0002 0.0002 0.0002 °/℃
Sensitivity temp coefficient -40~85℃ ≤50 ≤50 ≤50 ≤50 ppm/℃
Power on time   <0.4 <0.4 <0.4 <0.4 S
Response frequency   0.04 0.04 0.04 0.04 S
Output rate 5Hz,10Hz,25Hz,35Hz,50Hz,100Hz. Can be set
Ouput signal RS485/RS422 optional
EMC According to EN61000 and GBT17626
MTBF ≥50000 hour/time
Insulation Resistance ≥100 MΩ
Shockproof 100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration 10grms,10~1000Hz
Protection grade IP67
Cables Standard configuration 1 meter, wear-resistant, wide temperature, shielded cable, mm aviation connector
Weight 385g (exclude cable)
