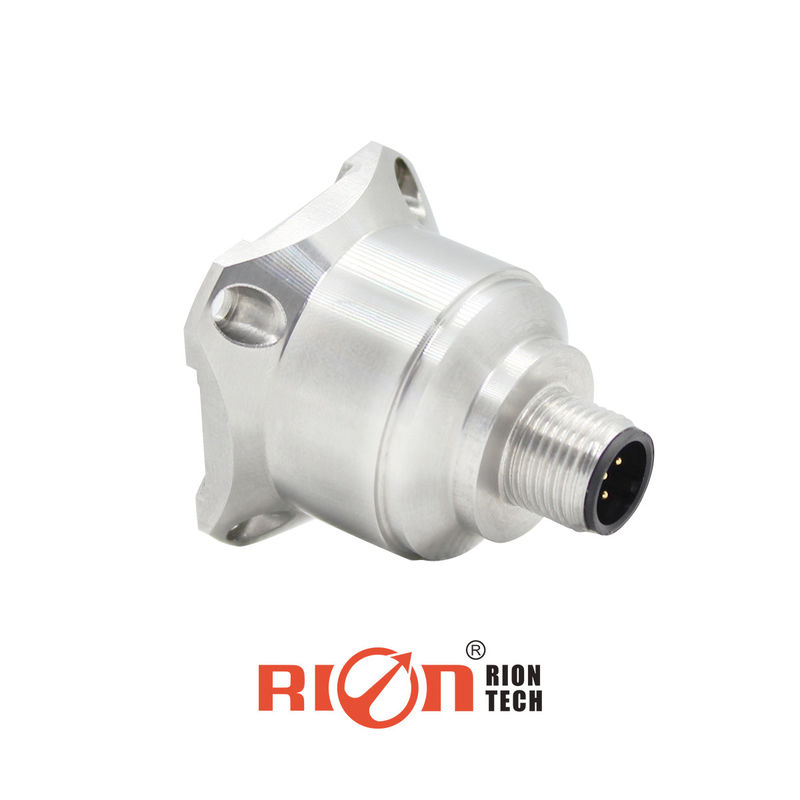

Triaxial MEMS Vibration Sensor For Road Roller Using

Name: Triaxial MEMS Vibration Sensor For Road Roller Using
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: AKG392
Price: 235.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE, ISO

Model Number: AKG392

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $235.00/Pieces

Packaging Details: 1pcs vibration sensor in each inner box , 50pcs/ctn

Delivery Time: 7 days for samples

Payment Terms: T/T,PAYPAL

Supply Ability: 3000 PCS/MONTH

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      Road Roller Triaxial MEMS Vibration Sensor, Triaxial MEMS Vibration Sensor


Output:	RS485	Power Supply:	DC 9~36V
Power On/off Repeatability:	<2mg	Bandwidth (3DB):	500Hz
Resonance Frequency:	5.5kHz	Material:	Stainless Steel

Output:	RS485
Power Supply:	DC 9~36V
Power On/off Repeatability:	<2mg
Bandwidth (3DB):	500Hz
Resonance Frequency:	5.5kHz
Material:	Stainless Steel

Description

Triaxial MEMS Vibration Sensor For Road Roller Using

Triaxial MEMS Vibration Sensor For Road Roller Using

▶ APPLICATION

★ Medical equipment

★ Bridge

★ Automobile

★ Road roller

★ Crash records, fatigue monitoring and prediction

★ Wind power generation

★ Large machinery, engines

★ Low-frequency vibration and automatic monitoring

★ Traffic system monitoring, roadbed analysis and high-speed railway fault detection

Specifications

AKG392	PARAMETERS						UNIT
Range	±2	±4	±8	±10	±20	±40	g
Bias calibration	<1	<1	<1	<1	<1	<1	mg
Measure axis	X,Y,Z	X,Y,Z	X,Y,Z	X,Y,Z	X,Y,Z	X,Y,Z	axis
Power on/off repeatability	<2	<2	<2	<2	<2	<2	mg(max)
Bias temperature coefficient	0.15	0.15	0.15	0.75	0.75	0.75	%/℃(typical)
Resolution/threshold (@ 1Hz)	< 1	< 1	< 1	< 1	< 1	< 1	mg(max)
Non-linearity	<0.5	<0.8	<1	<1	<1	<1	% FS(max)
Bandwidth (3DB)	500	500	500	500	500	500	Hz
Cross axis sensitivity	1	1	1	2	2	2	%
Transverse vibration sensitivity ratio	1	1	2	5	5	5	%
Resonance frequency	2.4	2.4	2.4	5.5	5.5	5.5	kHz
Output rate	5Hz,10Hz,25Hz,50Hz,100Hz,200Hz,500Hz,1000Hz
Output Interface	RS232/RS485/TTL
Protocol	RION 68 protocol and MODBUS RTU protocol
Reliability	MIL-HDBK-217,Grade 2
Impact resistance	100g@11ms, 3 Axial Direction (Half Sinusoid)
Recovery Time	<1ms(1000g, 1/2 sin 1ms, Impact on the i-axis)
Vibration	20g rms,20~2000Hz (Random noise, o, p, i acts on each axis for 30 minutes)
Input(VDD_VSS)	9~36 VDC
Operating current consumption	<60mA @ 12 VDC
Connector	Industry standard M12 connector
Weight	Product net weight: 82g, Magnetic base: 48g, L-shaped adapter plate 20g
Size	Product size: 34.334.338.5mm Magnetic adsorption base size: 34.2334.236mm L-shaped adapter plate size: 364415mm

▶Description

The AKF392B acceleration series can be applied to various fields such as vibration testing and impact testing.a low-power ASIC for signal conditioning,a microprocessor for storing compensation values and a temperature sensor. This series of products has the characteristics of strong structure, low power consumption and excellent deviation stability, which guarantees outstanding output reliability

▶ COMMUNICATION PROTOCOL

The product includes 68 protocol and MODBUS RTU two protocols. The default configuration parameters of the protocol are as follows:

PROTOCOL	RION 68 PROTOCOL	MODBUS-RTU
Address code	0	1
Broadcast address	255	0
Serial port baud rate	9600	9600
Parity bit	No parity	Even parity
Serial port start bit	1 bit	1 bit
Serial port data length	8 bits	8 bits
Serial port stop bit	1 bit	1 bit
Output mode	Question and answer	Question and answer
Data Format	Data format	Data format
Data check method	Checksum	CRC16

Size

Triaxial MEMS Vibration Sensor For Road Roller Using
