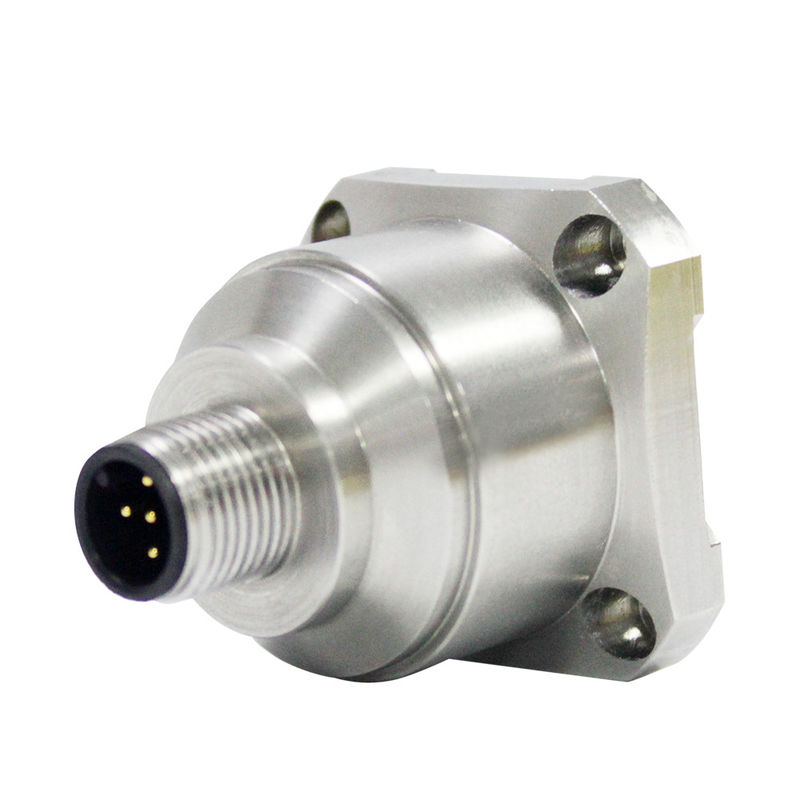

MEMS AKF392B 3 Axis Acceleration Sensor RS232 RS485 TTL Output MEMS Based Accelerometer
General Description
AKF392B three-axis accelerometer is a widely used accelerometers produced by RION's with patented Swiss technology. It can be used in vibration testing, impact testing and other fields. The product adopts digital interface output, RS232/485/TTL, different address codes can be set, and multiple sensors are used together in long distance to facilitate multi-point measurement and data analysis. The AKF392B is a monocrystalline silicon capacitive sensor consisting of a micromachined silicon chip (a low-power ASIC for signal conditioning), a microprocessor for storing compensation values, and a temperature sensor. This product with low power consumption has been calibrated, and has a solid structure and stable output. The new electronic configuration provides solid-state power for reset, providing full protection for over-current. The long-term stability and typical deviation of the scale factor over the full-scale range is less than 0.1%. This series of products has the characteristics of strong structure, low power consumption and excellent deviation stability, which guarantees outstanding output reliability.
Feature
●three axis(X,Y,Z)
●output interface:RS232;RS485;TTL
●power supply:9-36V
●anti-impact:2000G
●excellent deviation stability
●size:L50×W50×H38mm
●weight:100g
●working temperature:-40°C to +85°C
●store temperature:-55°C to +100°C
●good performance in anti-impact, vibration and temperature
Application
●Crash record, fatigue monitoring and prediction
●Shipborne satellite tracking system
●Traffic system monitoring, roadbed analysis and high-speed railway fault detection
●Military and civil flight simulators
●Low frequency vibration and automatic monitoring
Technical Data:
|
Parameters
|
AKF392B
|
Unit
|
|
|
Range
|
±8
|
g
|
|
|
Deviation calibration
|
<1
|
mg
|
|
|
Measuring axis
|
X,Y,Z
|
axis
|
|
|
Power on/down repeatability
|
<2
|
mg (max value)
|
|
|
Deviation temperature coefficient [3]
|
0.05
|
mg/℃ typical value
|
|
|
Resolution / Threshold (@ 1Hz)
|
< 1
|
mg(max)
|
|
|
Nonlinearity
|
<3
|
% FS(max)
|
|
|
Bandwidth [4]
|
500
|
Hz
|
|
|
Resonance frequency
|
5
|
kHz
|
|
|
Output rate
|
5Hz,10Hz,25Hz,50Hz,100Hz,200Hz,500Hz,1000Hz, can be set
|
|
|
|
Output Interface
|
RS232/RS485
|
|
|
|
Communication protocol
|
RION's protocol and MODBUS RTU
|
|
|
|
Reliability
|
MIL-HDBK-217,class 2
|
|
|
|
Anti-impact
|
100g@11ms,Triaxial and identical (half sine wave)
|
|
|
|
Restore time
|
<1ms (1000g, 1/2 sin 1ms, Impact on the i-axis)
|
|
|
|
Vibration
|
20g rms,20~2000Hz (Random noise, o, p, i acting on each axis for 30 minutes)
|
|
|
|
Input(VDD_VSS)
|
9-36 VDC
|
|
|
|
Operating current consumption
|
<60mA @ 12 VDC
|
|
|
|
Connector
|
Industry standard M12 connector
|
|
|
|
Weight
|
73.5g
|
|
|
|
Size
|
Magnetic adsorption installation size:34.3*34.3*43.2mm,
Screw positioning installation size:34.3*34.3*38.5mm |
|
|
Screw positioning installation dimension drawing:
|
Color
Function
|
BLACK
|
WHITE
|
BLUE
|
BROWN
|
GRAY
|
|
|
|
|
|
|
|
|
|
GND
Power negative |
RS232(RXD)
Or RS485(D+) |
RS232(TXD)
Or RS485(D-) |
Vcc 9~36V
Power supply positive |
FACTORY
USE only
|
|
|
|
|
|
|
|
