Product Details
Place of Origin: Guangdong, China
Brand Name: RION
Certification: CE, ISO
Model Number: AKF390B
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $235.00/Pieces
Packaging Details: CARTON
Delivery Time: 7 DAYS FOR SAMPLES
Payment Terms: T/T, PAYAPL
Supply Ability: 5000 Set/Sets per Month
Theory: |
MEMS |
Brand: |
Vibration Sensor |
3 Axis Accelerometer: |
XYZ |
Output Interface: |
0~5v |
Power Supply: |
DC 9~36V |
Anti-impact: |
2000G |
Size: |
L50*W508H38mm |
Weight: |
100g |
Working Temperature: |
-40°C To +85°C |
Excellent Deviation Stability: |
Good Performance In Anti-impact,vibration And Temperature |
Usage: |
VIBRATION SENSOR |
Output: |
Digital Sensor |
Theory: |
MEMS |
Brand: |
Vibration Sensor |
3 Axis Accelerometer: |
XYZ |
Output Interface: |
0~5v |
Power Supply: |
DC 9~36V |
Anti-impact: |
2000G |
Size: |
L50*W508H38mm |
Weight: |
100g |
Working Temperature: |
-40°C To +85°C |
Excellent Deviation Stability: |
Good Performance In Anti-impact,vibration And Temperature |
Usage: |
VIBRATION SENSOR |
Output: |
Digital Sensor |
General Description

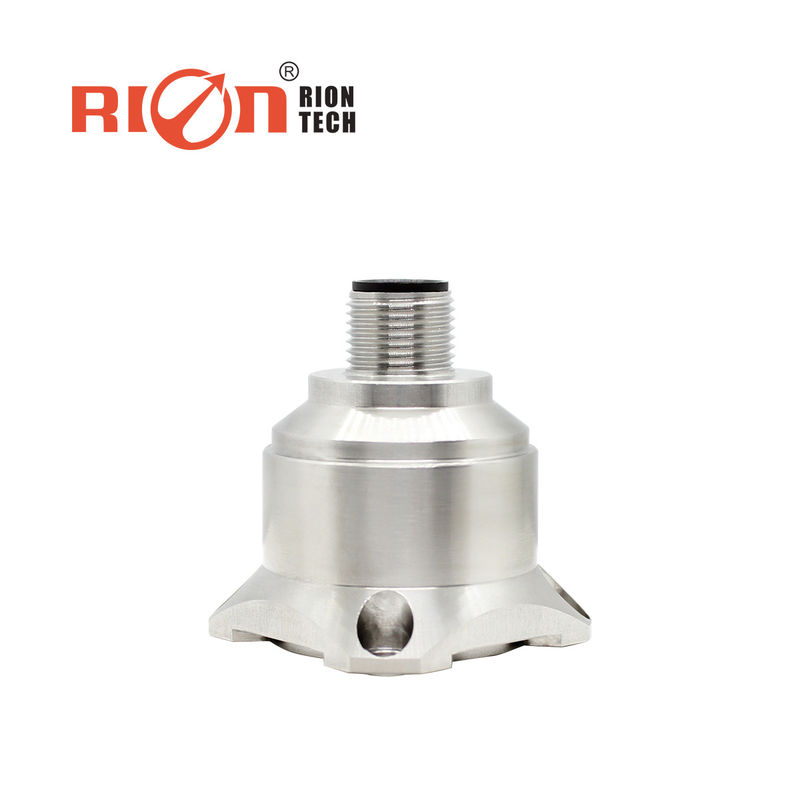

The AKF390 triaxial accelerometer is a voltage output type accelerometer independently developed and produced by RION Technology, which can be used in many fields such as vibration test and impact test. The product adopts analog voltage output, different address codes can be set, and multiple sensors are connected in series for a long distance, which is convenient for multi-point measurement and data analysis. AKF390 is a single crystal silicon capacitive sensor, which consists of a silicon chip processed by micro-machines, a low-power ASIC for signal adjustment, a microprocessor for storing compensation values, and a temperature sensor. This product has low power consumption, calibrated, sturdy structure and stable output. The new electronic configuration provides solid-state power for reset and comprehensive protection from over-voltage. The products have the characteristics of sturdy structure, low power consumption, excellent deviation stability, etc., to ensure the reliability of product output.
Feature
●three axis(X,Y,Z)
●output interface: 0~5v
●power supply:9-36V
●anti-impact:2000G
●excellent deviation stability
●size:L50×W50×H38mm
●weight:100g
●working temperature:-40°C to +85°C
●store temperature:-55°C to +100°C
●good performance in anti-impact, vibration and temperature
Application
●Crash record, fatigue monitoring and prediction
●Shipborne satellite tracking system
●Traffic system monitoring, roadbed analysis and high-speed railway fault detection
●Low frequency vibration and automatic monitoring
| AKF390 | PARAMETER | UNIT | |||||
| Range | ±2 | ±4 | ±8 | ±10 | ±20 | ±40 | g |
| Deviation Calibration | <1 | <1 | <1 | <1 | <1 | <1 | mg |
| Measuring Axial | X,Y,Z | X,Y,Z | X,Y,Z | X,Y,Z | X,Y,Z | X,Y,Z | Axis |
| Up/Off Power Repeatability | <2 | <2 | <2 | <2 | <2 | <2 | mg(max) |
| Sensitivity (± 10%) | 1250 | 625 | 312.5 | 250 | 125 | 62.5 | mv/g |
| Deviation temp. coefficient | 0.01 | 0.01 | 0.01 | 0.05 | 0.05 | 0.05 | %/℃ |
| Resolution/Threshold (@ 1Hz) | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | mg(max) |
| Nonlinearity | <0.5 | <0.5 | <0.8 | <1 | <1 | <1 | % FS(max) |
| Frequency response | 500 | 500 | 500 | 500 | 500 | 500 | Hz |
| Bandwidth (3DB) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | Hz |
| Cross-axis sensitivity | 1 | 1 | 1 | 2 | 2 | 2 | % |
| Lateral vibration sensitivity ratio | 1 | 1 | 2 | 5 | 5 | 5 | % |
| Resonance frequency | 2.4 | 2.4 | 2.4 | 5.5 | 5.5 | 5.5 | kHz |
| Noise density | 21 | 21 | 21 | 86.6 | 86.6 | 86.6 | μg/√Hz |
| 0g output 2.5V | <0.01 | <0.01 | <0.01 | <0.008 | <0.008 | <0.008 | mV |
| The output voltage | 0~5V | ||||||
| Reliability | MIL-HDBK-217,Grade 2 | ||||||
| Shock Resistance | 100g@11ms,3 Axial Direction (Half Sinusoid) | ||||||
| Recovery Time | <1ms(1000g, 1/2 Sin 1ms,Shock Acting On The i Axis) | ||||||
| Vibrate | 20g Rms,20~2000Hz (Random Noise ,o ,p,i Per Axis For Action 30 Minutes ) | ||||||
| Input(Vdd_Vss) | 9-36 VDC | ||||||
| Current Consumption | <60mA @ 12 VDC | ||||||
| Connector | Industrial Standard M12 Connector | ||||||
| Protection grade | IP67 | ||||||
| Weight | 73.5g | ||||||
| Dimension | 34.3*34.3*38.5mm | ||||||
|
Color
Function
|
BLACK
|
WHITE
|
BLUE
|
BROWN
|
GRAY
|
|
|
|
|
|
|
|
|
|
GND
Power negative |
RS232(RXD)
Or RS485(D+) |
RS232(TXD)
Or RS485(D-) |
Vcc 9~36V
Power supply positive |
FACTORY
USE only
|
|
|
|
|
|
|
|
