Product Details
Place of Origin: Guangdong, China
Brand Name: RION
Certification: CE, ISO
Model Number: AKF398B-A1
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $235.00/Pieces
Packaging Details: cartons
Delivery Time: 7 days
Payment Terms: T/T, PAYPAL
Supply Ability: 3000/month
Usage: |
VIBRATION SENSOR |
Theory: |
MEMS |
Output: |
Analog SENSOR |
Brand: |
Accelerometer Sensor |

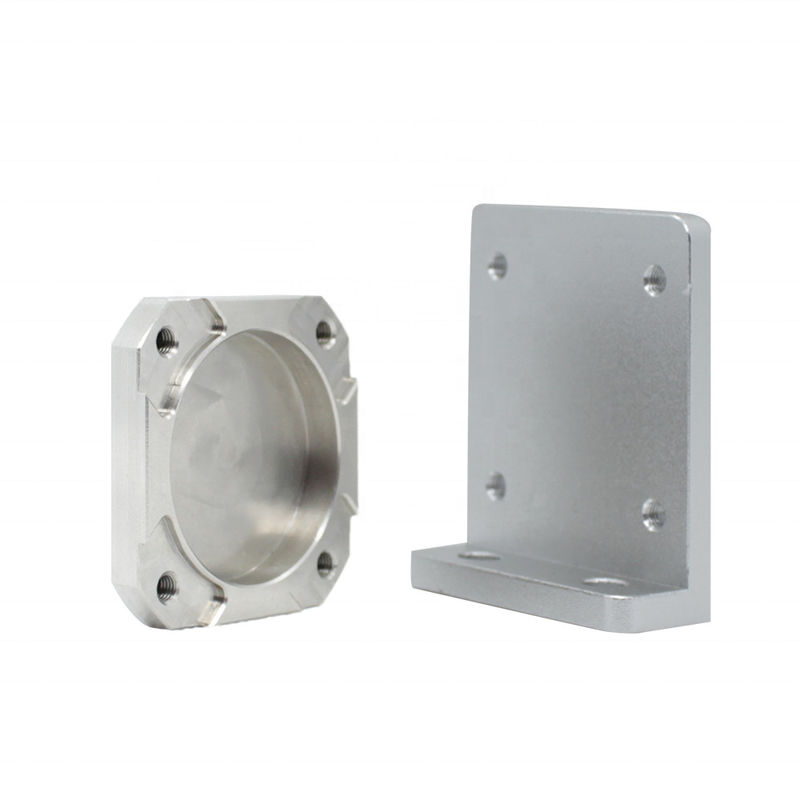

Mounting Type: |
Standard , Magnetic |
Measuring Range: |
Max +/-40G |
Accelerometer Output: |
4-20mA |
Power Supply: |
9-36V |
Anti-impact: |
2000G |
Working Temperatur: |
-40°C ~ +85°C |
Store Temperature: |
-55°C ~ +100°C |
Size: |
L34.4*W34.4*H38mm |
Weight: |
73.5g |
Measuring Range: |
±2g ,±4g,±8g,±10g ,±20g,±40g |
Resolution/Threshold (@ 1Hz): |
< 1mg(max) |
Bandwidth (3Db)): |
1000Hz |
Usage: |
VIBRATION SENSOR |
Theory: |
MEMS |
Output: |
Analog SENSOR |
Brand: |
Accelerometer Sensor |
Mounting Type: |
Standard , Magnetic |
Measuring Range: |
Max +/-40G |
Accelerometer Output: |
4-20mA |
Power Supply: |
9-36V |
Anti-impact: |
2000G |
Working Temperatur: |
-40°C ~ +85°C |
Store Temperature: |
-55°C ~ +100°C |
Size: |
L34.4*W34.4*H38mm |
Weight: |
73.5g |
Measuring Range: |
±2g ,±4g,±8g,±10g ,±20g,±40g |
Resolution/Threshold (@ 1Hz): |
< 1mg(max) |
Bandwidth (3Db)): |
1000Hz |
★ Crash record, fatigue monitoring and prediction
★ Wind power generation
★ Traffic system monitoring, roadbed analysis and high-speed railway fault detection
★ Large machinery, engine
★Low frequency vibration and automatic monitoring
★ Medical equipment
★ Bridge
★ Vehicle
★ Road roller
Range
|
±2
|
±4
|
±8
|
±10
|
±20
|
±40
|
g
|
||||||
Deviation Calibration
|
<1
|
<1
|
<1
|
<1
|
<1
|
<1
|
mg
|
||||||
Measuring Axial
|
X,Y,Z
|
X,Y,Z
|
X,Y,Z
|
X,Y,Z
|
X,Y,Z
|
X,Y,Z
|
axis
|
||||||
Up/Off Power Repeatability
|
<2
|
<2
|
<2
|
<2
|
<2
|
<2
|
mg(max)
|
||||||
Sensitivity (± 10%)
|
4
|
2
|
1
|
0.8
|
0.4
|
0.2
|
mA/g
|
||||||
Deviation temperature coefficient
|
0.01
|
0.01
|
0.01
|
0.05
|
0.05
|
0.05
|
%/℃
|
||||||
Resolution/Threshold (@ 1Hz)
|
< 1
|
< 1
|
< 1
|
< 1
|
< 1
|
< 1
|
mg(max)
|
||||||
Nonlinearity
|
<0.5
|
<0.5
|
<0.8
|
<1
|
<1
|
<1
|
% FS(max)
|
||||||
Frequency response
|
500
|
500
|
500
|
500
|
500
|
500
|
Hz
|
||||||
Bandwidth (3Db)
|
1000
|
1000
|
1000
|
1000
|
1000
|
1000
|
Hz
|
||||||
Cross-axis sensitivity
|
1
|
1
|
1
|
2
|
2
|
2
|
%
|
||||||
Lateral vibration sensitivity ratio
|
1
|
1
|
2
|
5
|
5
|
5
|
%
|
||||||
Resonant frequency
|
2.4
|
2.1
|
2.4
|
5.5
|
5.5
|
5.5
|
kHz
|
||||||
noise density
|
21
|
21
|
21
|
86.6
|
86.6
|
86.6
|
μg/√Hz
|
||||||
0g output 12mA
|
<0.005
|
<0.005
|
<0.005
|
<0.003
|
<0.003
|
<0.003
|
mA
|
||||||
Output current
|
4~20mA
|
|
|
|
|
|
|
||||||
Reliability
|
MIL-HDBK-217,grade two
|
|
|
|
|
|
|
||||||
Shock Resistance
|
100g@11ms,Triaxial And Identical (Half Sine Wave)
|
|
|
|
|
|
|
||||||
Recovery Time
|
<1ms(1000g, 1/2 sin 1ms, Shock Acting On The i Axis)
|
|
|
|
|
|
|
||||||
Vibration
|
20g Rms,20~2000Hz (Random Noise ,o ,p,i Per Axis For Action 30 Minutes )
|
|
|
|
|
|
|
||||||
Input(VDD_VSS)
|
9-36 VDC
|
|
|
|
|
|
|
||||||
Running current consumption
|
<60mA @ 12 VDC
|
|
|
|
|
|
|
||||||

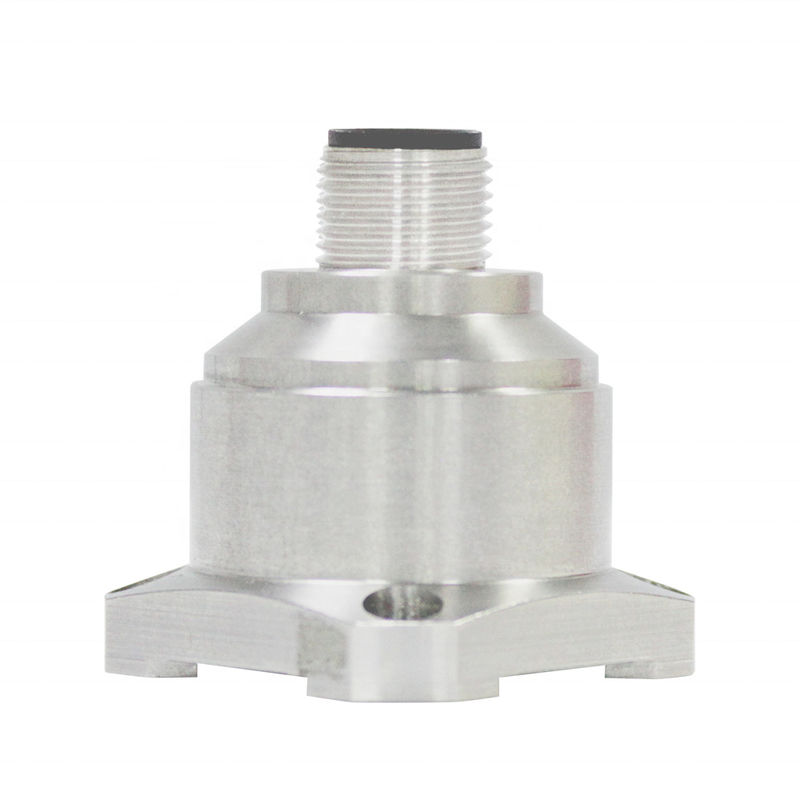

Connector
|
Industrial Standard M12 Connector
|
|
|
|
|
|
|
||||||
Weight
|
73.5g
|
|
|
|
|
|
|
||||||
Dimension
|
34.3*34.3*38.5mm
|
|
|
|
|
|
|
