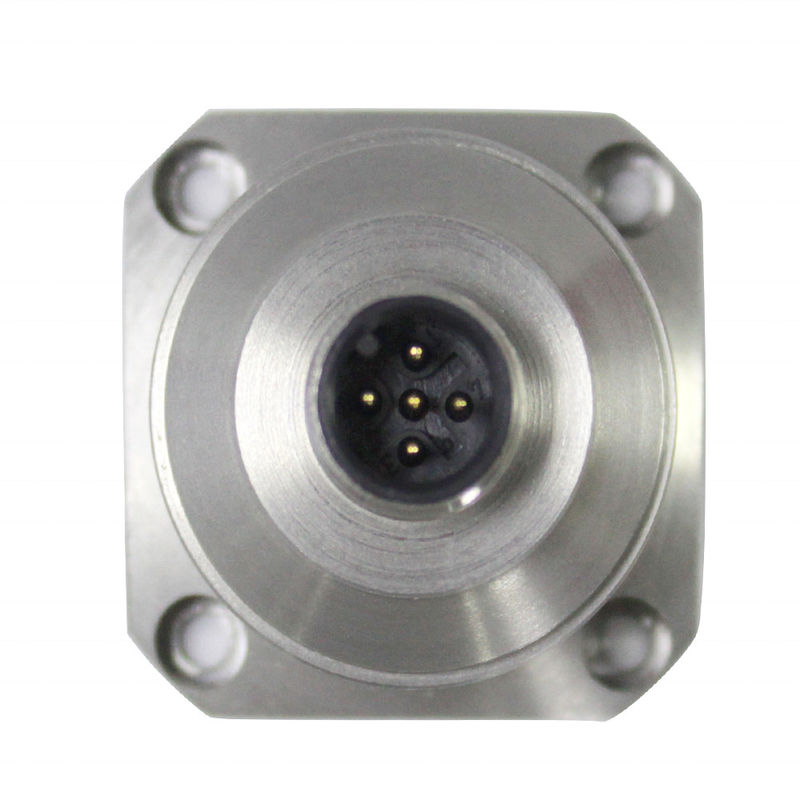

1KHz MEMS Vibration Sensor TTL AKF392 RS232 Output
1KHz MEMS Vibration Sensor TTL AKF392 RS232 Output
1KHz MEMS Vibration Sensor TTL AKF392 RS232 Output
1KHz MEMS Vibration Sensor TTL AKF392 RS232 Output

1KHz MEMS Vibration Sensor TTL AKF392 RS232 Output

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE, ISO

Model Number: AKF392-2G

Payment & Shipping Terms

Minimum Order Quantity: 1 Pieces

Price: $235.00/Pieces

Packaging Details: cartons

Delivery Time: 7 DAYS FOR SAMPLES

Payment Terms: T/T,PAYPAL

Supply Ability: 3000 PCS/MONTH

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

RS232 MEMS Vibration Sensor AKF392

,

TTL MEMS Vibration Sensor AKF392

,

1KHz MEMS Vibration Sensor AKF392

Theory:
MEMS
Brand:
Accelerometer Sensor
Output Type:
RS232, RS485 Or TTL
Mounting Type:
Standard , Magnetic
Measuring Range:
Max +/-40G
Technology:
MEMS
Function:
Vibration Testing
Acceleration Range:
Max Range +/-40G
Voltage - Input:
DC9-36V
Accelerometer Output:
RS232, RS485, TTL
Power Supply:
9-36V
Anti-impact:
2000G
Working Temperatur:
-40°C ~ +85°C
Store Temperature:
-55°C ~ +100°C
Size:
L34.4*W34.4*H38mm
Weight:
73.5g
Measuring Range:
±2g ,±4g,±8g,±10g ,±20g,±40g
Resolution/Threshold (@ 1Hz):
< 1mg(max)
Bandwidth (3Db)):
1000Hz
Usage:
VIBRATION SENSOR
Output:
Digital Sensor
Interface:
Digital
Theory:
MEMS
Brand:
Accelerometer Sensor
Output Type:
RS232, RS485 Or TTL
Mounting Type:
Standard , Magnetic
Measuring Range:
Max +/-40G
Technology:
MEMS
Function:
Vibration Testing
Acceleration Range:
Max Range +/-40G
Voltage - Input:
DC9-36V
Accelerometer Output:
RS232, RS485, TTL
Power Supply:
9-36V
Anti-impact:
2000G
Working Temperatur:
-40°C ~ +85°C
Store Temperature:
-55°C ~ +100°C
Size:
L34.4*W34.4*H38mm
Weight:
73.5g
Measuring Range:
±2g ,±4g,±8g,±10g ,±20g,±40g
Resolution/Threshold (@ 1Hz):
< 1mg(max)
Bandwidth (3Db)):
1000Hz
Usage:
VIBRATION SENSOR
Output:
Digital Sensor
Interface:
Digital
Description
1KHz MEMS Vibration Sensor TTL AKF392 RS232 Output

3 Axis Accelerometer RS485 3 Axis MEMS Based Accelerometer Price




▶ PRODUCT FEATURES


● Three-axis (X,Y,Z)
● output: RS232；RS485；TTL
● power voltage: 9-36V
● anti-impact: 2000G
● Size: L50×W50×H38mm
● weight: 73.5g
● work temp:-40°C to +85°C
● Storage temp:-55°C to +100°C
● Excellent deviation stability
● Excellent performance (impact, vibration and temperature)


▶ APPLICATION

● crash record, fatigue monitoring and prediction

● wind power generation

● Low frequency vibration and automatic monitoring

● automobile

● Large machinery, engine

● armamentarium

 ● bridge

● road roller


▶ PRODUCT PARAMETERS
Range
±2
±4
±8
±10
±20
±40
g
Deviation Calibration
<1
<1
<1
<1
<1
<1
mg
Measuring Axial
X,Y,Z
X,Y,Z
X,Y,Z
X,Y,Z
X,Y,Z
X,Y,Z
axis
Up/Off Power Repeatability
<2
<2
<2
<2
<2
<2
mg(max)
Deviation temperature coefficient
0.01
0.01
0.01
0.01
0.01
0.01
%/℃
(Typical value)
Resolution/Threshold (@ 1Hz)
< 1
< 1
< 1
< 1
< 1
< 1
mg(max)
Nonlinearity
<0.5
<0.8
<1
<1
<1
<1
% FS(max)
Frequency response
2.4
2.4
2.4
5.5
5.5
5.5
kHz
Bandwidth (3Db))
500
500
500
500
500
500
Hz
Cross-axis sensitivity
1
1
1
2
2
2
%
Lateral vibration sensitivity ratio
1
1
2
5
5
5
%
Resonance frequency
2.4
2.4
2.4
5.5
5.5
5.5
kHz
noise density
21
21
21
86.6
86.6
86.6
μg/√Hz
0g output 2.5V
<0.01
<0.01
<0.01
<0.008
<0.008
<0.008
mV
Output rate
5Hz,10Hz,25Hz,50Hz,100Hz,200Hz,500Hz,1000Hz






Output interface
RS232/RS485/TTL






Protocol
Rion Standard Protocol And Modbus Rtu Protocol






Reliability
MIL-HDBK-217,Grade 2






Shock Resistance
100g@11ms,Triaxial And Identical (Half Sine Wave)






Recovery Time
<1ms(1000g, 1/2 Sin 1ms,Shock Acting On The i Axis)






Vibrate
20g Rms,20~2000Hz (Random Noise ,o ,p,i Per Axis For Action 30 Minutes






Reliability
MIL-HDBK-217,Grade 2






Shock Resistance
100g@11ms,Triaxial And Identical (Half Sine Wave)






Input(Vdd_Vss)
9-36 VDC






Recovery Time
<1ms(1000g, 1/2 Sin 1ms,Shock Acting On The i Axis)






Vibrate
20g Rms,20~2000Hz (Random Noise ,o ,p,i Per Axis For Action 30 Minutes )






Current Consumption
<60mA @ 12 VDC






Connector
Industrial Standard M12 Connector






Weight
73.5g






Dimension
34.3*34.3*38.5mm






1KHz MEMS Vibration Sensor TTL AKF392 RS232 Output
1KHz MEMS Vibration Sensor TTL AKF392 RS232 Output
1KHz MEMS Vibration Sensor TTL AKF392 RS232 Output
