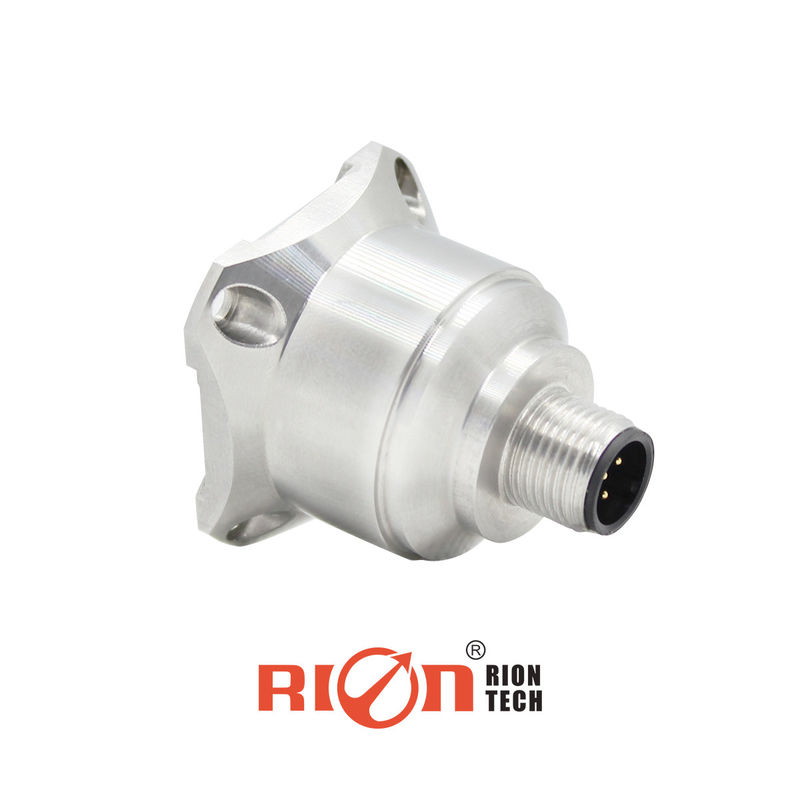

Triaxial MEMS Accelerometer For Road Roller Using

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE, ISO

Model Number: AKG392

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $235.00/Pieces

Packaging Details: 1pcs vibration sensor in each inner box , 50pcs/ctn

Delivery Time: 7 days for samples

Payment Terms: T/T, PAYPAL

Supply Ability: 3000 PCS/MONTH

Get Best Price
Contact Now
Specifications
Highlight:

Road Roller Triaxial MEMS Accelerometer

,

Roller 3 Axis Vibration Meter

,

36V Triaxial MEMS Accelerometer

Output:
RS485
Power Supply:
DC 9~36V
Power On/off Repeatability:
<2mg
Bandwidth (3DB):
500Hz
Resonance Frequency:
5.5kHz
Material:
Stainless Steel
Output:
RS485
Power Supply:
DC 9~36V
Power On/off Repeatability:
<2mg
Bandwidth (3DB):
500Hz
Resonance Frequency:
5.5kHz
Material:
Stainless Steel
Description
Triaxial MEMS Accelerometer For Road Roller Using

Triaxial MEMS Accelerometer For Road Roller Using



Download datasheet please click this

AKF392 MEMS DIGITAL ACCELEROMETER.pdf



▶ APPLICATION

★ Medical equipment

★ Bridge

★ Automobile

★ Road roller

★ Crash records, fatigue monitoring and prediction

★ Wind power generation

★ Large machinery, engines

★ Low-frequency vibration and automatic monitoring

★ Traffic system monitoring, roadbed analysis and high-speed railway fault detection





Specifications



AKG392 PARAMETERS UNIT
Range ±2 ±4 ±8 ±10 ±20 ±40 g
Bias calibration <1 <1 <1 <1 <1 <1 mg
Measure axis X,Y,Z X,Y,Z X,Y,Z X,Y,Z X,Y,Z X,Y,Z axis
Power on/off repeatability <2 <2 <2 <2 <2 <2 mg(max)
Bias temperature coefficient 0.15 0.15 0.15 0.75 0.75 0.75 %/℃(typical)
Resolution/threshold (@ 1Hz) < 1 < 1 < 1 < 1 < 1 < 1 mg(max)
Non-linearity <0.5 <0.8 <1 <1 <1 <1 % FS(max)
Bandwidth (3DB) 500 500 500 500 500 500 Hz
Cross axis sensitivity 1 1 1 2 2 2 %
Transverse vibration sensitivity ratio 1 1 2 5 5 5 %
Resonance frequency 2.4 2.4 2.4 5.5 5.5 5.5 kHz
Output rate 5Hz,10Hz,25Hz,50Hz,100Hz,200Hz,500Hz,1000Hz
Output Interface RS232/RS485/TTL
Protocol RION 68 protocol and MODBUS RTU protocol
Reliability MIL-HDBK-217,Grade 2
Impact resistance 100g@11ms, 3 Axial Direction (Half Sinusoid)
Recovery Time <1ms(1000g, 1/2 sin 1ms, Impact on the i-axis)
Vibration 20g rms,20~2000Hz (Random noise, o, p, i acts on each axis for 30 minutes)
Input(VDD_VSS) 9~36 VDC
Operating current consumption <60mA @ 12 VDC
Connector Industry standard M12 connector
Weight Product net weight: 82g, Magnetic base: 48g, L-shaped adapter plate 20g
Size

Product size: 34.3*34.3*38.5mm

Magnetic adsorption base size: 34.23*34.23*6mm

L-shaped adapter plate size: 36*44*15mm



▶Description



The AKF392B three axis accelerometer is produced using Swiss patented technology. This acceleration series can be applied to various fields such as vibration testing and impact testing.a low-power ASIC for signal conditioning,a microprocessor for storing compensation values and a temperature sensor.  This series of products has the characteristics of strong structure, low power consumption and excellent deviation stability, which guarantees outstanding output reliability



▶ COMMUNICATION PROTOCOL

The product includes 68 protocol and MODBUS RTU two protocols. The default configuration parameters of the protocol are as follows:

PROTOCOL RION 68 PROTOCOL MODBUS-RTU
Address code 0 1
Broadcast address 255 0
Serial port baud rate 9600 9600
Parity bit No parity Even parity
Serial port start bit 1 bit 1 bit
Serial port data length 8 bits 8 bits
Serial port stop bit 1 bit 1 bit
Output mode Question and answer Question and answer
Data Format Data format Data format
Data check method Checksum CRC16



Size
