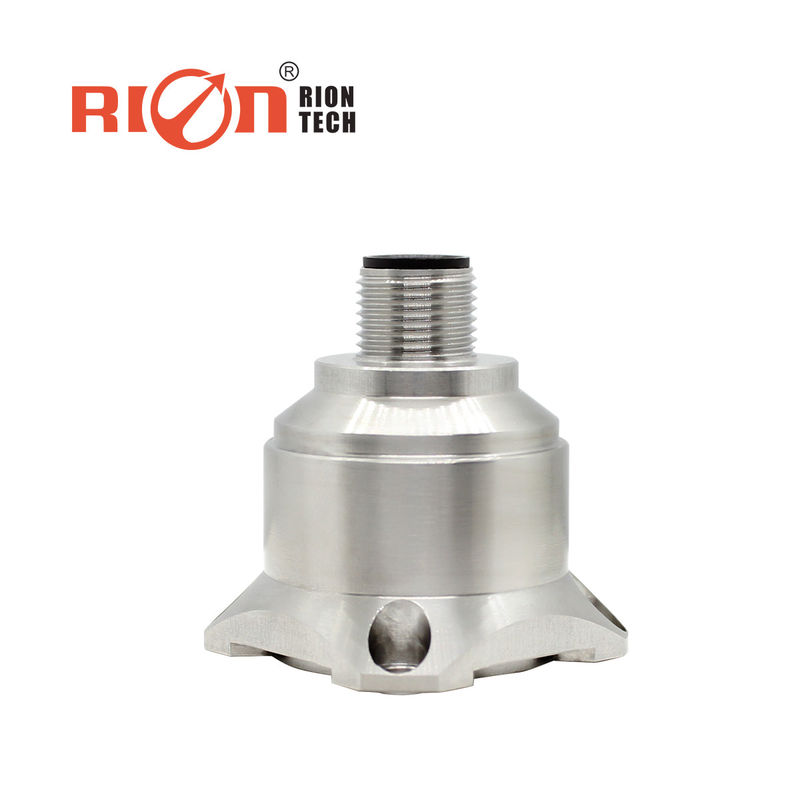

AKF390B MEMS Based Vibration Sensor IP67 RION tilt sensor

Name: AKF390B MEMS Based Vibration Sensor IP67 RION tilt sensor
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: AKF390B-V1
Price: 235.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE, ISO

Model Number: AKF390B-V1

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $235.00/Pieces

Packaging Details: cartons

Delivery Time: 7 days for samples

Payment Terms: T/T,PAYPAL

Supply Ability: 3000/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              IP67 Vibration Sensor AKF390B, MEMS Vibration Sensor AKF390B


Theory:	MEMS	Brand:	Accelerometer Sensor
Measuring Range:	Max +/-40G	Accelerometer Output:	0-5V
Power Supply:	9-36V	Working Temperatur:	-40°C ~ +85°C
Weight:	Product Net Weight: 82g	Measuring Range:	2g~40g

Theory:	MEMS
Brand:	Accelerometer Sensor
Measuring Range:	Max +/-40G
Accelerometer Output:	0-5V
Power Supply:	9-36V
Working Temperatur:	-40°C ~ +85°C
Weight:	Product Net Weight: 82g
Measuring Range:	2g~40g

Description

AKF390B MEMS Based Vibration Sensor IP67 RION tilt sensor

AKF390 MEMS VOLTAGE VIBRATION SENSOR.pdf

The AKF390 triaxial VIBRATION SENSOR is a voltage output type VIBRATION SENSOR independently developed and produced, which can be used in many fields such as vibration test and impact test. The product adopts analog voltage output, AKF390 is a single crystal silicon capacitive sensor, which consists of a silicon chip processed by micro-machines, a low power ASIC for signal adjustment, a microprocessor for storing compensation values, and a temperature sensor. This product has low power consumption, calibrated, sturdy structure and stable output. The new electronic configuration provides solid-state power for reset and comprehensive protection from over-voltage. The products have the characteristics of sturdy structure, low power consumption, excellent deviation stability, etc., to ensure the reliability of product output.

AKF390	PARAMETER						UNIT
Range	±2	±4	±8	±10	±20	±40	g
Deviation Calibration	<1	<1	<1	<1	<1	<1	mg
Measuring Axial	X,Y,Z	X,Y,Z	X,Y,Z	X,Y,Z	X,Y,Z	X,Y,Z	Axis
Up/Off Power Repeatability	<2	<2	<2	<2	<2	<2	mg(max)
Sensitivity (± 10%)	1250	625	312.5	250	125	62.5	mv/g
Deviation temp. coefficient	0.01	0.01	0.01	0.05	0.05	0.05	%/℃
Resolution/Threshold (@ 1Hz)	< 1	< 1	< 1	< 1	< 1	< 1	mg(max)
Nonlinearity	<0.5	<0.5	<0.8	<1	<1	<1	% FS(max)
Frequency response	500	500	500	500	500	500	Hz
Bandwidth (3DB)	1000	1000	1000	1000	1000	1000	Hz
Cross-axis sensitivity	1	1	1	2	2	2	%
Lateral vibration sensitivity ratio	1	1	2	5	5	5	%
Resonance frequency	2.4	2.4	2.4	5.5	5.5	5.5	kHz
Noise density	21	21	21	86.6	86.6	86.6	μg/√Hz
0g output 2.5V	<0.01	<0.01	<0.01	<0.008	<0.008	<0.008	mV
The output voltage	0~5V
Input(Vdd_Vss)	9~36 VDC
Current Consumption	<60mA @ 12 VDC
Connector	Industrial Standard M12 Connector
Protection grade	IP67
Weight	Product net weight: 82g, magnetic base: 48g, L-shaped adapter plate 20g
Dimension	Product size: 34.334.338.5mm Magnetic adsorption base size: 34.2334.238.1mm L-shaped adapter plate size: 364415mm

AKF390B MEMS Based Vibration Sensor IP67 RION tilt sensor
