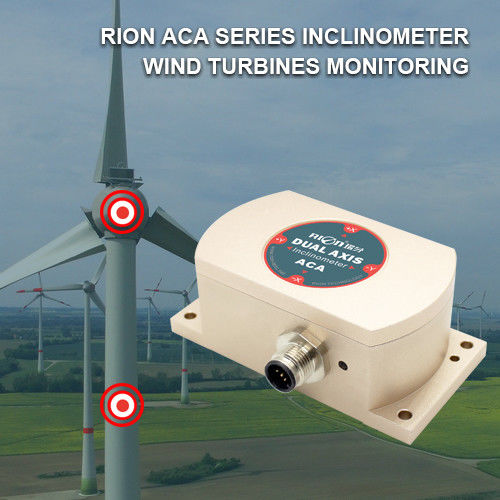

CAN 2.0A Wind Power Inclination Sensor , Precise Wind Tower / Turbines Tilt Sensor

Name: CAN 2.0A Wind Power Inclination Sensor , Precise Wind Tower / Turbines Tilt Sensor
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: ACA616T-10
Price: 594 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: RION

Certification: CE, ISO

Model Number: ACA616T-10

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 594 USD/pcs

Packaging Details: Carton

Delivery Time: 10 days

Payment Terms: T/T, PayPal

Supply Ability: 1000/month

Get Best Price

Contact Now

Specifications

Description

Ratings & Reviews

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      Dam Wind Power Inclination Sensor, CAN 2.0A Tilt Sensor Inclinometer, IP67 Wind Turbines Tilt Sensor


Measure Range:	30°	Measure Axis:	X Y
Resolution:	0.001°	Measure Accuracy:	0.003°
Long Term Stability:	0.01°	Weight:	235g

Measure Range:	30°
Measure Axis:	X Y
Resolution:	0.001°
Measure Accuracy:	0.003°
Long Term Stability:	0.01°
Weight:	235g

Description

CAN 2.0A Wind Power Inclination Sensor , Precise Wind Tower / Turbines Tilt Sensor

wind power inclination sensor, wind tower tilt sensor, precise wind turbines angle sensor

▶ TECHNICAL DATA

ACA616T&626T-C2	CONDITIONS	PARAMETERS			UNIT
Measure range		±10	±30	±60	°
Measure axis		X/XY	X/XY	X/XY	AXIS
Resolution		0.001	0.001	0.001	°
Measure accuracy	@25℃	0.003	0.01	0.02	°
Long term stability		0.01	0.02	0.03	°
Zero Temp. coefficient	-40~+85℃	±0.0004	±0.0004	±0.0004	°/℃
Sensitivity temp-coeffi	-40~+85℃	≤100	≤100	≤100	ppm/℃
Power on time		0.5	0.5	0.5	S
Response time		0.02	0.02	0.02	S
Interface type	CAN 2.0A
EMC	According to EN61000 and GBT17626
MTBF	≥50000 hours/times
Insulation Resistance	≥100MΩ
Shockproof	100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration	10grms,10～1000Hz
Protection grade	IP67
Cables	Standard configuration: 2m length, wear-resistant, wide temperature, shielded cable 5P * 5.7mm aviation connector
Weight	235g(without cable)

▶ APPLICATION

★ Wind turbines angle measure

★ Engineering vehicles automatic leveling

★ Bridge & dam detection

★ Laser equipment position

★ Medical facilities angle control

▶ FEATURES

★ Single / dual axis inclination measurement

★ Measuring Range :±1～±60° optional

★ Size:L92×W48×H36mm

★ Wide voltage input: 9～36V

★ Wide temperature working: -40～+85℃

★ IP67 protection grade

★ High Resolution: 0.001°

★ Water-proof air-plug

★ Highly anti-vibration performance >2000g

★ Output mode CAN 2.0A are optional

▶ GENERAL DESCRIPTION
ACA616T is a full-temperature compensated high-precision single / dual-axis inclinometer developed by RION Technology on the basis of high-precision inclination platform. Its good temperature stability can be used in a wide temperature environment of -40 ~ 85℃ In addition, the system has a built-in high-precision 24it A / D converter, and through a 5-level conversion algorithm, it can measure the tilt and pitch angle of the sensor output relative to the horizontal plane. Output protocol CAN2.0A.

The characteristics of non-contact installation make this product have good system integration. Just fix the sensor on the surface of the measured object with a screwdriver, the attitude and inclination of the object can be automatically calculated. It has strong ability to withstand shock and vibration, and has a great competitive advantage among domestic counterparts. It is specifically aimed at the industrial fields that high-end users require.

CAN 2.0A Wind Power Inclination Sensor , Precise Wind Tower / Turbines Tilt Sensor 0

CAN 2.0A Wind Power Inclination Sensor , Precise Wind Tower / Turbines Tilt Sensor 1

CAN 2.0A Wind Power Inclination Sensor , Precise Wind Tower / Turbines Tilt Sensor 2

CAN 2.0A Wind Power Inclination Sensor , Precise Wind Tower / Turbines Tilt Sensor 3

CAN 2.0A Wind Power Inclination Sensor , Precise Wind Tower / Turbines Tilt Sensor 4

CAN 2.0A Wind Power Inclination Sensor , Precise Wind Tower / Turbines Tilt Sensor 5
