Wind Power Tilt Sensor Inclinometer Inclination Vibration Safety

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE, ISO

Model Number: PCA826-CAN

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $703.00/Pieces 1-9 Pieces

Packaging Details: 1pcs/box ,100pcs/ctn

Delivery Time: 7 days for samples

Payment Terms: T/T, Paypal

Supply Ability: 500/month

Get Best Price
Contact Now
Specifications
Highlight:

Wind Power Tilt Sensor Inclinometer

,

CAN2.0 Tilt Sensor Inclinometer

,

Wind Power Inclinometer Tilt Angle Meter

Name:
Wind Power Monitor
Output:
RS485, RS422, CAN2.0
Resolution:
0.0005 Degree
Waterproof:
IP67
Size:
L82×W70×H42mm
Absolute Accuracy:
±0.001deg
Name:
Wind Power Monitor
Output:
RS485, RS422, CAN2.0
Resolution:
0.0005 Degree
Waterproof:
IP67
Size:
L82×W70×H42mm
Absolute Accuracy:
±0.001deg
Description
Wind Power Tilt Sensor Inclinometer Inclination Vibration Safety

Wind power inclination safety sensor vibration safety sensor ​



▶ INSTALLATION PRECAUTION

Please install the tilt sensor according to the correct method. Incorrect installation will cause measurement errors. Pay special attention to one "surface" and two "line":

1) The sensor mounting surface and the surface to be measured must be fixed tightly, flat and stable, if installation surface is unevenness, it will cause the angle error.

2) The axis of the sensor and the axis to be measured must be parallel, and there should be no angle between the two axes as possible.

Wind Power Tilt Sensor Inclinometer Inclination Vibration Safety 0



▶ MAIN FEATURES

★ Biaxial tilt angle measurement

★ Range ±1~±60° optional

★ Horizontal/vertical optional

★ DC 9~36V wide voltage input

★ Wide temperature operation -40~+85℃

★ Resolution 0.0005°

★ IP67 protection grade

★ Size: L82×W70×H42mm

★ Output mode CAN2.0A



APPLICATION

★ Wind power monitoring

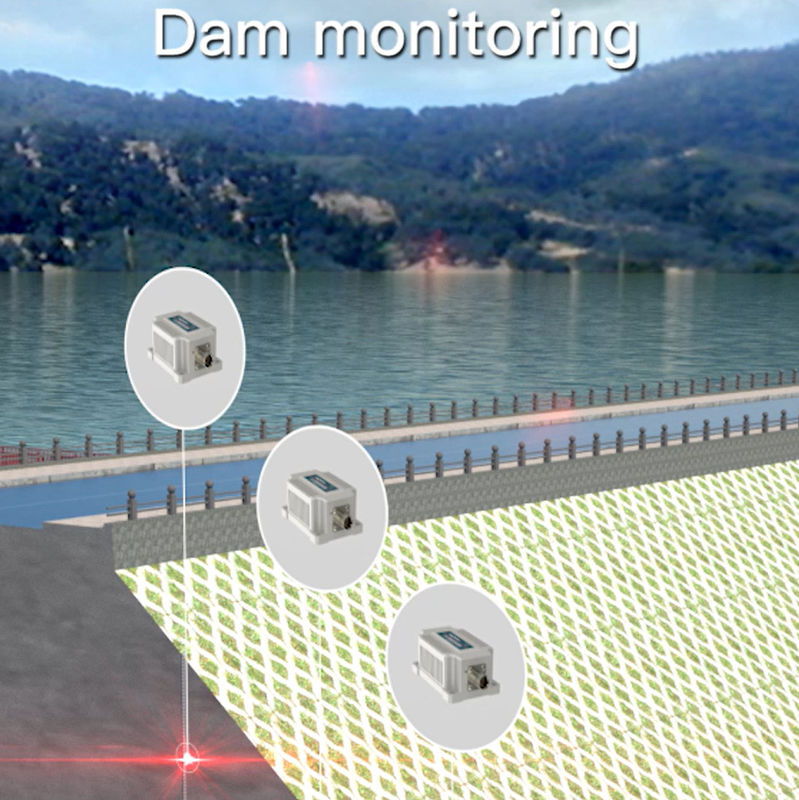

★ Bridge and Dam monitoring

★ Ancient building monitoring

★ High-speed rail track monitoring

★ Ground satellite communication vehicles

★ Railway gauge ruler and gauge leveling

★ Satellite communication vehicle

★ Geological equipment tilt monitoring

★ Engineering vehicle leveling



▶ INTRODUCTION

PCA826T-CAN2.0A is a high-performance product developed by Rion Technology specially for the high-precision inclination measurement. Before leaving the factory, all products would have full temperature range calibration and compensation, and a two-week long-term stability test ensures compatibility under different working conditions and maintains the best performance indicators during the long-term test cycle. Built-in filtering algorithm makes the product have lower noise and higher response speed. It is CAN2.0A output. The characteristics of non-contact installation make PCA826T easy and convenient to install. You only need to mount the sensor on the surface of the object to be measured with screws, and the horizontal angle of the object can be automatically calculated, which is simple to use. Strong resistance to external electromagnetic interference, strong shock and vibration ability, widely used in satellite communication vehicles,radar antenna vehicles, wind turbines etc.





Specification

PCA826T  CONDITION PARAMETERS UNIT
Measure range   ±5 ±10 ±30 ±60 °
Measure axis   XY XY XY XY
Resolution   0.0005 0.0005 0.0005 0.0005 °
Measure accuracy @25℃ 0.001 0.002 0.003 0.005 °
Long-term stability   0.02 0.02 0.03 0.04 °
Zero temp coefficient -40~85℃ 0.0002 0.0002 0.0002 0.0002 °/℃
Sensitivity temp coefficient -40~85℃ ≤50 ≤50 ≤50 ≤50 ppm/℃
Power on time   <0.4 <0.4 <0.4 <0.4 S
Response frequency   0.04 0.04 0.04 0.04 S
Output rate 5Hz,10Hz,25Hz,35Hz,50Hz,100Hz. Can be set
Ouput signal RS485/RS422 optional
EMC According to EN61000 and GBT17626
MTBF ≥50000 hour/time
Insulation Resistance ≥100 MΩ
Shockproof 100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration 10grms,10~1000Hz
Protection grade IP67
Cables Standard configuration 1 meter, wear-resistant, wide temperature, shielded cable, mm aviation connector
Weight 385g (exclude cable)
