▶ GENERAL DESCRIPTION

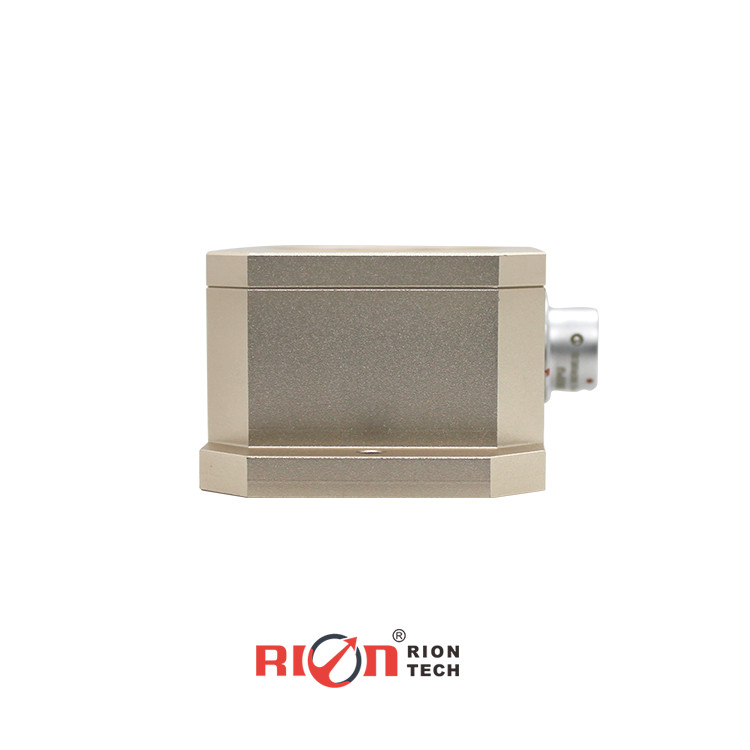

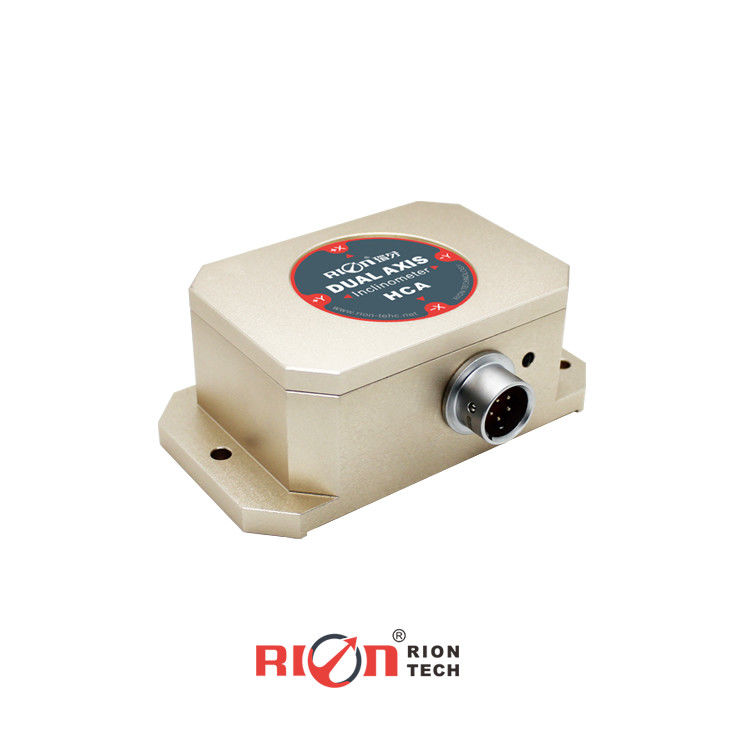

HCA526T-CAN2.0A is a high accuracy dual -axis inclinometer developed by RION company, inherit the stability of the SCA series, while the accuracy be effectively improved, and the temperature drift performance with much more excellence , in addition the system with built-in high-precision 16bit A / D differential converter, meanwhile through 5 filtering algorithm, which can measure the angle of sensor output relative to the horizontal tilt and pitch tilt. The output interface CAN 2.0A are optional.Because of Built in ADI company’s high precision digital temperature sensor that can correct the sensor temperature drift in accordance with the changes of the built-in temperature sensor(temperature output are optional), to ensure high repeatability of the product in the low-temperature and high-temperature environment. The output frequency response most up to 100Hz, for higher response frequency Division we can customize according to the user requests. The products are truly industrial-grade products, reliable performance, scalability. Suitable for a variety of harsh industrial control environment.
▶ FEATURES
★ Dual axis inclination measurement ★ Range ± 1 ～ ± 60 ° optional
★ Size: 90 × 50 × 34mm ★ DC 9 ～ 36V wide voltage input
★ Wide temperature operation -40 ～ + 85 ℃ ★ Resolution 0.001 °
★ IP67 protection level ★ High vibration resistance> 2000g
★ Waterproof aviation plug
▶ APPLICATION
★Satellite positioning Search ★Rail-mobile monitoring
★engineering mechanical measurement of dip angle ★oil-well drilling equipment
★Radar detection of vehicle platform ★Underground drill posture navigation
★Gun Barrel angle measurement in early shooting ★Based on the angle direction measurement ★Satellite communications vehicle posture detection ★Shield pipe jacking application
★Ship’s navigation posture measurement ★Geological equipment inclined monitoring
▶ TECHNICAL DATA
|
HCA516&526T-C2 |
CONDITION | PARAMETERS | UNIT | ||
| Measure range | ±10 | ±30 | ±60 | ° | |
| Measure axis | XY | XY | XY | ||
| Resolution | 0.001 | 0.001 | 0.001 | ° | |
| Measure accuracy | @25℃ | 0.005 | 0.01 | 0.02 | ° |
| Long term stability | 0.01 | 0.02 | 0.05 | ° | |
| Zero Temp.coefficient | -40～85℃ | ±0.002 | ±0.002 | ±0.002 | °/℃ |
| Sensitivity temp. coefficient | -40～85℃ | ≤50 | ≤50 | ≤50 | ppm/℃ |
| Power on time | 0.5 | 0.5 | 0.5 | S | |
| Response time | 0.02 | 0.02 | 0.02 | s | |
| Output rate | 5Hz,15Hz,35Hz,50Hz can be set | ||||
| Output signal | CAN2.0A | ||||
| EMC | According to EN61000 and GBT17626 | ||||
| MTBF | ≥50000hours/times | ||||
| Insulation Resistance | ≥100MΩ | ||||
| Shockproof | 100g@11ms,3 Axial Direction (Half Sinusoid) | ||||
| Anti-vibration | 10grms,10～1000Hz | ||||
| Protection grade | IP67 | ||||
| Cables | Standard configuration: 1m length, wear-resistant, wide temperature, shielded cable 4*0.4mm2 aviation connector | ||||
| Weight | 190g(without cable ) | ||||
*This parameter only list ± 10 °, ± 30 °, ± 60 ° series for reference. For other measurement ranges, please refer to the nearest neighbor parameter.
