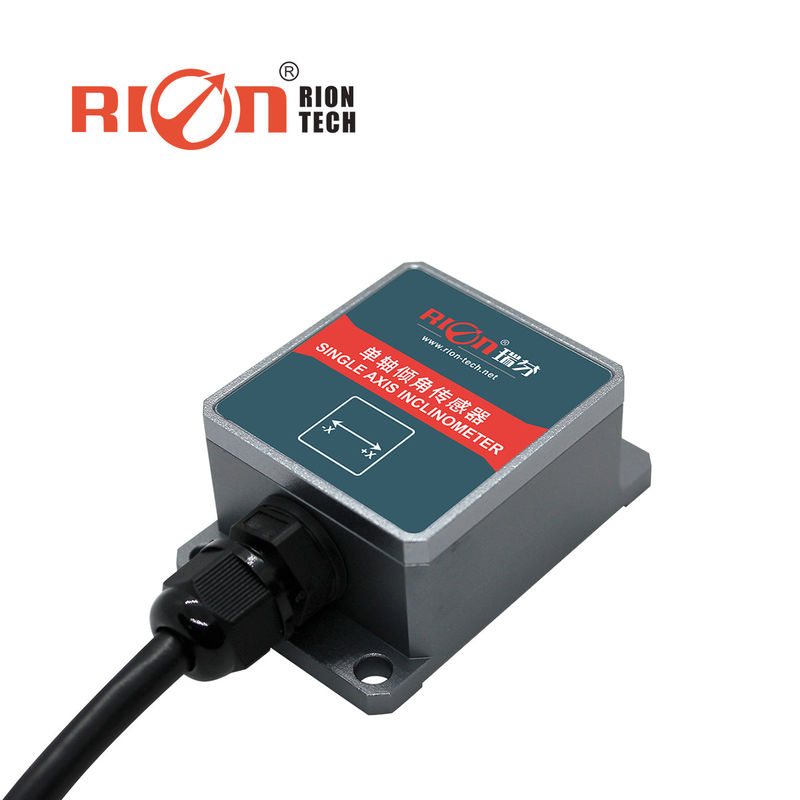

85C 1000Hz Single Axis Inclinometer Analog Level Transmitter LCA310T

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE

Model Number: LCA310T

Payment & Shipping Terms

Price: $80.00/Pieces >=1 Pieces

Packaging Details: 1pcs/box ,100pcs/ctn

Supply Ability: 30000 Piece/Pieces per Month

Get Best Price
Contact Now
Specifications
Highlight:

85C single axis Inclinometer

,

Analog Level single axis Inclinometer

,

1000Hz single axis tilt sensor

Usage:
Position Sensor
Theory:
Other
Output:
Analog SENSOR
Output:
Voltage Output
Axis:
Single Axis
Resolution:
0.05 Degree
Input Voltage:
DC 5V
Working Temp.:
-40 To +85℃
Storage Temp.:
-55 To +100℃
Weight:
90g
Waterproof:
IP67
Port:
Shenzhen
Usage:
Position Sensor
Theory:
Other
Output:
Analog SENSOR
Output:
Voltage Output
Axis:
Single Axis
Resolution:
0.05 Degree
Input Voltage:
DC 5V
Working Temp.:
-40 To +85℃
Storage Temp.:
-55 To +100℃
Weight:
90g
Waterproof:
IP67
Port:
Shenzhen
Description
85C 1000Hz Single Axis Inclinometer Analog Level Transmitter LCA310T

LCA310T Single Axis Cheap Inclinometer Analog Level Transmitter


General Description

The LCA310T series inclinometer which developed by Rion Company is a small volume, low-cost single-axis tilt sensor, the output voltage through an internal secondary linearity correction, is a linearity voltage output tilt sensor, mainly for the application market where with high-volume and cost restrictive. Built-in the latest MEMS production technology inclination unit, small size, low power consumption, and high consistency and stability of MEMS technology, working temperature up to the industry level -40 to +85, is a ultra-high cost-effective inclination modules.

This product adopts non-contact measuring principle, can real-time output the current posture inclination, simple to use, no need to find the relative variation of the two surface for mounting.Small size, strong ability of resisting external electromagnet interference,strong ability to withstand shock and vibration. It Is the ideal choice for industrial equipment and platform measuring attitude !

Features:

Single-Axis Inclinometer                    Full measuring range anyone within 360° optional

Accuracy: refer to the technical data         Wide voltage input: 9~36V

Output interface :0~5V                    Wide temperature working: -40~+85°C

IP67 protection class                      Highly anti-vibration performance >3500g

Resolution: 0.05°                         Small Volume : 55×37×24mm(customized)



Application:

Electric blind man chair leveling                   Cloud deck operating monitor

Satellite antenna positioning                         Medical equipment leveling

Car Chassis Measurement                           Four - wheeled positioning system

engineering mechanical measurement of dip angle

85C 1000Hz Single Axis Inclinometer Analog Level Transmitter LCA310T 1

Parameter



LCA310T&LCA320T CONDITION PARAMETER UNIT
Measure range   ±30 ±60 ±90 0~360 °
Measure axis   X Y X Y X Y X Y Axis
Zero output 0° output 2.5 2.5 2.5 2.5 V
Resolution   0.02 0.03 0.05 0.08 °
Measure accuracy @25℃ 0.1 0.1 0.15 0.2 °
Long term. stability   <0.5 <0.5 <0.5 <0.5 °
Zero Temp.coefficient -40~85℃ ±0.02 ±0.02 ±0.02 ±0.02 °/℃
Sensitivity temp-coeffi -40~85℃ ≤150 ≤150 ≤150 ≤150 ppm/℃
Power-on start time   0.5 0.5 0.5 0.5 S
Response time   0.02 0.02 0.02 0.02 s
Response frequency   1~20 1~20 1~20 1~20 Hz
EMC According to EN61000 and GBT17626
MTBF ≥45000 hours/times
Insulation Resistance ≥100 MΩ
Impact resistance 100g@11ms, 3 Axial Direction (Half Sinusoid)
Anti-vibration 10grms,10~1000Hz
Protection grade IP67
Cables standard configuration: 1 meter wearproof,grease proofing,wide temperature,Shielded cables 4*0.3mm2
Weight 90g (exclude cable)

* This performance parameter only lists ± 30 °, ± 60 °, ± 90 °, ± 360 ° series as a reference, for other measurement ranges, please refer to the adjacent parameters.



Measuring Directions&Fix

85C 1000Hz Single Axis Inclinometer Analog Level Transmitter LCA310T 5

Dimension

85C 1000Hz Single Axis Inclinometer Analog Level Transmitter LCA310T 7



Company and Factory

RION Technology Co., Ltd. is located in a fantastic city - Shenzhen. Our company is a high technology company that integrates research,

development, production and sale, and is mainly engaged in the sale of inclinometer sensors, digital compasses, digital dipmeters and

acceleration sensors. These products are widely used in many industrial control fields, such as automobiles, ships, airplanes, railways,

medical facilities, dam safety monitoring, oil drilling, coal mining and ocean surveying. Our company has established good business

elationships with many international famous companies. We adhere to the service guideline of "Client-centered". "Client uppermost,

credit first, service best" is our business philosophy. Our company provides accurate, efficient, civilized and complete services for clients.

Let us provide you with the best products. To save purchasing cost and time, contact us now.

85C 1000Hz Single Axis Inclinometer Analog Level Transmitter LCA310T 9



Certificates & Honor

85C 1000Hz Single Axis Inclinometer Analog Level Transmitter LCA310T 11

Warranty & after service

One year warranty is provided, during that period, we exchange and fix the malfunction item for free, and still we take care of products for its lifetime.

 Payment methods

We accept the payment by Escrow/Alipay,including Paypal,Credit Card and T/T, WU.

Shipment

We will ship your order within 7 business days after we receive the full payment.

If you choose ship by DHL/UPS/FEDEX/TNT,it will take 3-5 work days; If you choose EMS ,it will take 5-7 work days.
