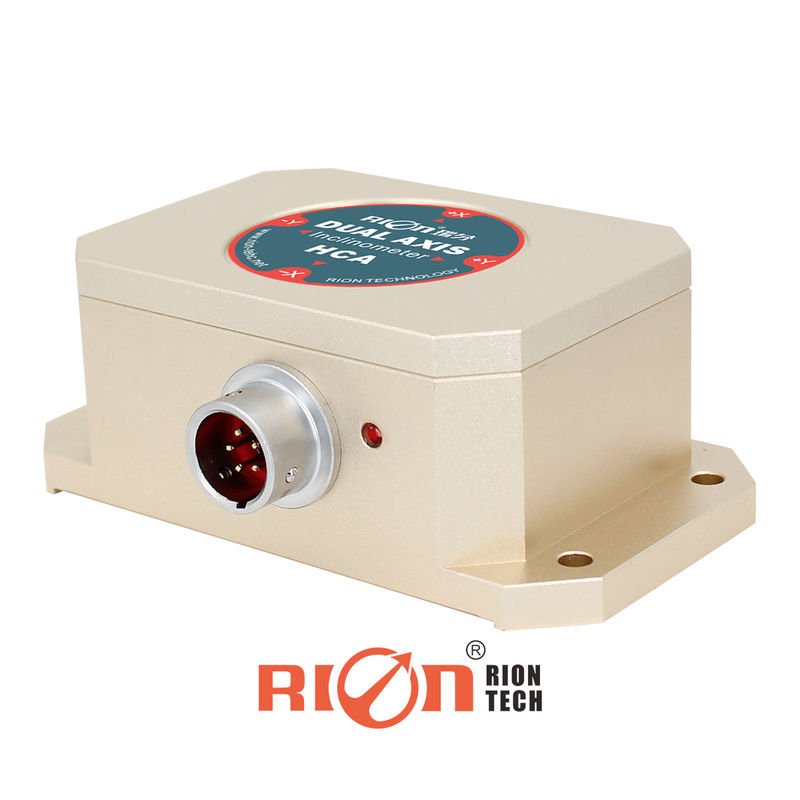

HCA526T Aluminum Alloy Voltage Power Rion Inclinometer IP67 Electronic Angle Meter

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE

Model Number: HCA526T-30

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $305.00/Pieces >=1 Pieces

Packaging Details: 1pcs inclinometer /box, 100pcs/ctn

Delivery Time: 10 days

Payment Terms: T/T, PayPal

Supply Ability: 30000 Piece/Pieces per Month inclinometers are avaliable

Get Best Price
Contact Now
Specifications
Highlight:

voltage power rion inclinometer

,

aluminum alloy rion inclinometer

,

IP67 Electronic Angle Meter

Precision:
Can Be 0.002deg
Resolution:
0.001deg
Protection:
IP67
Power Supply:
DC9-36V
Interface Port:
RS232,RS485 Or TTL Optioinal
Dimension:
90*45*29mm
Shockproof:
Shockproof>20000g
Enclosure Materials:
Full Metal Jacket (Aluminum Alloy)
Precision:
Can Be 0.002deg
Resolution:
0.001deg
Protection:
IP67
Power Supply:
DC9-36V
Interface Port:
RS232,RS485 Or TTL Optioinal
Dimension:
90*45*29mm
Shockproof:
Shockproof>20000g
Enclosure Materials:
Full Metal Jacket (Aluminum Alloy)
Description
HCA526T Aluminum Alloy Voltage Power Rion Inclinometer IP67 Electronic Angle Meter

HCA526T Aluminum Alloy Voltage Power Rion Inclinometer IP67 Electronic Angle Meter​




Description:

HCA516T/HCA526THCA526T is a high accuracy inclinometer launched by RION company, inherit the stability of the SCA series, while the accuracy be effectively improved, and the temperature drift performance with much more excellence , in addition the system with built-in high-precision 16bit A / D differential converter, meanwhile through 5 filtering algorithm, which can measure the angle of sensor output relative to the horizontal tilt and pitch tilt. The output interface RS485 / RS232 / RS422 / TTL are optional.



Features:


1:Dual-Axis inclinometer
2:DC 9-36V wide voltage power supply
3:Shockproof>20000g
4:Output RS232,RS485,TTL serial interface
5:Water-proof air-plug connector

6:Resolution0.001°
7:Wide Temperature-40-+85(Degrees Celsius)
8:Small size :90×50×34mm(customized)



Applications:


1:Railway locomotive monitoring
2:Ship navigation posture
3:Radar vehicle platform detection



Technical Data

HCA516/526T CONDITION PARAMETERS UNIT
Measure range   ±10 ±30 ±60 ±90 °
Measure axis   X / XY X / XY X / XY X / XY AXIS
Resolution   0.001 0.001 0.001 0.001 °
Measure accuracy @25℃ 0.005 0.01 0.01 0.02 °
Long term stability   0.01 0.02 0.05 0.08 °
Zero Temp.coefficient -40~85℃ 0.0005 0.0005 0.0005 0.0005 °/℃
Sensitivity temp-coeffi -40~85℃ ≤50 ≤50 ≤50 ≤100 ppm/℃
Power on time   0.5 0.5 0.5 0.5 S
Response frequency   20 20 20 20 Hz
Output rate 5Hz,15Hz,35Hz,50Hz
output signal RS232/RS485/RS422/TTL/MODBUS
EMC According to EN61000 and GBT17626
MTBF ≥98000hours/times
Insulation Resistance ≥100MΩ
Shockproof 100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration 10grms,10~1000Hz
Protection grade IP67
Cables Standard 1 meter length, wear-resistant, wide temperature, shielded cable 4 * 0.4mm2 aviation connector
Weight ≤250g(without cable)







Electronic Characteristics



PARAMETERS CONDITIONS MIN STANDARD MAX UNIT
Supply voltage standard 9 12 24 36 V
customizable   Other voltage   V
Working current No load   50   mA
Operating temp.   -40   +85
storage temp.   -40   +85



HCA526T Aluminum Alloy Voltage Power Rion Inclinometer IP67 Electronic Angle Meter 1

HCA526T Aluminum Alloy Voltage Power Rion Inclinometer IP67 Electronic Angle Meter 2

HCA526T Aluminum Alloy Voltage Power Rion Inclinometer IP67 Electronic Angle Meter 3







Order Process :

Before order pls contact us for confirm detailed informaiton such as model ,price ,lead time ...etc .



Payment ways :

T/T, WU or Paypal;



Delivery methods & Time :

DHL takes 3-5days ,  Fedex takes 2-7 days , UPS takes 3-7day , EMS takes 10-25days ;



Quality Policy :

We gurantee 1 year in free charge .



Storage :

Note usually we don't make any items in stock , samples customize time need around 3-7days .
