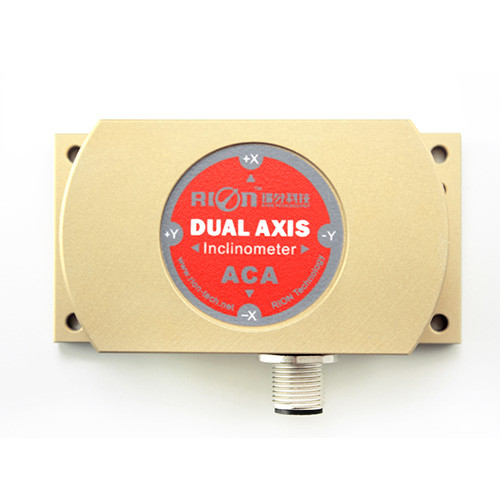

2 Axis Tilt Sensor Inclinometer Precision Inclinometer Tilt Sensor Inclinometer
General Description
ACA82*T: the maximum measuring range is± 3 °, high resolution 0.0005 °, can completely replace the traditional high-precision level meter. Digital signal transmission, matched with professional computer software, data measure and record correctly,output interface RS485, RS232, TTL, PWM or CAN 2.0B optional.Non-contact installation features make ACA826Twithsuperior system integration, convenient installation only need fix the sensor on the measured surface by screws , then can automatically calculate the object horizontal inclined angle, easy to use .With strong ability resistance to external electromagnetic interference and to withstand shock and vibration,in the domestic counterparts products with absolute competitive advantage.
Technical Data
| ACA826T | CONDITIONS | PARAMETERS | UNIT | |||
| Measure range | ±03 | ±10 | ±15 | ±30 | ° | |
| Measure axis | X/XY | X/XY | X/XY | X/XY | axis | |
| Resolution | 0.0005 | 0.0005 | 0.0005 | 0.0005 | ° | |
| Measure accuracy | @25℃ | 0.002 | 0.003 | 0.005 | 0.01 | ° |
| Long term stability | 0.01 | 0.01 | 0.02 | 0.02 | ||
| Zero temp coefficient | -40～85° | ±0.0002 | ±0.0002 | ±0.0002 | ±0.0002 | °/℃ |
| Sensitivity temp coefficient | -40～85° | ≤50 | ≤50 | ≤50 | ≤50 | ppm/℃ |
| Power on time | 0.5 | 0.5 | 0.5 | 0.5 | S | |
| Response time | 0.02 | 0.02 | 0.02 | 0.02 | S | |
| Output rate | 5Hz,15Hz,35Hz,50Hz Can be setting | |||||
| Ouput signal | RS232/RS485/RS422/TTL | |||||
| EMC | According to EN61000 and GBT17626 | |||||
| MTBF | ≥50000hours/times | |||||
| Insulation Resistance | ≥100M | |||||
| Shockproof | 100g@11ms,Times/Axis(half sinusoid) | |||||
| Anti-vibration | 10grms,10～1000Hz | |||||
| Protection grade | IP67 | |||||
| Cables |
Standard 1M length,wearproof,wide temperature, Shielded cables4*0.4mm2 air-plug connector |
|||||
| Weight | 235g(without cable ) | |||||
Features
Wide temperature working: -40~+85℃
IP67 protection class
Dual-Axis Inclinometer
Measuring Range :±1~±3° optional
Size:L92×W48×H36mm
Wide voltage input: 9~36V
Resolution: 0.0005°
Output mode 0-5V ,0.5-4.5V , 4-20mA avaliable (RS232,RS485,RS422,TTL,CAN 2.0 are optional)
Application
Underground drill posture navigation
Railway gauging rule , gauge equipment leveling
Engineering vehicles automatic leveling
Bridge & dam detection
Laser equipment position
Medical facilities angle control
Directional satellite communications antenna pitching angle measurement
Electronic Characteristics
|
Power supply |
Standard |
9 |
12,24 |
36 |
V |
|
|
customized |
|
Other voltage |
|
V |
|
Working current |
No-load |
|
50 |
|
mA |
|
Working temperature |
|
-40 |
|
+85 |
℃ |
|
Store temperature |
|
-55 |
|
+100 |
℃ |
