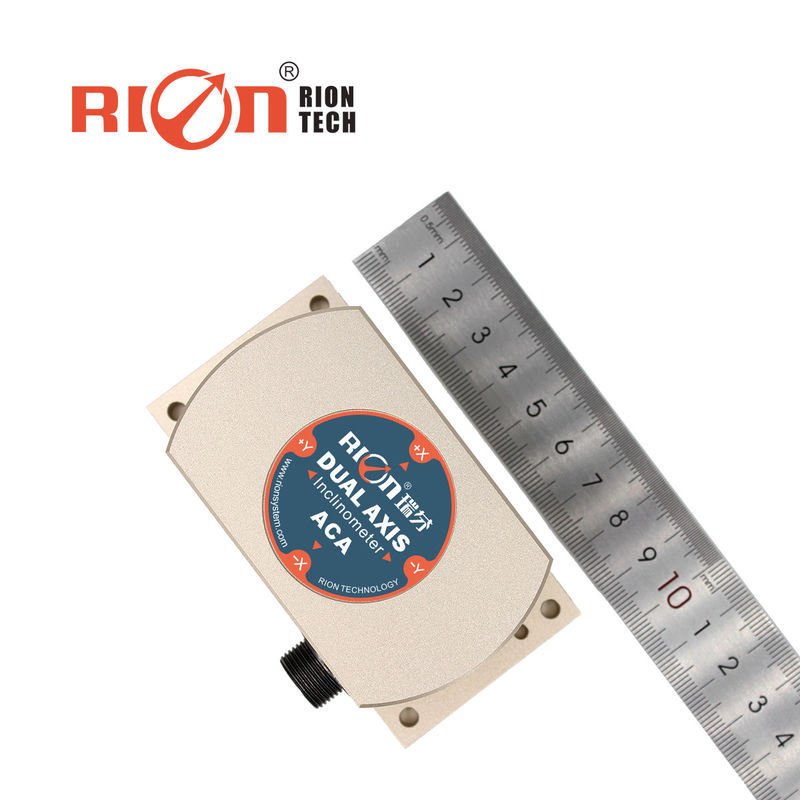

ACA626T Tilt Sensor Inclinometer Dual Axis Digital Inclinometer

ACA826T  Tilt Sensor Inclinometer Dual Axis Digital Inclinometer CANopen

General Description

ACA816T/ACA826T is a single/dual-axis CANOPEN output inclinometer with full temperature compensation and high precision specially developed by RION Technology for the field of high-precision level measurement, with a high resolution of 0.0005°, which can replace traditional spirit level. Digital signal transmission, with computer software, it can measure and record angle at the same time. The characteristics of non-contact installation make ACA816T/ACA826T highly compatible and easy to install. Just fix the sensor on the surface of the object to be measured with screws, and the inclination of the object can be automatically calculated. With strong resistance to external electromagnetic interference and strong ability to withstand shock vibration, it has a competitive advantage over counterparts.

Technical Data

Features

Wide temperature working: -40~+85℃

IP67 protection class

Dual-Axis Inclinometer

Measuring Range :±1~±30° optional

Size:L92×W48×H36mm

Wide voltage input: 9~36V

Resolution: 0.0005°

Output mode 0-5V ,0.5-4.5V , 4-20mA avaliable (RS232,RS485,RS422,TTL,CAN 2.0 are optional)

Application

Underground drill posture navigation

Railway gauging rule , gauge equipment leveling

Engineering vehicles automatic leveling

Bridge & dam detection

Laser equipment position

Medical facilities angle control

Electronic Characteristics

WORKING PRINCIPLE

Adopt imported core control unit and apply the principle of capacitive micro-pendulum. Using the principle of earth's gravity, when the tilting unit tilts, the earth's gravity will produce a gravitational component on the corresponding pendulum, and the corresponding electric capacity will change. By amplifying and filtering the electric capacity, the inclination is obtained after conversion.

ELECTRICAL CONNECTION

Order Process :

Before order pls contact us for confirm detailed informaiton such as model ,price ,lead time ...etc .

Payment ways :

T/T, WU or Paypal;

Delivery methods & Time :

DHL takes 3-5days ,  Fedex takes 2-7 days , UPS takes 3-7day , EMS takes 10-25days ;

Quality Policy :

We gurantee 1 year in free charge .

Storage :

Note usually we don't make any items in stock , samples customize time need around 3-7days .
