LCA320T 2 Axis Tilt Sensor Inclinometer Mems Motion Position Sensor Solar Tracker

LCA320T 2 Axis Tilt Sensor Inclinometer Mems Motion Position Sensor Solar Tracker

Technical Data

The LCA328T series inclinometer which developed by Rion Company is a small volume MEMS dual-axis tilt sensor, because of built-in the latest MEMS production technology inclination unit, small size, long distance transmission can up to over 2000 Meters, strong ability of resisting external electromagnet interference, can be adapted to long-term working in the industry harsh environment.
This product adopts the non-contact measuring principle, can real-time output the current attitude angle, simple to use, no need to find the relative variation of the two surface for mounting. It is a ideal choice for Industrial automation control and platform measuring attitude.

Features:

• Dual-Axis Inclinometer
• Measuring range±0°~±90° optional
• Accuracy: refer to the technical data
• Wide voltage input: 9~36V
• Output mode: 4~20mA
• Wide temperature working: -40~+85°C
• IP67 protection class
• Highly anti-vibration performance >3500g
• Resolution: 0.05°
• Small Volume : 55×37×24mm(customized)

Application:

• Electric blind man chair leveling
• Cloud deck operating monitor
• Satellite antenna positioning
• Medical equipment leveling
• Car Chassis Measurement
• Four - wheeled positioning system
• engineering mechanical measurement of dip angle

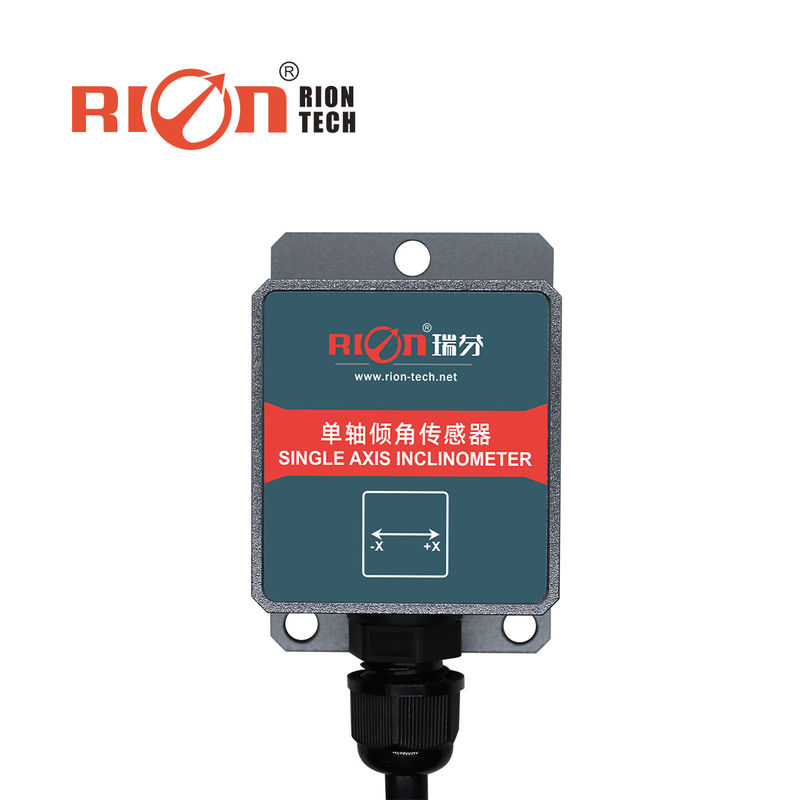

Product Show

Order Information

Dimension

Mechanical Parameters

• Connectors:1m lead cable(customized)
• Protection glass:IP67
• Enclosure material :Aluminum Oxide
• Installation :3*M4 screws

Measuring Directions&Fix

• Packaging: carton with sponge
• Delivery time: within 7 business days for common order after we receive the full payment
• Shipping time: 3-5 work days by DHL/UPS/FEDEX/TNT; 5-7 work days by EMS.

Pre-sale service

• Evaluate your application, recommend the most suitable item;
• Make you fully understand the products, usage and maitenance;
• Answer all your questions, and let you have no doubt before make any decision;
• Adjust, revise or redesign our products to consist with the application(for customized service);

Sales service

• Recommend the best payment term and shipping term for you;
• Make official quotation and PI with company Stamp;
• Keep you posted about the products producing;
• Send exactly requried products on time;
• Provide tracking NO. and inform you when products leave factory and arrive destination;

Post-sale service

• Instruct products connection, installation and application;
• if anything happen to products(barely will), engineer will evaluate the problem, solve the problem or exchange malfunction item for free, make sure you get the best solution and service.
• Keep tracking the products usage and ask for suggestion and advice.

• How to choose suitable item: bowse our webiste and choose products by catalog, or contact us directly by email, skype, TM.
• How to buy: We accept the payment by Escrow/Alipay,including Paypal,Credit Card and T/T, WU.
• How to ship: by DHL, Fedex, UPS, EMS, TNT and ARAMEX Express mainly, we have long term and reliable logistic cooperator to ensure the safety and cost-saving
• How to apply: We provide instruction manual, software and online service to instuct you to connect, install, use and maintain our products.
• What if anything happen to products: contact us, we will evaluate the problem and instruct you, exchange the wrongly purchased item or fix the malfunction item for free...till you get the best solution.
• What if no suitable item to be found: customerized service is available.
• How to cooperate: we offer technical support, products info, samples, favorable terms&condition and sales support in concerned region.
